Search › Model › JU30
JU30

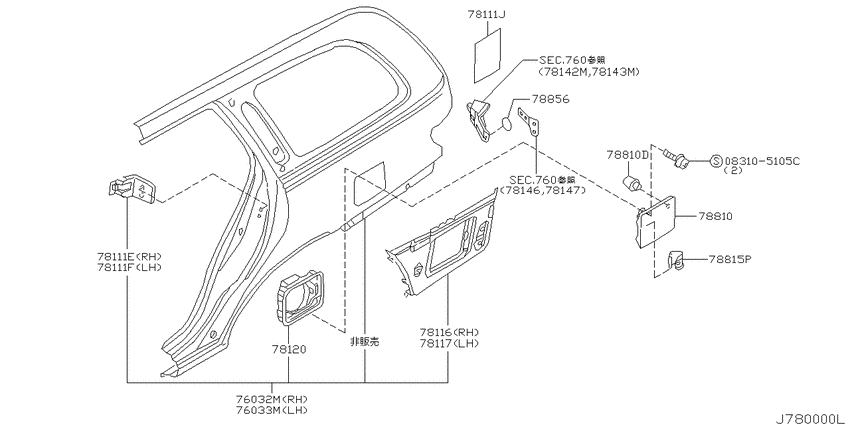

Rear fender & fitting (2001-08-01 ~ ; W) 10
| # | OEM | Part name |
|---|---|---|
| 76032 | 76030-AD530 | Body Assy-Rear Side, Outer Rh |
| 76033 | 76031-AD530 | Body Assy-Rear Side, Outer Lh |
| 78111 | 76690-AD000 | Retainer-Tapping, Striker Rh |
| 78111 | 76691-AD000 | Retainer-Tapping, Striker Lh |
| 78111 | 78882-5V000 | Insulator-Rear Fender |
| 78117 | 78119-AD000 | Extension-Rear Fender, Lh |
| 78120 | 78120-AD000 | Base-Filler Lid |
| 78810 | 78830-AD010 | Lid-Gas Filler |
| 78815 | 78836-5L310 | Spring-Fuel Filler |
| 83105105 | 08310-5105C | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08310-5105C | スクリユ-,マシン | Rear fender & fitting (2001-08-01 ~ ; W) |
| 76030-AD530 | Body Assy-Rear Side, Outer Rh | Rear fender & fitting (2001-08-01 ~ ; W) |
| 76031-AD530 | Body Assy-Rear Side, Outer Lh | Rear fender & fitting (2001-08-01 ~ ; W) |
| 76690-AD000 | Retainer-Tapping, Striker Rh | Rear fender & fitting (2001-08-01 ~ ; W) |
| 76691-AD000 | Retainer-Tapping, Striker Lh | Rear fender & fitting (2001-08-01 ~ ; W) |
| 78119-AD000 | Extension-Rear Fender, Lh | Rear fender & fitting (2001-08-01 ~ ; W) |
| 78120-AD000 | Base-Filler Lid | Rear fender & fitting (2001-08-01 ~ ; W) |
| 78830-AD010 | Lid-Gas Filler | Rear fender & fitting (2001-08-01 ~ ; W) |
| 78836-5L310 | Spring-Fuel Filler | Rear fender & fitting (2001-08-01 ~ ; W) |
| 78882-5V000 | Insulator-Rear Fender | Rear fender & fitting (2001-08-01 ~ ; W) |
