JU30

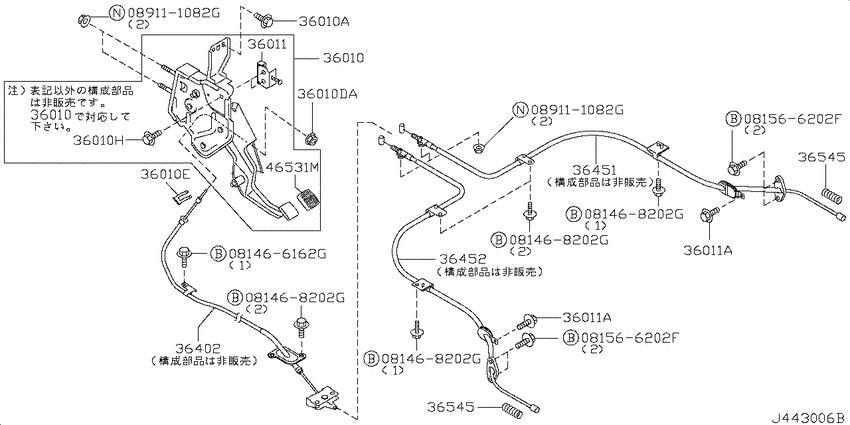

Parking brake control (2001-08-01 ~ ; 2WD.QR25DE +VQ30DE) 8
| # | OEM | Part name |
|---|---|---|
| 36010 | 36010-AE000 | Device Assy-Parking Brake Control |
| 36011 | 36011-4E100 | SWITCH ASSY-PARKING BRAKE LAMP |
| 36011 | 54459-60U06 | Bolt |
| 36402 | 36402-AE000 | Cable Assy-Parking Brake, Front |
| 36451 | 36530-AE000 | Cable Assy-Brake, Rear Rh |
| 36452 | 36531-AE000 | Cable Assy-Brake, Rear Lh |
| 36545 | 36545-08G00 | Spring-Return |
| 46531 | 46531-AE000 | Pad-Pedal |
| OEM | Part name | Category |
|---|---|---|
| 36010-AE000 | Device Assy-Parking Brake Control | Parking brake control (2001-08-01 ~ ; 2WD.QR25DE +VQ30DE) |
| 36011-4E100 | SWITCH ASSY-PARKING BRAKE LAMP | Parking brake control (2001-08-01 ~ ; 2WD.QR25DE +VQ30DE) |
| 36402-AE000 | Cable Assy-Parking Brake, Front | Parking brake control (2001-08-01 ~ ; 2WD.QR25DE +VQ30DE) |
| 36530-AE000 | Cable Assy-Brake, Rear Rh | Parking brake control (2001-08-01 ~ ; 2WD.QR25DE +VQ30DE) |
| 36531-AE000 | Cable Assy-Brake, Rear Lh | Parking brake control (2001-08-01 ~ ; 2WD.QR25DE +VQ30DE) |
| 36545-08G00 | Spring-Return | Parking brake control (2001-08-01 ~ ; 2WD.QR25DE +VQ30DE) |
| 46531-AE000 | Pad-Pedal | Parking brake control (2001-08-01 ~ ; 2WD.QR25DE +VQ30DE) |
| 54459-60U06 | Bolt | Parking brake control (2001-08-01 ~ ; 2WD.QR25DE +VQ30DE) |
