Search › Model › JU30
JU30

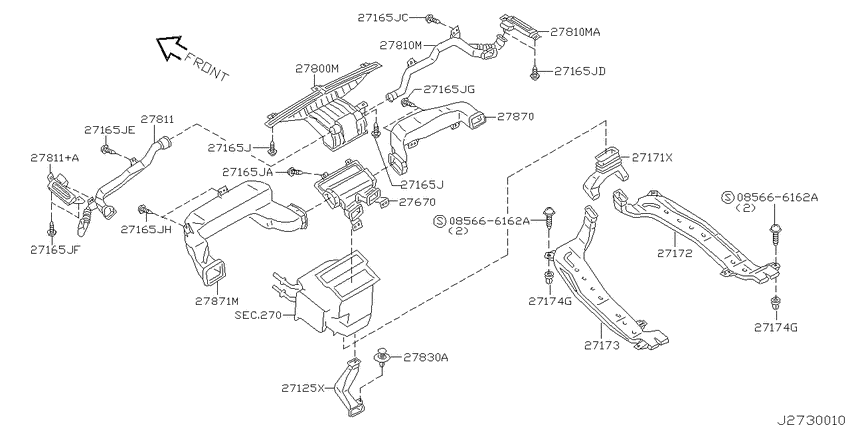

Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) 13
| # | OEM | Part name |
|---|---|---|
| 27125 | 27836-AD001 | Duct-Foot |
| 27171 | 27830-AD000 | Duct-Heater |
| 27172 | 27832-AD600 | Duct-Heater Floor, Rear Rh |
| 27173 | 27833-AD600 | Duct-Heater Floor, Rear Lh |
| 27174 | 01281-00601 | GROMMET-SCREW |
| 27670 | 27860-AD000 | Duct-Ventilator, Center |
| 27800 | 27800-AD000 | Nozzle-Defrostor |
| 27810 | 27810-AD000 | Nozzle-Side Defroster Driver |
| 27810 | 27812-AD000 | Nozzle-Side Defroster Driver |
| 27811 | 27811-AD000 | Nozzle-Side Defroster Assist |
| 27811 | 27813-AD000 | Nozzle-Side Defroster Assist |
| 27870 | 27870-AD000 | Duct-Side Ventilator |
| 27871 | 27871-AD000 | Duct-Side Ventilator |
| OEM | Part name | Category |
|---|---|---|
| 01281-00601 | GROMMET-SCREW | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27800-AD000 | Nozzle-Defrostor | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27810-AD000 | Nozzle-Side Defroster Driver | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27811-AD000 | Nozzle-Side Defroster Assist | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27812-AD000 | Nozzle-Side Defroster Driver | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27813-AD000 | Nozzle-Side Defroster Assist | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27830-AD000 | Duct-Heater | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27832-AD600 | Duct-Heater Floor, Rear Rh | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27833-AD600 | Duct-Heater Floor, Rear Lh | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27836-AD001 | Duct-Foot | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27860-AD000 | Duct-Ventilator, Center | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27870-AD000 | Duct-Side Ventilator | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
| 27871-AD000 | Duct-Side Ventilator | Nozzle & duct (2001-08-01 ~ ; ﾌﾛﾝﾄ; W) |
