Search › Model › JU30
JU30

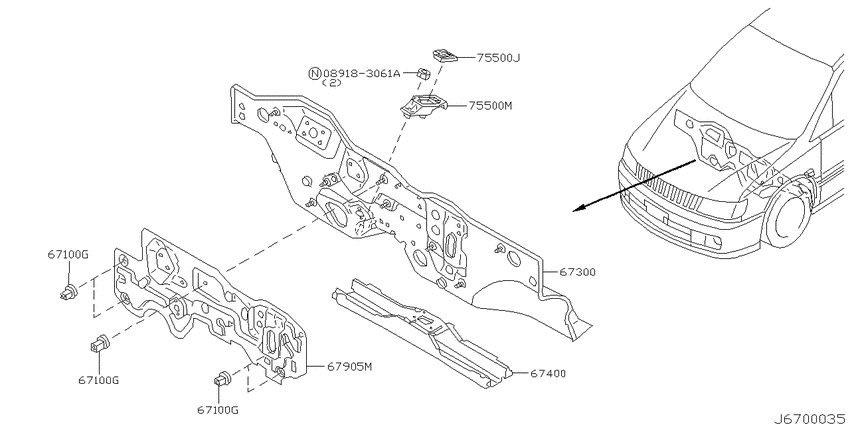

Dash panel & fitting (2001-08-01 ~ ; W) 5
| # | OEM | Part name |
|---|---|---|
| 67300 | 67300-AE030 | Dash-Lower |
| 67400 | 67400-AD000 | Member-Dash Lower Cross |
| 67905 | 67810-5V000 | Insulator-Dash Lower, Front |
| 75500 | 67845-5V000 | Cover-Footrest |
| 75500 | 67840-5V000 | Footrest Assy |
| OEM | Part name | Category |
|---|---|---|
| 67300-AE030 | Dash-Lower | Dash panel & fitting (2001-08-01 ~ ; W) |
| 67400-AD000 | Member-Dash Lower Cross | Dash panel & fitting (2001-08-01 ~ ; W) |
| 67810-5V000 | Insulator-Dash Lower, Front | Dash panel & fitting (2001-08-01 ~ ; W) |
| 67840-5V000 | Footrest Assy | Dash panel & fitting (2001-08-01 ~ ; W) |
| 67845-5V000 | Cover-Footrest | Dash panel & fitting (2001-08-01 ~ ; W) |
