Search › Model › JR50
JR50

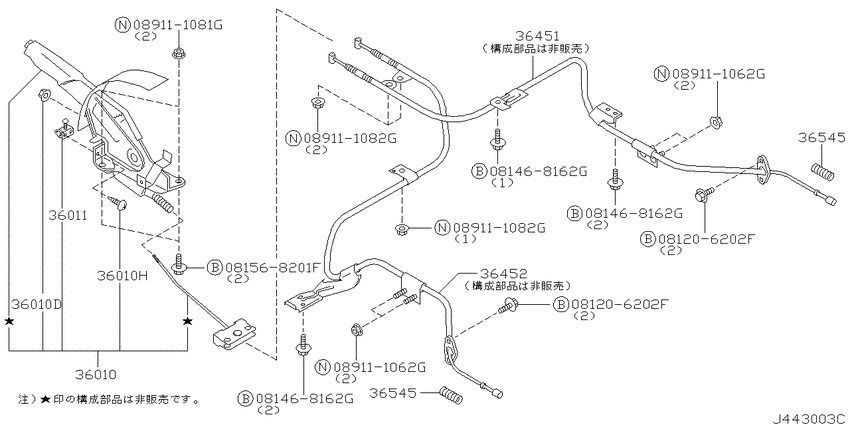

Parking brake control (1999-09-01 ~ 2001-10-01; VG33E +ZD30DDTI) 8
| # | OEM | Part name |
|---|---|---|
| 36010 | 36010-2W100 | Device Assy-Parking Brake Control |
| 36010 | 01225-00511 | NUT |
| 36011 | 36011-0W000 | Switch Assy-Parking Brake Lamp |
| 36011 | 36011-0W00A | Switch assy-parking brake lamp |
| 36451 | 36530-0W000 | Cable Assy-Brake, Rear Rh |
| 36452 | 36531-0W005 | Cable Assy-Brake, Rear Lh |
| 36545 | 36545-0W001 | Spring-Return, Parking Brake |
| 81568201 | 08156-8201F | BOLTHEXPP WW |
| OEM | Part name | Category |
|---|---|---|
| 01225-00511 | NUT | Parking brake control (1999-09-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 08156-8201F | BOLTHEXPP WW | Parking brake control (1999-09-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 36010-2W100 | Device Assy-Parking Brake Control | Parking brake control (1999-09-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 36011-0W000 | Switch Assy-Parking Brake Lamp | Parking brake control (1999-09-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 36011-0W00A | Switch assy-parking brake lamp | Parking brake control (1999-09-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 36530-0W000 | Cable Assy-Brake, Rear Rh | Parking brake control (1999-09-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 36531-0W005 | Cable Assy-Brake, Rear Lh | Parking brake control (1999-09-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 36545-0W001 | Spring-Return, Parking Brake | Parking brake control (1999-09-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 9
- Category
- 464
- Collected
- 2026-07-27
