JR50

Nissan TERRANO-REGULUS · 1996 · 4,155 parts · 464 categories

4,155 items

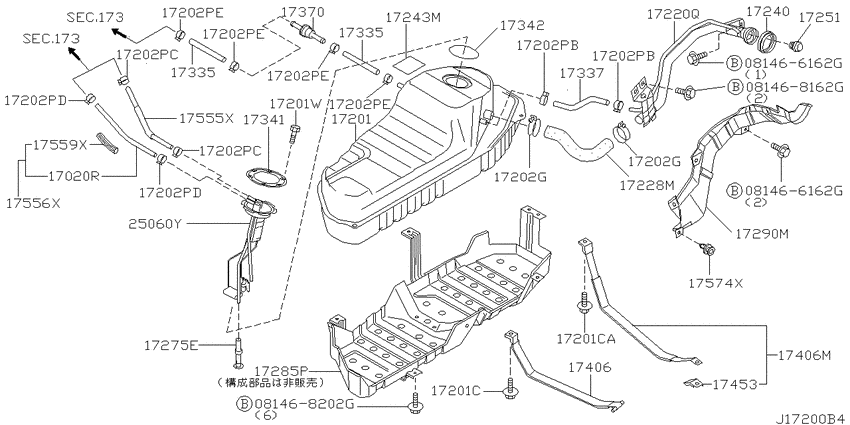

Fuel tank (2001-10-01 ~ ; ZD30DDTI) 29

#	OEM	Part name
17020	08740-28021	ホ-ス,フユ-エルフユーエルパイピング
17201	17202-2W150	Tank Assy-Fuel
17201	17202-5W250	Tank Assy-Fuel
17201	17202-5W350	Tank Assy-Fuel
17201	17202-6W150	Tank Assy-Fuel
17201	01121-06641	BOLT
17202	01555-00291	CLAMP-HOSE
17202	16439-V5000	Clamp-Hose A
17202	01558-00131	CLAMP-HOSE
17202	01558-00121	CLAMP
17202	01558-00401	CLAMP-HOSE
17220	17221-0W700	Tube Assy-Filler
17228	17228-0W010	Hose-Filler
17240	17240-50Y00	Grommet-Filler Base
17243	17243-2Y010	Shim-Fuel Tank
17251	17251-89920	Cap Assy-Filler
17275	17275-10G00	Filter Assy-Fuel Tank
17285	17285-2W100	Protector-Fuel Tank
17290	17290-0W000	Protector-Filler Tube
17290	17290-5W520	Protector-Filler Tube
17335	17335-0W020	Hose-Evaporation
17337	17337-0W020	Hose-Breather
17406	17406-0W010	Band Assy-Fuel Tank Mounting
17406	17407-0W010	Band Assy-Fuel Tank, Mounting
17453	17453-0W010	Bracket-Fuel Tank Mounting, Rear
17555	17555-0W800	Hose-Fuel
17556	17556-0W800	Hose-Fuel
17559	17559-0E600	Protector-Fuel Hose
25060	25060-2W215	Sender Unit-Fuel Gauge

OEM	Part name	Category
01121-06641	BOLT	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
01555-00291	CLAMP-HOSE	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
01558-00121	CLAMP	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
01558-00131	CLAMP-HOSE	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
01558-00401	CLAMP-HOSE	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
08740-28021	ホ-ス,フユ-エルフユーエルパイピング	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
16439-V5000	Clamp-Hose A	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17202-2W150	Tank Assy-Fuel	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17202-5W250	Tank Assy-Fuel	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17202-5W350	Tank Assy-Fuel	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17202-6W150	Tank Assy-Fuel	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17221-0W700	Tube Assy-Filler	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17228-0W010	Hose-Filler	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17240-50Y00	Grommet-Filler Base	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17243-2Y010	Shim-Fuel Tank	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17251-89920	Cap Assy-Filler	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17275-10G00	Filter Assy-Fuel Tank	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17285-2W100	Protector-Fuel Tank	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17290-0W000	Protector-Filler Tube	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17290-5W520	Protector-Filler Tube	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17335-0W020	Hose-Evaporation	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17337-0W020	Hose-Breather	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17406-0W010	Band Assy-Fuel Tank Mounting	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17407-0W010	Band Assy-Fuel Tank, Mounting	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17453-0W010	Bracket-Fuel Tank Mounting, Rear	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17555-0W800	Hose-Fuel	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17556-0W800	Hose-Fuel	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
17559-0E600	Protector-Fuel Hose	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
25060-2W215	Sender Unit-Fuel Gauge	Fuel tank (2001-10-01 ~ ; ZD30DDTI)
