Search › Model › JR50
JR50

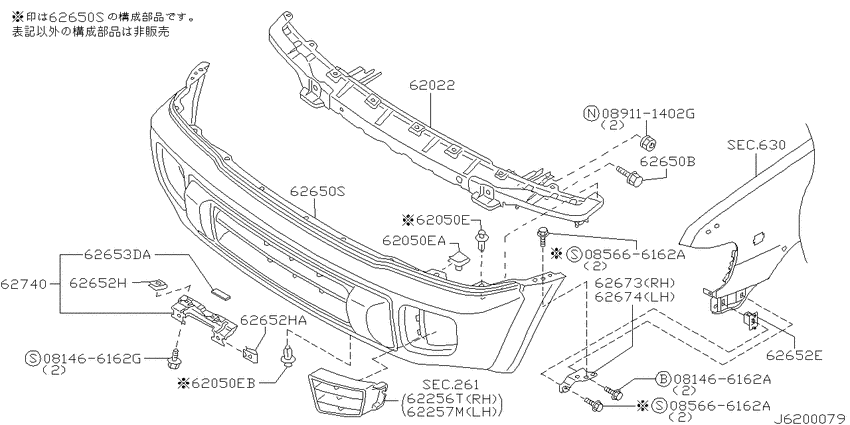

Front bumper (2001-10-01 ~ ; W) 12
| # | OEM | Part name |
|---|---|---|
| 62022 | 62030-1W300 | Reinforce-Front Bumper Center, Inner |
| 62022 | 62030-1W330 | Reinforce-Front Bumper Center, Inner |
| 62050 | 62228-1W300 | Clip |
| 62650 | 86899-50J00 | Bolt |
| 62652 | 62284-1W300 | Grommet-Screw |
| 62652 | 01241-00361 | NUT-J |
| 62652 | 01241-00501 | NUT-J |
| 62653 | 85092-D4000 | Spacer-Front Bumper |
| 62673 | 62040-1W300 | Bracket-Front Bumper Side, Rh |
| 62673 | 75188-0W000 | Bracket-Front Bumper, Rh |
| 62674 | 62041-1W300 | Bracket-Front Bumper Side, Lh |
| 62674 | 75189-0W000 | Bracket-Front Bumper, Lh |
| OEM | Part name | Category |
|---|---|---|
| 01241-00361 | NUT-J | Front bumper (2001-10-01 ~ ; W) |
| 01241-00501 | NUT-J | Front bumper (2001-10-01 ~ ; W) |
| 62030-1W300 | Reinforce-Front Bumper Center, Inner | Front bumper (2001-10-01 ~ ; W) |
| 62030-1W330 | Reinforce-Front Bumper Center, Inner | Front bumper (2001-10-01 ~ ; W) |
| 62040-1W300 | Bracket-Front Bumper Side, Rh | Front bumper (2001-10-01 ~ ; W) |
| 62041-1W300 | Bracket-Front Bumper Side, Lh | Front bumper (2001-10-01 ~ ; W) |
| 62228-1W300 | Clip | Front bumper (2001-10-01 ~ ; W) |
| 62284-1W300 | Grommet-Screw | Front bumper (2001-10-01 ~ ; W) |
| 75188-0W000 | Bracket-Front Bumper, Rh | Front bumper (2001-10-01 ~ ; W) |
| 75189-0W000 | Bracket-Front Bumper, Lh | Front bumper (2001-10-01 ~ ; W) |
| 85092-D4000 | Spacer-Front Bumper | Front bumper (2001-10-01 ~ ; W) |
| 86899-50J00 | Bolt | Front bumper (2001-10-01 ~ ; W) |
