Search › Model › JKS175

JKS175

Toyota CROWN-MAJESTA · 2001 · 4,410 parts · 189 categories
JKS175 ×

← Back to categories

4,410 items

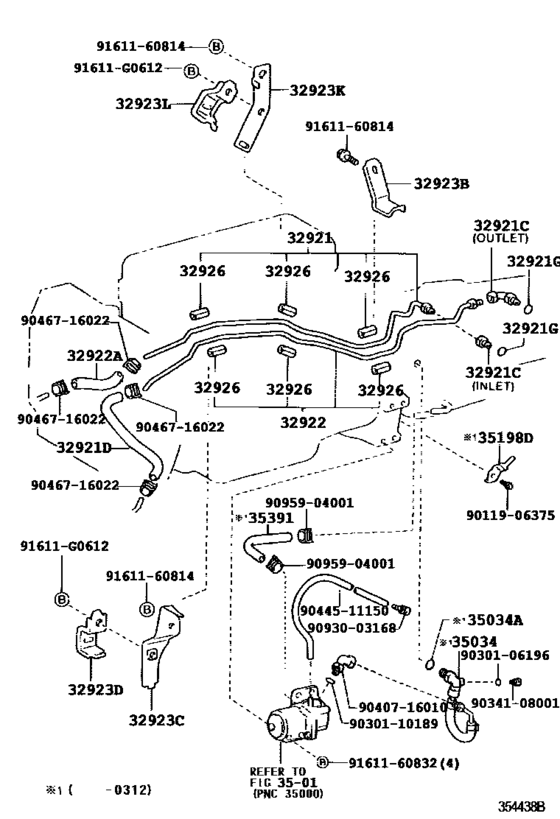

Oil Cooler & Tube (Atm) ([01.2002 - ] A650E (0201- )JKS175) 32
#OEMPart name
32921 32921-30710 Tube, Oil Cooler Inlet, No.1
32921 32921-30800 Tube, Oil Cooler Inlet, No.1
32921 90404-16029 Union(For Oil Cooler Tube)
32921 90407-16009 Union(For Oil Cooler Tube)
32921 90445-17095 Hose(For Oil Cooler Inlet)
32921 90301-11006 O Ring, Transaxle Case Elbow
32922 32922-30800 Tube, Oil Cooler Outlet, No.1
32922 32922-30840 Tube, Oil Cooler Outlet, No.1
32922 90445-17106 Hose(For Oil Cooler Inlet)
32923 32929-51010 Clamp, Automatic Transmission Oil Cooler Tube, No.1
32923 32924-30270 Clamp, Automatic Transmission Oil Cooler Tube, No.4
32923 32929-22050 Clamp, Automatic Transmission Oil Cooler Tube
32923 32923-30190 Clamp, Automatic Transmission Oil Cooler Tube, No.4
32923 32929-50020 Clamp, Automatic Transmission Oil Cooler Tube, No.1
32926 32926-30020 Cushion, Oil Cooler Tube(Atm)
35034 35034-30010 Elbow Sub-Assy, Oil Pump Delivery W/hose
35034 35034-30011 Elbow Sub-Assy, Oil Pump Delivery W/hose
35034 90301-15004 Ring, O(For Oil Cooler Tube Union)
35198 35198-30160 Bracket, Wire Harness Clamp
35391 35391-30010 Hose, Oil Pump Suction
91611 91611-G0612 Bolt
9011906375 90119-06375 Bolt (For Transmission Housing & Case Setting)
9030106196 90301-06196 O Ring, Transaxle Case, No.1
9030110189 90301-10189 Ring, O(For Oil Cooler Tube Union)
9034108001 90341-08001 Plug, Transaxle Case, No.1
9040716010 90407-16010 Union(For Oil Cooler Tube)
9044511150 90445-11150 New Genuine Part
9046716022 90467-16022 Clip(For Water Inlet Hose)
9093003168 90930-03168 Plug, Breather, No.1 (Atm)
9095904001 90959-04001 Clip, Fuel Hose
9161160814 91611-60814 Bolt
9161160832 91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front)
