JKS175

Toyota CROWN-MAJESTA · 2001 · 4,410 parts · 189 categories
JKS175 ×

← Back to categories

4,410 items

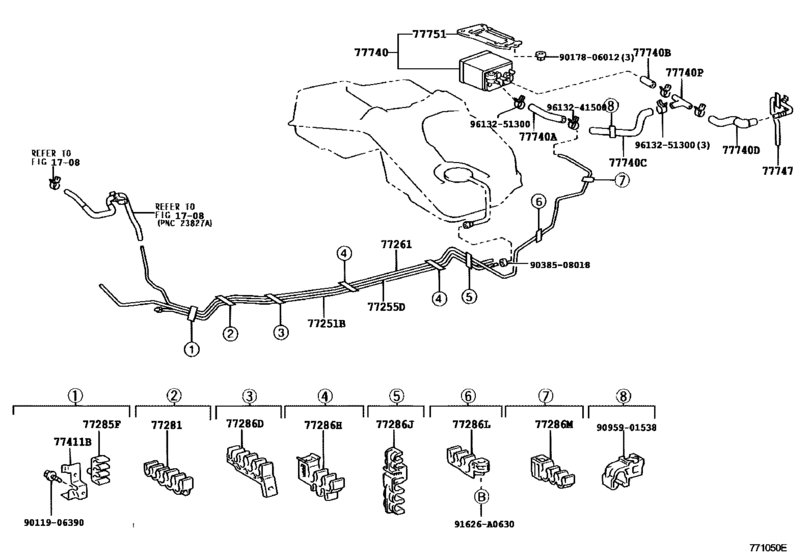

Fuel Tank & Tube ([08.2001 - ] ﾌｭｰｴﾙ ﾁｭｰﾌﾞ (0108- )JKS175) 28
#OEMPart name
77251 77251-30430 Tube, Fuel Main
77255 77255-30170 Tube, Fuel Return
77261 77261-30300 Tube Sub-Assy, Fuel Emission
77281 77281-30070 Bracket, Fuel Main Tube, No.1
77285 77286-30100 Clamp, Fuel Tube, No.1
77286 77412-30050 Clamp, Fuel Tube, No.2
77286 77285-30200 Clamp, Fuel Tube, No.3
77286 77289-51010 Clamp, Fuel Tube, No.4
77286 77298-51010 Clamp, Fuel Tube, No.5
77286 77299-51010 Clamp, Brake Tube, No.5
77411 77411-22020 Support, Fuel Tube Grommet, No.1
77740 77740-22460 Canister Assy, Charcoal
77740 23829-46290 Hose, Fuel, No.1(For Charcoal Canister)
77740 23829-46320 Hose, Fuel, No.2(For Charcoal Canister)
77740 95328-07004 Hose, Fuel Vapor Feed, No.1
77740 23829-46270 Hose, Fuel, No.1(For Charcoal Canister)
77740 23829-46280 Hose, Fuel, No.3(For Charcoal Canister)
77740 90413-07002 Way, 3(For Charcoal Canister)
77747 77747-51010 Pipe, Charcoal Canister, No.1
77751 77751-22140 Bracket, Charcoal Canister Base
77751 77751-30150 Bracket, Charcoal Canister Base
91626 91626-A0630 New Genuine Part
9011906390 90119-06390 BOLT WWASHER
9017806012 90178-06012 NUT FLANGE
9038508018 90385-08018 New Genuine Part
9095901538 90959-01538 New Genuine Part
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
