JKS175

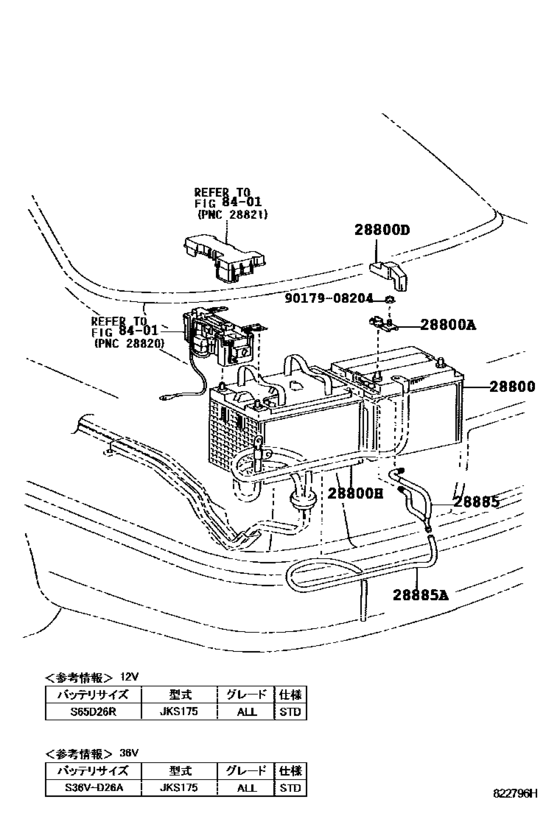

Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) 8
| # | OEM | Part name |
|---|---|---|
| 28800 | 28800-46170 | Battery |
| 28800 | 90982-05053 | Terminal, Battery Positive |
| 28800 | 82821-24010 | Cover, Connector(For Battery Terminal) |
| 28800 | 28800-46180 | Battery, No.2 (Cannot be supplied) |
| 28885 | 28885-46010 | Hose, Battery Room Ventilation |
| 28885 | 28885-46020 | Hose, Battery Room Ventilation |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 28800-46170 | Battery | Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) |
| 28800-46180 | Battery, No.2 (Cannot be supplied) | Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) |
| 28885-46010 | Hose, Battery Room Ventilation | Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) |
| 28885-46020 | Hose, Battery Room Ventilation | Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) |
| 82821-24010 | Cover, Connector(For Battery Terminal) | Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) |
| 90080-18070 | NUT, WWASHER | Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) |
| 90179-08204 | Nut | Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) |
| 90982-05053 | Terminal, Battery Positive | Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) |
