Search › Model › JCG15

JCG15

Toyota BREVIS · 2001 · 4,659 parts · 179 categories

4,659 items

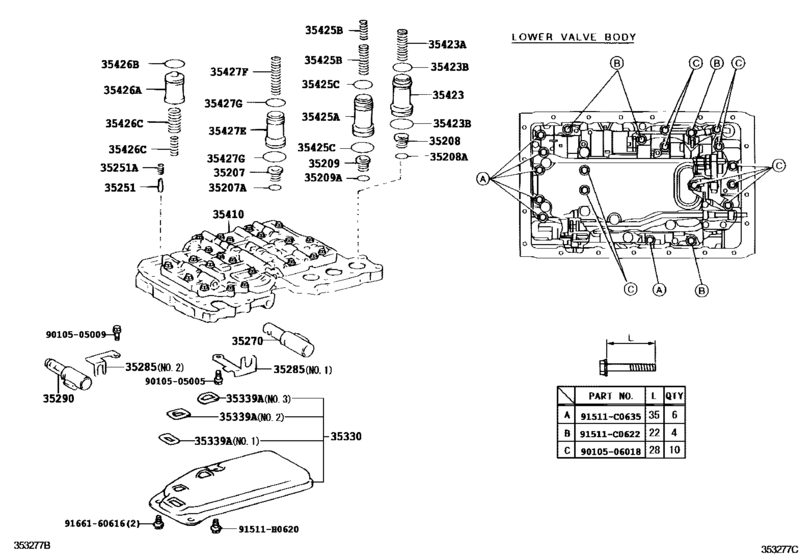

Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15) 53

#	OEM	Part name
35207	35207-22010	Spring Sub-Assy, B-0 Accumulator
35207	90521-22004	Ring, Hole Snap (For B-3 Accumulator Spring)
35208	35208-30010	Spring Sub-Assy, B-2 Accumulator
35209	35209-24010	Spring Sub-Assy, C-2 Accumulator
35251	35251-30020	Body, Check Ball
35251	90501-03005	Spring, Compression (For Check Ball Body)
35270	35270-14010	Solenoid Assy, Shift Control
35285	35285-24010	Plate, Solenoid Lock
35285	35285-24020	Plate, Solenoid Lock
35290	35290-60020	Solenoid Assy, Line Pressure Control
35330	35330-22020	Strainer Assy, Valve Body Oil
35339	35339-30080	Gasket, Oil Strainer
35339	35339-30090	Gasket, Oil Strainer, No.1
35339	35339-30100	Gasket, Oil Strainer, No.1
35410	35410-3A120	Body Assy, Transmission Valve
35423	35423-30030	Piston, B-2 Accumulator
35423	90501-24015	Spring, Compression (For B-2 Accumulator Piston)
35423	90301-23010	Ring (For Accumulator Piston No.1)
35423	90301-31010	Ring, O (For B-2 Accumulator Piston)
35425	35425-30020	Piston, C-2 Accumulator
35425	90501-22016	Spring, Compression (For C-2 Accumulator Piston)
35425	90501-25027	Spring, Compression (For C-2 Accumulator Piston)
35425	90301-25010	Ring, O(For Oil Pump Suction Pipe)
35426	35426-40010	Piston, C-0 Accumulator
35426	90301-24010	Ring, O (For C-0 Accumulator Piston)
35426	90501-22008	Spring, Compression (For C-2 Accumulator Piston)
35426	90501-23073	Spring, Compression (For C-0 Accumulator Piston)
35427	35427-30040	Piston, B-0 Accumulator
35427	90501-23095	Spring, Compression (For C-2 Accumulator Piston)
35427	90301-20008	Ring, O (For C-2 Accumulator Piston)
35427	90301-26011	Ring, O (For C-3 Accumulator Piston)
35481	35481-24010	Clamp, Valve Body Wire Harness
35517	35517-30010	Plate, Transmission Wire Lock
82125	82125-22260	Wire, Transmission
82125	82125-30440	Wire, Transmission
85420	35250-30040	Solenoid Assy, Transmission
85420	35250-30050	Solenoid Assy, Transmission
85420	35250-30060	Solenoid Assy, Transmission
85420	35250-30070	Solenoid Assy, Transmission
85420	85420-22150	Solenoid Assy, Transmission
85420	85420-22170	Solenoid Assy, Transmission
85420	90301-06004	Ring, O No.3(For Transmission Solenoid)
91511	91511-C0622	Strainer Bolt
91511	91511-C0635	BOLT, FLANGE
91511	91511-H0620	Bolt (For Transaxle Case Upper Cover)
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
3548230040	35482-30040	Valve, Governor
3548230060	35482-30060	Valve, Governor
9010505005	90105-05005	Bolt (For Transfer Relief Valve Plate)
9010505009	90105-05009	New Genuine Part
9010506018	90105-06018	Bolt (For Throttle Valve Cam Set)
9011906180	90119-06180	Bolt (For Stator Shaft)
9166160616	91661-60616	BOLT

OEM	Part name	Category
35207-22010	Spring Sub-Assy, B-0 Accumulator	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35208-30010	Spring Sub-Assy, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35209-24010	Spring Sub-Assy, C-2 Accumulator	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35250-30040	Solenoid Assy, Transmission	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35250-30050	Solenoid Assy, Transmission	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35250-30060	Solenoid Assy, Transmission	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35250-30070	Solenoid Assy, Transmission	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35251-30020	Body, Check Ball	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35270-14010	Solenoid Assy, Shift Control	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35285-24010	Plate, Solenoid Lock	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35285-24020	Plate, Solenoid Lock	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35290-60020	Solenoid Assy, Line Pressure Control	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35330-22020	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35339-30080	Gasket, Oil Strainer	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35339-30090	Gasket, Oil Strainer, No.1	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35339-30100	Gasket, Oil Strainer, No.1	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35410-3A120	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35423-30030	Piston, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35425-30020	Piston, C-2 Accumulator	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35426-40010	Piston, C-0 Accumulator	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35427-30040	Piston, B-0 Accumulator	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35481-24010	Clamp, Valve Body Wire Harness	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35482-30040	Valve, Governor	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35482-30060	Valve, Governor	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
35517-30010	Plate, Transmission Wire Lock	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
82125-22260	Wire, Transmission	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
82125-30440	Wire, Transmission	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
85420-22150	Solenoid Assy, Transmission	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
85420-22170	Solenoid Assy, Transmission	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90105-05005	Bolt (For Transfer Relief Valve Plate)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90105-05009	New Genuine Part	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90105-06018	Bolt (For Throttle Valve Cam Set)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90119-06180	Bolt (For Stator Shaft)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90301-06004	Ring, O No.3(For Transmission Solenoid)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90301-20008	Ring, O (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90301-23010	Ring (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90301-24010	Ring, O (For C-0 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90301-25010	Ring, O(For Oil Pump Suction Pipe)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90301-26011	Ring, O (For C-3 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90301-31010	Ring, O (For B-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90501-03005	Spring, Compression (For Check Ball Body)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90501-22008	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90501-22016	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90501-23073	Spring, Compression (For C-0 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90501-23095	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90501-24015	Spring, Compression (For B-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90501-25027	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90521-22004	Ring, Hole Snap (For B-3 Accumulator Spring)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
91511-C0622	Strainer Bolt	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
91511-C0635	BOLT, FLANGE	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
91511-H0620	Bolt (For Transaxle Case Upper Cover)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
91611-B0616	Bolt(For Transaxle Case Receiver)	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
91661-60616	BOLT	Valve Body & Oil Strainer (Atm) ([10.2001 - ] A340H (0110- )JCG15)
