Search › Model › JCG15

JCG15

Toyota BREVIS · 2001 · 4,659 parts · 179 categories

← Back to categories

4,659 items

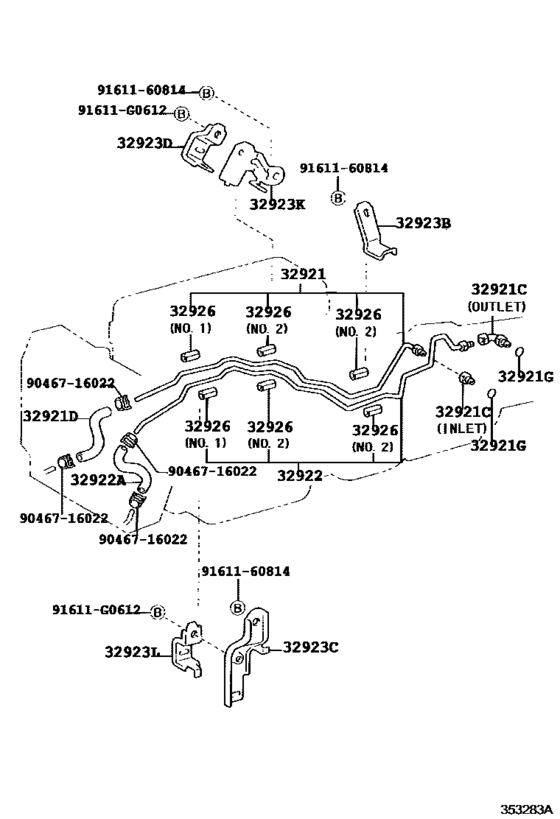

Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15) 17

#	OEM	Part name
32921	32921-51020	Tube, Oil Cooler Inlet, No.1
32921	90407-16009	Union(For Oil Cooler Tube)
32921	90407-16012	Union(For Oil Cooler Tube)
32921	90445-17100	Hose, Oil Cooler Tube
32921	90301-11006	O Ring, Transaxle Case Elbow
32922	32922-51020	Tube, Oil Cooler Outlet, No.1
32922	90445-17166	Hose(For Oil Cooler Outlet)
32923	32929-51010	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32923	32924-51010	Clamp, Automatic Transmission Oil Cooler Tube, No.4
32923	32929-22050	Clamp, Automatic Transmission Oil Cooler Tube
32923	32924-30220	Clamp, Automatic Transmission Oil Cooler Tube, No.2
32923	32929-50020	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32926	32926-30030	Cushion, Oil Cooler Tube(Atm)
91611	91611-G0612	Bolt
9046716022	90467-16022	Clip(For Water Inlet Hose)
9161160814	91611-60814	Bolt

OEM	Part name	Category
32921-51020	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
32922-51020	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
32924-30220	Clamp, Automatic Transmission Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
32924-51010	Clamp, Automatic Transmission Oil Cooler Tube, No.4	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
32926-30030	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
32929-22050	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
32929-50020	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
32929-51010	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90407-16012	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90445-17100	Hose, Oil Cooler Tube	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90445-17166	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
91611-60814	Bolt	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([10.2001 - ] A340H (0110- )JCG15)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 179
Collected: 2026-08-02
