Search › Model › JCG15

JCG15

Toyota BREVIS · 2001 · 4,659 parts · 179 categories

4,659 items

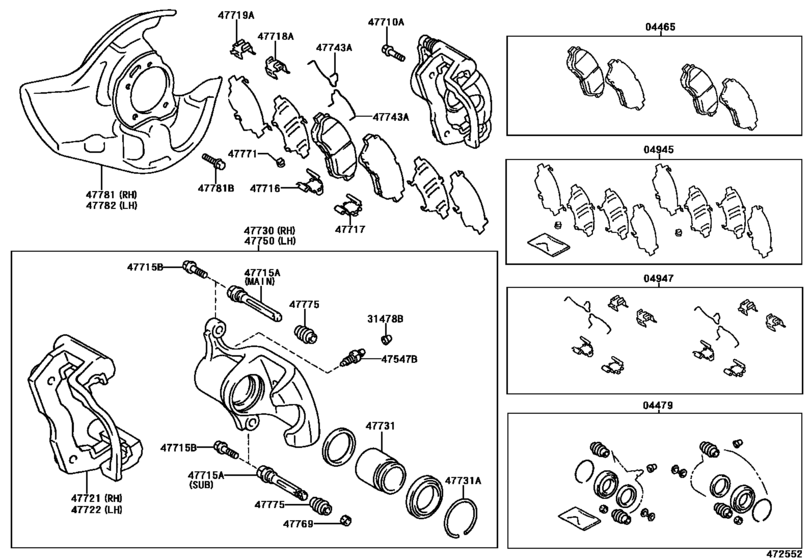

Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15) 30

#	OEM	Part name
4465	04465-30080	Pad Kit, Disc Brake, Front
4479	04478-30250	Cylinder Kit, Disc Brake, Front
4479	04478-53020	Cylinder Kit, Disc Brake, Front
4479	04479-30151	Cylinder Kit, Disc Brake, Front
4945	04945-33020	Shim Kit, Anti Squeal, Front
4947	04947-30100	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-27030	Plug, Bleeder(For Front Disc Brake)
47710	90105-12228	Bolt (For Transfer & Transaxle Setting)
47715	47715-22070	Pin, Front Disc Brake Cylinder Slide
47715	47715-22080	Pin, Front Disc Brake Cylinder Slide
47715	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47716	47716-30160	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47716-30170	Plate, Pad Support, No.2(For Front Disc Brake)
47718	47717-30050	Plate, Pad Support, No.3(For Front Disc Brake)
47719	47717-30060	Plate, Pad Support, No.4(For Front Disc Brake)
47721	47721-50010	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-50010	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-30360	Cylinder Assy, Front Disc Brake, Rh
47731	47731-30110	Piston, Front Disc Brake
47731	90520-86005	Ring, Set(For Front Disc Brake Piston)
47743	47743-50010	Spring, Anti-Squeal(For Front Disc Brake)
47750	47750-30360	Cylinder Assy, Disc Brake, Lh
47769	47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-50010	Plate, Pad Wear Indicator, No.1
47775	47775-30070	Boot, Bush Dust(For Front Disc Brake)
47775	47775-50010	Boot, Bush Dust(For Front Disc Brake)
47781	47781-22180	Cover, Disc Brake Dust, Front Rh
47781	90148-60028	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782	47782-22180	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-30080	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
04478-30250	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
04478-53020	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
04479-30151	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
04945-33020	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
04947-30100	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47547-27030	Plug, Bleeder(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47715-22070	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47715-22080	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47716-30160	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47716-30170	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47717-30050	Plate, Pad Support, No.3(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47717-30060	Plate, Pad Support, No.4(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47721-50010	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47722-50010	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47730-30360	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47731-30110	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47743-50010	Spring, Anti-Squeal(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47750-30360	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47771-50010	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47775-30070	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47775-50010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47781-22180	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
47782-22180	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
90105-12228	Bolt (For Transfer & Transaxle Setting)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
90148-60028	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
90520-86005	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([08.2001 - ] (0108- )JCG15)
