Search › Model › JCG15
JCG15

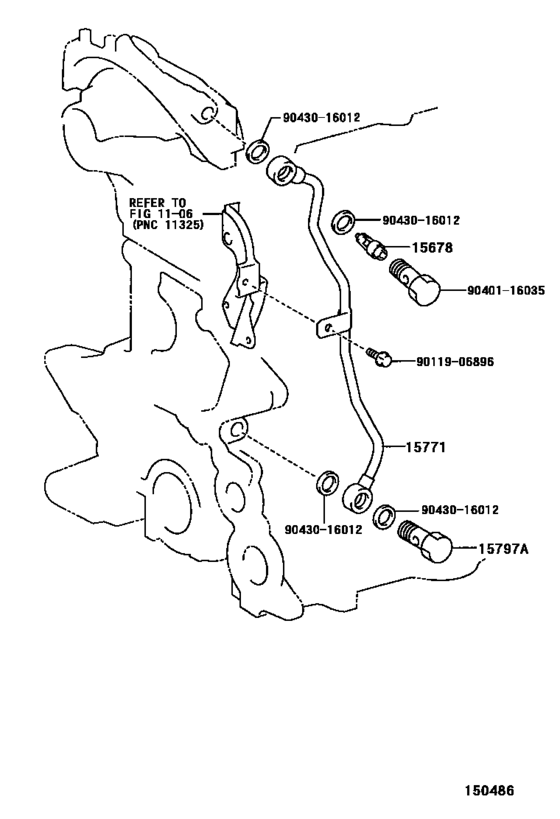

Engine Oil Cooler ([05.2001 - ] (0105- )1JZFSE) 7
| # | OEM | Part name |
|---|---|---|
| 15678 | 15678-46020 | Filter, Oil Control Valve |
| 15771 | 15771-46050 | Pipe, Oil, No.1 |
| 15797 | 15797-46010 | Bolt, Oil Check Valve |
| 9011906896 | 90119-06896 | New Genuine Part |
| 9011906896 | 90119-06493 | BOLT WITH WASHER |
| 9040116035 | 90401-16035 | Union(For Oil Pipe) |
| 9043016012 | 90430-16012 | Gasket, W/head Taper Screw Plug |
| OEM | Part name | Category |
|---|---|---|
| 15678-46020 | Filter, Oil Control Valve | Engine Oil Cooler ([05.2001 - ] (0105- )1JZFSE) |
| 15771-46050 | Pipe, Oil, No.1 | Engine Oil Cooler ([05.2001 - ] (0105- )1JZFSE) |
| 15797-46010 | Bolt, Oil Check Valve | Engine Oil Cooler ([05.2001 - ] (0105- )1JZFSE) |
| 90119-06493 | BOLT WITH WASHER | Engine Oil Cooler ([05.2001 - ] (0105- )1JZFSE) |
| 90119-06896 | New Genuine Part | Engine Oil Cooler ([05.2001 - ] (0105- )1JZFSE) |
| 90401-16035 | Union(For Oil Pipe) | Engine Oil Cooler ([05.2001 - ] (0105- )1JZFSE) |
| 90430-16012 | Gasket, W/head Taper Screw Plug | Engine Oil Cooler ([05.2001 - ] (0105- )1JZFSE) |
