Search › Model › JCG15

JCG15

Toyota BREVIS · 2001 · 4,659 parts · 179 categories

4,659 items

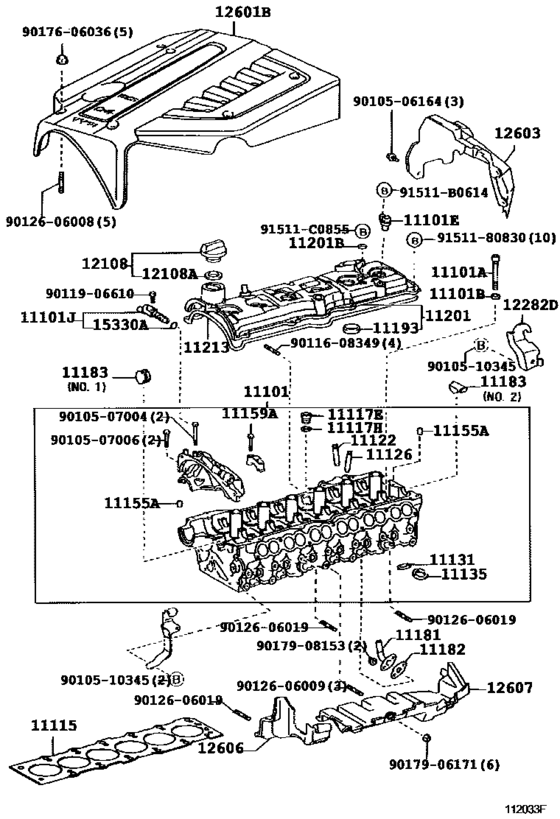

Cylinder Head ([05.2001 - ] (0105- )1JZFSE) 52

#	OEM	Part name
11101	11101-49446	Head Sub-Assy, Cylinder
11101	90910-02102	Bolt(For Cylinder Head Set)
11101	90201-11034	Washer, Plate(For Cylinder Head Set)
11101	90919-05026	Sensor, Position
11101	15330-46020	Valve Assy, Camshaft Timing Oil Control
11101	15330-46021	Valve Assy, Camshaft Timing Oil Control
11115	11115-46060	Gasket, Cylinder Head
11117	90341-24010	Plug, W/head Taper Screw, No.1
11117	90430-24010	Gasket(For Cylinder Head Screw Plug)
11122	11122-46020	Bush, Intake Valve Guide
11122	11123-46020	Bush, Intake Valve Guide
11126	11122-16010	Bush, Intake Valve Guide
11126	11122-16020	Bush, Intake Valve Guide
11126	11123-16010	Bush, Intake Valve Guide
11131	11131-46040	Seat, Intake Valve
11131	11132-46040	Seat, Intake Valve
11135	11135-46040	Seat, Exhaust Valve
11135	11136-46040	Seat, Exhaust Valve
11155	90253-11021	Pin, Ring
11159	90119-07009	Bolt(For Camshaft Housing Set)
11181	11181-46040	Plate, Cylinder Head, Rear
11182	11182-46020	Gasket, Cylinder Head Rear Plate
11183	11183-46010	Plug, Semicircular
11183	11183-50020	Plug, Semicircular
11193	11193-46010	Gasket, Spark Plug Tube
11201	11201-46080	Cover Sub-Assy, Cylinder Head
11201	90210-07008	Washer, Seal(For Cylinder Head Cover)
11213	11213-46040	Gasket, Cylinder Head Cover
12108	12180-21010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
12282	12282-46060	Hanger, Engine, No.2
12601	12601-46050	Cover Sub-Assy, Engine, No.1
12603	12603-46021	Cover Sub-Assy, Engine, Rear
12606	12606-46012	Cover Sub-Assy, Engine, Lh No.1
12607	12607-46013	Cover Sub-Assy, Engine, Lh No.2
15330	90099-14137	Ring, O(For Cam Timing Oil Control Valve)
91511	91511-B0614	BOLT, FLANGE
91511	91511-C0855	New Genuine Part
9010506164	90105-06164	New Genuine Part
9010507004	90105-07004	Bolt(For Head To Camshaft Bearing Cap)
9010507006	90105-07006	Bolt(For Head To Camshaft Bearing Cap)
9010510345	90105-10345	New Genuine Part
9011608349	90116-08349	New Genuine Part
9011906610	90119-06610	New Genuine Part
9011906610	90119-06493	BOLT WITH WASHER
9012606008	90126-06008	STUD HEX LOBULAR
9012606009	90126-06009	STUD HEX LOBULAR
9012606019	90126-06019	New Genuine Part
9017606036	90176-06036	NUT
9017906171	90179-06171	Nut, Cap(For Cylinder Head Cover)
9017908153	90179-08153	NUT
9151180830	91511-80830	Bolt(For Alternator)

OEM	Part name	Category
11101-49446	Head Sub-Assy, Cylinder	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11115-46060	Gasket, Cylinder Head	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11122-16010	Bush, Intake Valve Guide	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11122-16020	Bush, Intake Valve Guide	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11122-46020	Bush, Intake Valve Guide	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11123-16010	Bush, Intake Valve Guide	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11123-46020	Bush, Intake Valve Guide	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11131-46040	Seat, Intake Valve	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11132-46040	Seat, Intake Valve	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11135-46040	Seat, Exhaust Valve	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11136-46040	Seat, Exhaust Valve	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11181-46040	Plate, Cylinder Head, Rear	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11182-46020	Gasket, Cylinder Head Rear Plate	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11183-46010	Plug, Semicircular	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11183-50020	Plug, Semicircular	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11193-46010	Gasket, Spark Plug Tube	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11201-46080	Cover Sub-Assy, Cylinder Head	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
11213-46040	Gasket, Cylinder Head Cover	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
12180-21010	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
12282-46060	Hanger, Engine, No.2	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
12601-46050	Cover Sub-Assy, Engine, No.1	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
12603-46021	Cover Sub-Assy, Engine, Rear	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
12606-46012	Cover Sub-Assy, Engine, Lh No.1	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
12607-46013	Cover Sub-Assy, Engine, Lh No.2	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
15330-46020	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
15330-46021	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90099-14137	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90105-06164	New Genuine Part	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90105-07004	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90105-07006	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90105-10345	New Genuine Part	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90116-08349	New Genuine Part	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90119-06493	BOLT WITH WASHER	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90119-06610	New Genuine Part	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90119-07009	Bolt(For Camshaft Housing Set)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90126-06008	STUD HEX LOBULAR	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90126-06009	STUD HEX LOBULAR	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90126-06019	New Genuine Part	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90176-06036	NUT	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90179-06171	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90179-08153	NUT	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90201-11034	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90210-07008	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90253-11021	Pin, Ring	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90341-24010	Plug, W/head Taper Screw, No.1	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90430-24010	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90910-02102	Bolt(For Cylinder Head Set)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
90919-05026	Sensor, Position	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
91511-80830	Bolt(For Alternator)	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
91511-B0614	BOLT, FLANGE	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
91511-C0855	New Genuine Part	Cylinder Head ([05.2001 - ] (0105- )1JZFSE)
