JCG10

Toyota BREVIS · 2001 · 4,644 parts · 173 categories

← Back to categories

4,644 items

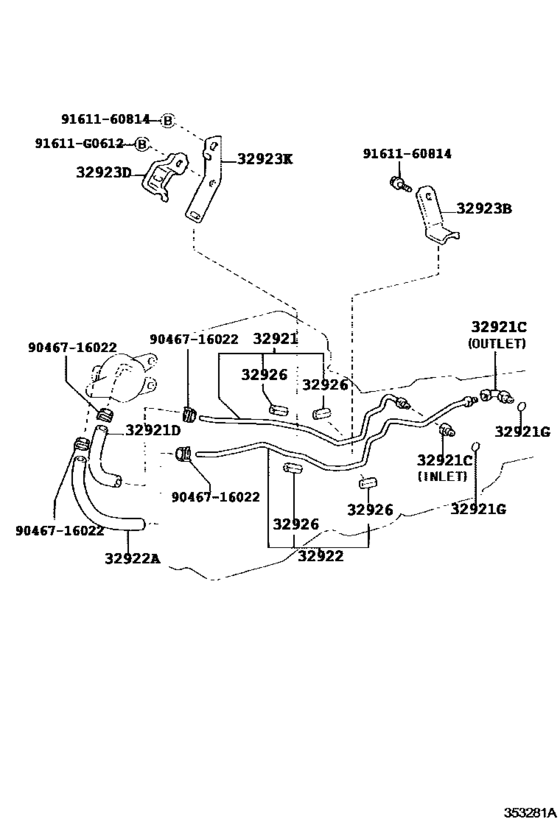

Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10) 19

#	OEM	Part name
32921	32921-22590	Tube, Oil Cooler Inlet, No.1
32921	32921-51030	Tube, Oil Cooler Inlet, No.1
32921	32921-53080	Tube, Oil Cooler Inlet, No.1
32921	90404-16029	Union(For Oil Cooler Tube)
32921	90407-16009	Union(For Oil Cooler Tube)
32921	90445-17069	Hose, Oil Cooler Water Outlet
32921	90445-17101	Hose, Oil Cooler Water Outlet
32921	90301-11006	O Ring, Transaxle Case Elbow
32922	32922-22790	Tube, Oil Cooler Outlet, No.1
32922	32922-53060	Tube, Oil Cooler Outlet, No.1
32922	90445-17083	Hose(For Oil Cooler Inlet)
32922	90445-17096	Hose, Oil Cooler Water Outlet
32923	32929-51010	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32923	32929-50020	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32923	32923-30190	Clamp, Automatic Transmission Oil Cooler Tube, No.4
32926	32926-30030	Cushion, Oil Cooler Tube(Atm)
91611	91611-G0612	Bolt
9046716022	90467-16022	Clip(For Water Inlet Hose)
9161160814	91611-60814	Bolt

OEM	Part name	Category
32921-22590	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
32921-51030	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
32921-53080	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
32922-22790	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
32922-53060	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
32923-30190	Clamp, Automatic Transmission Oil Cooler Tube, No.4	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
32926-30030	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
32929-50020	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
32929-51010	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
90404-16029	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
90445-17069	Hose, Oil Cooler Water Outlet	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
90445-17083	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
90445-17096	Hose, Oil Cooler Water Outlet	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
90445-17101	Hose, Oil Cooler Water Outlet	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
91611-60814	Bolt	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([05.2001 - ] A650E (0105- )JCG10)
