JCE10

Toyota ALTEZZA-ALTEZZA-GITA · 2001 · 4,536 parts · 184 categories
JCE10 ×

← Back to categories

4,536 items

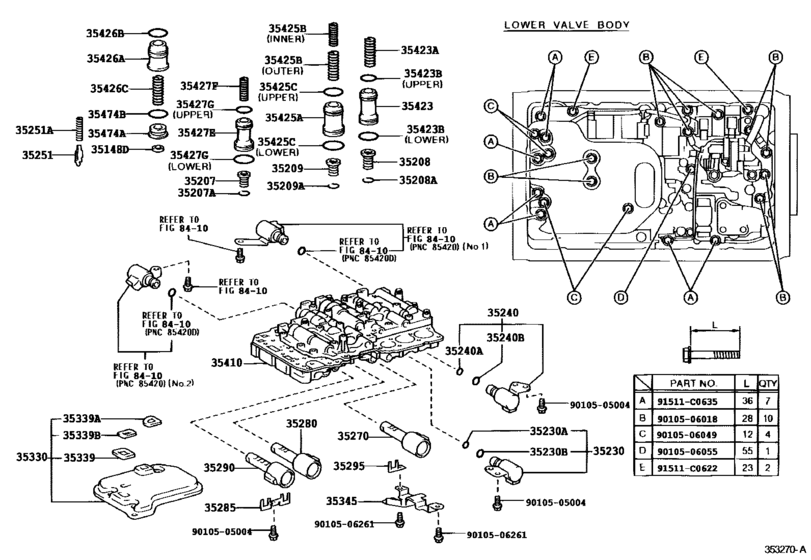

Valve Body & Oil Strainer (Atm) ([05.2001 - ] A650E (0105- )JCE10,SXE10..ATM) 48
#OEMPart name
35148 35148-16010 Gasket (For Automatic Transfer Case)
35207 35207-22010 Spring Sub-Assy, B-0 Accumulator
35207 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35208 35208-22010 Spring Sub-Assy, B-2 Accumulator
35209 35209-24010 Spring Sub-Assy, C-2 Accumulator
35230 35230-30010 Solenoid Assy, Transmission 3Way, No.2
35230 90301-08013 Ring, O, No.1(For Transmission 3Way Solenoid No.2)
35230 90301-12013 Ring, O, No.2 (For Transmission 3Way Solenoid No.2)
35240 35240-30020 Solenoid Assy, Automatic Transmission 3Way
35240 90301-08011 Ring, O, No.1 (For Transmission 3Way Solenoid)
35240 90301-12014 Ring, O, No.2 (For Transmission 3Way Solenoid)
35251 35251-30020 Body, Check Ball
35251 90501-03005 Spring, Compression (For Check Ball Body)
35270 35270-30030 Solenoid Assy, Shift Control
35280 35280-30040 Solenoid Assy, Lock Up Control
35285 35285-30060 Plate, Solenoid Lock
35290 35290-30040 Solenoid Assy, Line Pressure Control
35295 35295-30010 Plate, Solenoid Lock, No.2
35330 35330-30070 Strainer Assy, Valve Body Oil
35339 35339-30080 Gasket, Oil Strainer
35339 35339-30090 Gasket, Oil Strainer, No.1
35339 35339-30100 Gasket, Oil Strainer, No.1
35345 35345-50010 Plate, Oil Guide
35410 35410-53030 Body Assy, Transmission Valve
35423 35423-30030 Piston, B-2 Accumulator
35423 90501-25052 Spring, Compression (For B-2 Accumulator Piston)
35423 90301-23010 Ring (For Accumulator Piston No.1)
35423 90301-31010 Ring, O (For B-2 Accumulator Piston)
35425 35425-40010 Piston, C-2 Accumulator
35425 90501-23152 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-28035 Spring, Compression (For C-2 Accumulator Piston)
35425 90903-01001 Ring, O (For C-2 Accumulator Piston)
35425 90903-01003 Ring, O (For C-2 Accumulator Piston)
35426 35426-50010 Piston, C-0 Accumulator
35426 90301-24010 Ring, O (For C-0 Accumulator Piston)
35426 90501-21021 Spring, Compression (For C-0 Accumulator Piston)
35427 35427-30040 Piston, B-0 Accumulator
35427 90905-01025 Spring, Compression (For B-0 Accumulator Piston)
35427 90301-20008 Ring, O (For C-2 Accumulator Piston)
35427 90301-26011 Ring, O (For C-3 Accumulator Piston)
35474 35474-30010 Cover, Accumulator
91511 91511-C0622 Strainer Bolt
91511 91511-C0635 BOLT, FLANGE
9010505004 90105-05004 New Genuine Part
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9010506055 90105-06055 New Genuine Part
9010506261 90105-06261 Bolt(For Manual Detent Spring)
