JCE10

Toyota ALTEZZA-ALTEZZA-GITA · 2001 · 4,536 parts · 184 categories

4,536 items

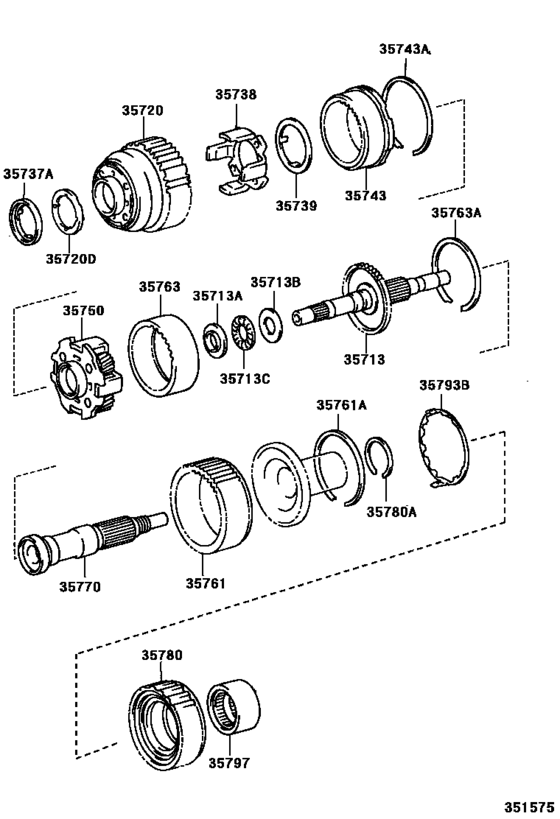

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM) 22

#	OEM	Part name
35713	35713-30060	Shaft, Intermediate
35713	35789-30290	Race, Thrust Bearing, No.1 (For Intermediate Shaft)
35713	35789-30300	Race, Thrust Bearing, No.2 (For Intermediate Shaft)
35713	90374-25008	Bearing, Thrust Needle Roller (For Intermediate Shaft)
35720	35720-30120	Gear Assy, Front Planetary
35720	90209-57001	Washer (For Front Planetary Gear)
35737	35737-30040	Washer, Planetary Carrier Thrust, No.1
35738	35738-30050	Washer, Planetary Carrier Thrust, No.2
35739	35739-30050	Washer, Planetary Carrier Thrust, No.3
35743	35743-30040	Gear, Front Planetary Ring
35743	90520-99022	Ring, Shaft Snap (For Front Planetary Ring Gear)
35750	35750-30020	Gear Assy, Center Planetary
35761	35761-30030	Gear, Rear Planetary Ring
35761	90520-99021	Ring, Hole Snap (For Rear Planetary Ring Gear)
35763	35763-30010	Gear, Center Planetary Ring
35763	90520-96004	Ring, Snap(For Center Planetary Ring Gear)
35770	35770-30050	Shaft Assy, Output
35780	35780-30010	Clutch Assy, 1 Way No.2
35780	35780-50010	Clutch Assy, 1 Way No.2
35780	90520-45011	Ring, Snap (For 1 Way Clutch)
35793	35793-50030	Retainer, 1 Way Clutch
35797	35797-30040	Race, 1 Way Clutch Inner

OEM	Part name	Category
35713-30060	Shaft, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35720-30120	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35737-30040	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35738-30050	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35739-30050	Washer, Planetary Carrier Thrust, No.3	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35743-30040	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35750-30020	Gear Assy, Center Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35761-30030	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35763-30010	Gear, Center Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35770-30050	Shaft Assy, Output	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35780-30010	Clutch Assy, 1 Way No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35780-50010	Clutch Assy, 1 Way No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35789-30290	Race, Thrust Bearing, No.1 (For Intermediate Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35789-30300	Race, Thrust Bearing, No.2 (For Intermediate Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35793-50030	Retainer, 1 Way Clutch	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
35797-30040	Race, 1 Way Clutch Inner	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
90209-57001	Washer (For Front Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
90374-25008	Bearing, Thrust Needle Roller (For Intermediate Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
90520-45011	Ring, Snap (For 1 Way Clutch)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
90520-96004	Ring, Snap(For Center Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
90520-99021	Ring, Hole Snap (For Rear Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
90520-99022	Ring, Shaft Snap (For Front Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1998 - ] A650E (9810- )JCE10,SXE10..ATM)
