JCE10

Toyota ALTEZZA-ALTEZZA-GITA · 2001 · 4,536 parts · 184 categories

← Back to categories

4,536 items

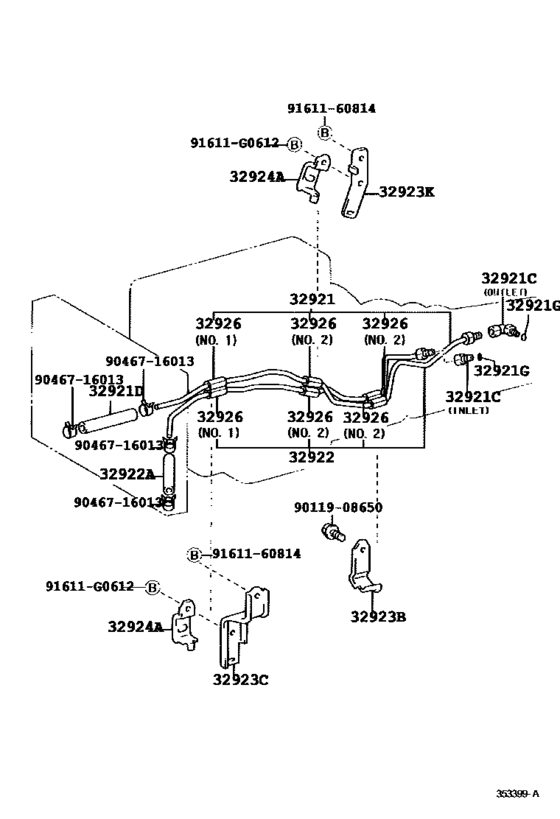

Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10) 19

#	OEM	Part name
32921	32921-53060	Tube, Oil Cooler Inlet, No.1
32921	32921-53040	Tube, Oil Cooler Inlet, No.1
32921	90404-16029	Union(For Oil Cooler Tube)
32921	90407-16009	Union(For Oil Cooler Tube)
32921	90445-17110	Hose(For Oil Cooler Inlet)
32921	90301-11006	O Ring, Transaxle Case Elbow
32922	32922-53070	Tube, Oil Cooler Outlet, No.1
32922	90445-17127	Hose(For Oil Cooler Outlet)
32923	32929-30150	Clamp, Automatic Transmission Oil Cooler Tube
32923	32924-30240	Clamp, Automatic Transmission Oil Cooler Tube
32923	32923-30220	Clamp, Automatic Transmission Oil Cooler Tube, No.2
32924	32929-50020	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32926	32926-30030	Cushion, Oil Cooler Tube(Atm)
91611	91611-G0612	Bolt
9011908650	90119-08650	New Genuine Part
9046716013	90467-16013	Clip(For Oil Return Hose)
9046716013	90467-16022	Clip(For Water Inlet Hose)
9161160814	91611-60814	Bolt

OEM	Part name	Category
32921-53040	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
32921-53060	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
32922-53070	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
32923-30220	Clamp, Automatic Transmission Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
32924-30240	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
32926-30030	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
32929-30150	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
32929-50020	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
90119-08650	New Genuine Part	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
90404-16029	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
90445-17110	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
90445-17127	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
91611-60814	Bolt	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([06.2001 - ] A650E (0106- )JCE10)
