JCE10

Toyota ALTEZZA-ALTEZZA-GITA · 2001 · 4,536 parts · 184 categories

← Back to categories

4,536 items

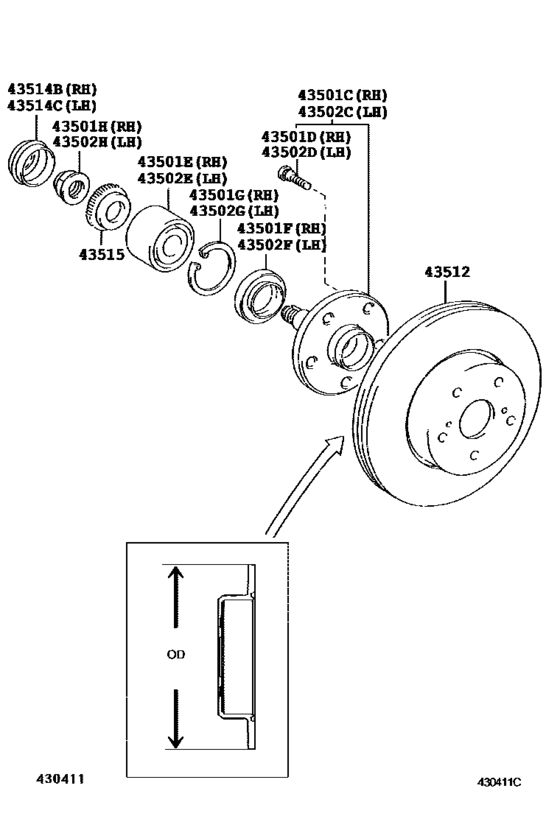

Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10) 12

#	OEM	Part name
43501	43502-22080	Hub Sub-Assy, Front Axle, Rh
43501	90942-02070	Bolt, Hub
43501	90942-02049	Bolt, Hub
43501	90942-02082	Bolt, Hub
43501	90363-32035	Bearing (For Front Axle Hub)
43501	90311-48013	Seal, Oil (For Front Axle Hub)
43501	90521-77001	Ring, Hole Snap (For Front Axle Hub)
43501	90179-22022	Nut (For Front Axle Shaft)
43512	43512-50100	Disc, Front
43512	43512-53010	Disc, Front
43514	43514-53010	Cap, Front Axle Hub Grease, Rh
43515	43515-22030	Rotor, Skid Control, Front

OEM	Part name	Category
43502-22080	Hub Sub-Assy, Front Axle, Rh	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
43512-50100	Disc, Front	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
43512-53010	Disc, Front	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
43514-53010	Cap, Front Axle Hub Grease, Rh	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
43515-22030	Rotor, Skid Control, Front	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
90179-22022	Nut (For Front Axle Shaft)	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
90311-48013	Seal, Oil (For Front Axle Hub)	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
90363-32035	Bearing (For Front Axle Hub)	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
90521-77001	Ring, Hole Snap (For Front Axle Hub)	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
90942-02049	Bolt, Hub	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
90942-02070	Bolt, Hub	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
90942-02082	Bolt, Hub	Front Axle Hub ([10.1998 - ] (9810- )GXE10,JCE10,SXE10)
