Search › Model › JC636
JC636

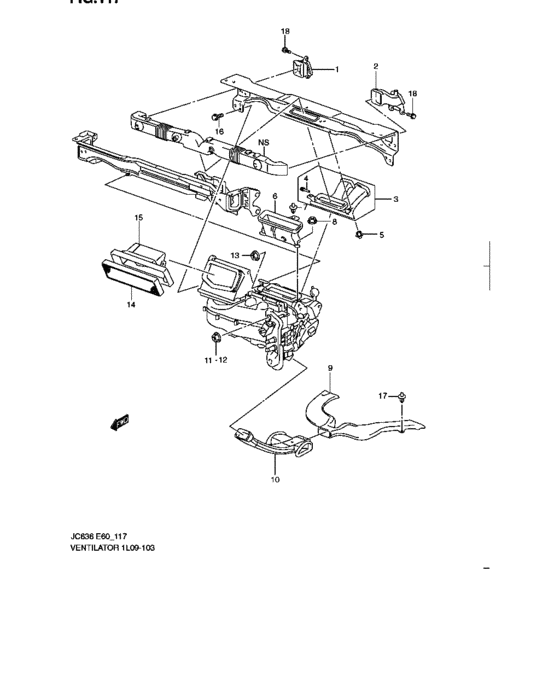

Ventilator (VENTILATOR) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 74641-78J00-000 | DUCT,SIDE,R |
| 2 | 74642-78J00-000 | DUCT,SIDE,L |
| 3 | 74624-78J01-000 | DUCT,I/P CTR AIR OUTLET |
| 4 | 74625-78J00-000 | Sensor,duct air temp |
| 4 | 74625-78J01-000 | SENSOR,DUCT AIR TEMP |
| 5 | 74629-78J00-000 | CLIP |
| 6 | 73652-78J00-000 | DUCT,DEFROSTER OUTLET |
| 8 | 22911-78J00-000 | NUT |
| 9 | 74652-78J00-000 | DUCT,FLOOR RR AIR OUTLET RR |
| 10 | 74651-78J01-000 | DUCT,FLOOR RR AIR OUTLET |
| 11 | 56118-78J00-000 | NUT |
| 12 | 74108-78J00-000 | WASHER |
| 14 | 95861-78J11-000 | FILTER,AIR |
| 15 | 74211-78J00-000 | HOUSING,AIR FILTER |
| 16 | 73219-78J00-000 | Bolt |
| 18 | 71719-78J00-000 | BOLT,M4.2X1.41X20 |
| OEM | Part name | Category |
|---|---|---|
| 22911-78J00-000 | NUT | Ventilator (VENTILATOR) |
| 56118-78J00-000 | NUT | Ventilator (VENTILATOR) |
| 71719-78J00-000 | BOLT,M4.2X1.41X20 | Ventilator (VENTILATOR) |
| 73219-78J00-000 | Bolt | Ventilator (VENTILATOR) |
| 73652-78J00-000 | DUCT,DEFROSTER OUTLET | Ventilator (VENTILATOR) |
| 74108-78J00-000 | WASHER | Ventilator (VENTILATOR) |
| 74211-78J00-000 | HOUSING,AIR FILTER | Ventilator (VENTILATOR) |
| 74624-78J01-000 | DUCT,I/P CTR AIR OUTLET | Ventilator (VENTILATOR) |
| 74625-78J00-000 | Sensor,duct air temp | Ventilator (VENTILATOR) |
| 74625-78J01-000 | SENSOR,DUCT AIR TEMP | Ventilator (VENTILATOR) |
| 74629-78J00-000 | CLIP | Ventilator (VENTILATOR) |
| 74641-78J00-000 | DUCT,SIDE,R | Ventilator (VENTILATOR) |
| 74642-78J00-000 | DUCT,SIDE,L | Ventilator (VENTILATOR) |
| 74651-78J01-000 | DUCT,FLOOR RR AIR OUTLET | Ventilator (VENTILATOR) |
| 74652-78J00-000 | DUCT,FLOOR RR AIR OUTLET RR | Ventilator (VENTILATOR) |
| 95861-78J11-000 | FILTER,AIR | Ventilator (VENTILATOR) |
