JC636

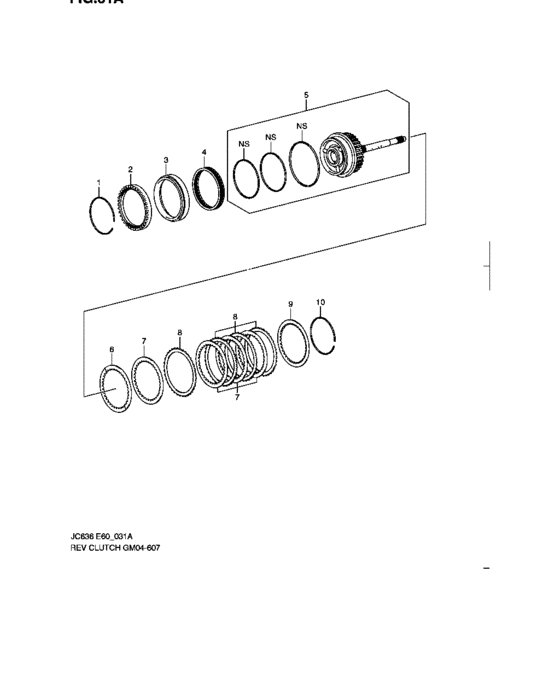

Rev clutch (09 MODEL) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 26614-78J20-000 | RING,SPEED SENSOR RELUCTOR |
| 2 | 26621-78J20-000 | WHEEL,SPEED SENSOR RELUCTOR |
| 3 | 26631-78J20-000 | PISTON,3-5-REV CLUTCH |
| 4 | 26641-78J20-000 | Spring, 3-5 rev clu |
| 4 | 26641-78J21-000 | SPRING,3-5-REV CLUTCH |
| 5 | 24111-78J20-000 | HOUSING,3-5-REV&4-5-6 CLUTCH |
| 6 | 26622-78J20-000 | Plate, 3-5 rev clu - Wave |
| 7 | 26611-78J20-000 | PLATE,3-5-REV CLUTCH STEEL |
| 8 | 26612-78J20-000 | PLATE,3-5-REV CLUTCH FRICTION |
| 9 | 26623-78J20-000 | PLATE,3-5-REV CLUTCH BKG |
| 10 | 26692-78J20-000 | RING,3-5-REV CLUTCH BK PLATE |
| OEM | Part name | Category |
|---|---|---|
| 24111-78J20-000 | HOUSING,3-5-REV&4-5-6 CLUTCH | Rev clutch (09 MODEL) |
| 26611-78J20-000 | PLATE,3-5-REV CLUTCH STEEL | Rev clutch (09 MODEL) |
| 26612-78J20-000 | PLATE,3-5-REV CLUTCH FRICTION | Rev clutch (09 MODEL) |
| 26614-78J20-000 | RING,SPEED SENSOR RELUCTOR | Rev clutch (09 MODEL) |
| 26621-78J20-000 | WHEEL,SPEED SENSOR RELUCTOR | Rev clutch (09 MODEL) |
| 26622-78J20-000 | Plate, 3-5 rev clu - Wave | Rev clutch (09 MODEL) |
| 26623-78J20-000 | PLATE,3-5-REV CLUTCH BKG | Rev clutch (09 MODEL) |
| 26631-78J20-000 | PISTON,3-5-REV CLUTCH | Rev clutch (09 MODEL) |
| 26641-78J20-000 | Spring, 3-5 rev clu | Rev clutch (09 MODEL) |
| 26641-78J21-000 | SPRING,3-5-REV CLUTCH | Rev clutch (09 MODEL) |
| 26692-78J20-000 | RING,3-5-REV CLUTCH BK PLATE | Rev clutch (09 MODEL) |
