JC636

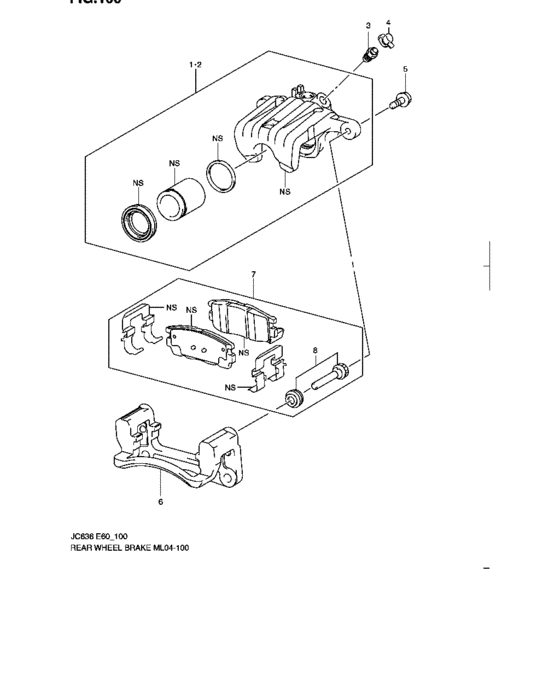

Rear wheel brake (REAR WHEEL BRAKE) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 55410-78J00-000 | CALIPER,RR BRAKE,R |
| 2 | 55420-78J00-000 | CALIPER,RR BRAKE,L |
| 3 | 55151-78J01-000 | PLUG,BLEEDER |
| 4 | 55156-78J10-000 | Cap, bleeder plug |
| 4 | 55156-78J11-000 | CAP,BLEEDER PLUG |
| 5 | 55206-78J01-000 | BOLT,PIN |
| 6 | 55431-78J00-000 | BRACKET,RR BRAKE |
| 6 | 55431-78J01-000 | BRACKET,RR BRAKE |
| 7 | 55800-78J01-000 | Pad set,disc brake |
| 7 | 55800-78J03-000 | PAD SET,DISC BRAKE |
| 8 | 55490-78J00-000 | PIN SET,SLIDE |
| OEM | Part name | Category |
|---|---|---|
| 55151-78J01-000 | PLUG,BLEEDER | Rear wheel brake (REAR WHEEL BRAKE) |
| 55156-78J10-000 | Cap, bleeder plug | Rear wheel brake (REAR WHEEL BRAKE) |
| 55156-78J11-000 | CAP,BLEEDER PLUG | Rear wheel brake (REAR WHEEL BRAKE) |
| 55206-78J01-000 | BOLT,PIN | Rear wheel brake (REAR WHEEL BRAKE) |
| 55410-78J00-000 | CALIPER,RR BRAKE,R | Rear wheel brake (REAR WHEEL BRAKE) |
| 55420-78J00-000 | CALIPER,RR BRAKE,L | Rear wheel brake (REAR WHEEL BRAKE) |
| 55431-78J00-000 | BRACKET,RR BRAKE | Rear wheel brake (REAR WHEEL BRAKE) |
| 55431-78J01-000 | BRACKET,RR BRAKE | Rear wheel brake (REAR WHEEL BRAKE) |
| 55490-78J00-000 | PIN SET,SLIDE | Rear wheel brake (REAR WHEEL BRAKE) |
| 55800-78J01-000 | Pad set,disc brake | Rear wheel brake (REAR WHEEL BRAKE) |
| 55800-78J03-000 | PAD SET,DISC BRAKE | Rear wheel brake (REAR WHEEL BRAKE) |
