JC636

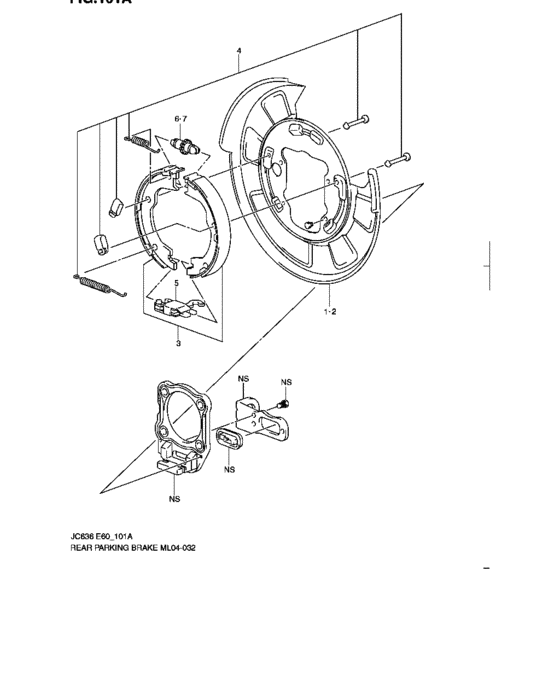

Rear parking brake (REAR PARKING BRAKE) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 54510-78J01-000 | PLATE ASSY,PARKING BRAKE,R |
| 2 | 54520-78J01-000 | PLATE ASSY,PARKING BRAKE,L |
| 3 | 54600-78J00-000 | SHOE SET,PARKING BRAKE |
| 4 | 54610-78J00-000 | SPRING SET,PARKING BRAKE |
| 5 | 54620-78J00-000 | LEVER SET,PARKING BRAKE |
| 6 | 54630-78J00-000 | ADJUSTER ASSY,PARKING BRAKE,R |
| 7 | 54640-78J00-000 | ADJUSTER ASSY,PARKING BRAKE,L |
| OEM | Part name | Category |
|---|---|---|
| 54510-78J01-000 | PLATE ASSY,PARKING BRAKE,R | Rear parking brake (REAR PARKING BRAKE) |
| 54520-78J01-000 | PLATE ASSY,PARKING BRAKE,L | Rear parking brake (REAR PARKING BRAKE) |
| 54600-78J00-000 | SHOE SET,PARKING BRAKE | Rear parking brake (REAR PARKING BRAKE) |
| 54610-78J00-000 | SPRING SET,PARKING BRAKE | Rear parking brake (REAR PARKING BRAKE) |
| 54620-78J00-000 | LEVER SET,PARKING BRAKE | Rear parking brake (REAR PARKING BRAKE) |
| 54630-78J00-000 | ADJUSTER ASSY,PARKING BRAKE,R | Rear parking brake (REAR PARKING BRAKE) |
| 54640-78J00-000 | ADJUSTER ASSY,PARKING BRAKE,L | Rear parking brake (REAR PARKING BRAKE) |
