Search › Model › JC636
JC636

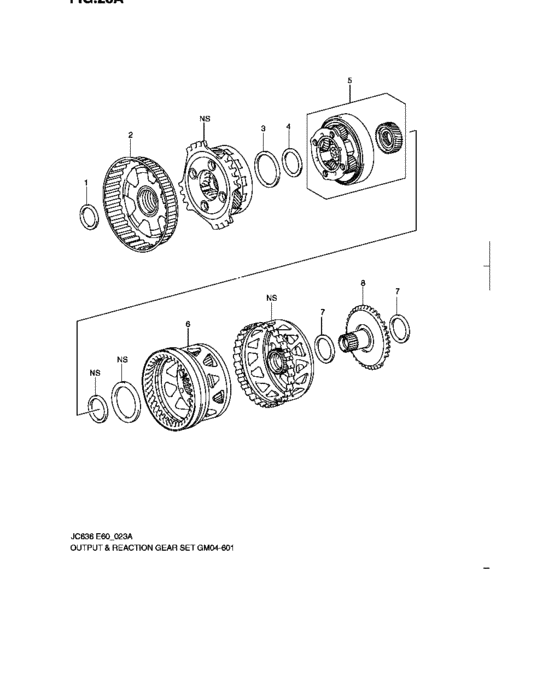

Output gear (09 MODEL) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 24931-78J20-000 | BEARING,THRUST |
| 2 | 24930-78J20-000 | Gear, reduction sun |
| 3 | 24932-78J20-000 | BEARING,INPUT CARRIER THRUST |
| 4 | 24933-78J21-000 | BEARING,SUN GEAR THRUST |
| 5 | 24935-78J20-000 | CARRIER,INPUT |
| 6 | 24934-78J20-000 | CARRIER,OUTPUT |
| 8 | 24936-78J20-000 | HUB,OUTPUT CARRIER |
| OEM | Part name | Category |
|---|---|---|
| 24930-78J20-000 | Gear, reduction sun | Output gear (09 MODEL) |
| 24931-78J20-000 | BEARING,THRUST | Output gear (09 MODEL) |
| 24932-78J20-000 | BEARING,INPUT CARRIER THRUST | Output gear (09 MODEL) |
| 24933-78J21-000 | BEARING,SUN GEAR THRUST | Output gear (09 MODEL) |
| 24934-78J20-000 | CARRIER,OUTPUT | Output gear (09 MODEL) |
| 24935-78J20-000 | CARRIER,INPUT | Output gear (09 MODEL) |
| 24936-78J20-000 | HUB,OUTPUT CARRIER | Output gear (09 MODEL) |
