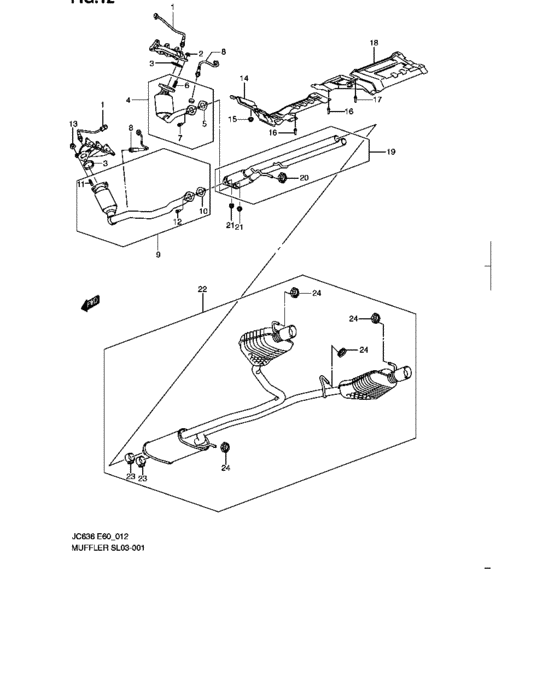

Muffler (MUFFLER)
18
| # | OEM | Part name |
|---|
| 1 |
18213-78J00-000 |
SENSOR,OXYGEN |
| 2 |
11623-78J00-000 |
NUT,M10 |
| 3 |
14184-78J00-000 |
GASKET,EXH MANF |
| 4 |
14191-78J01-000 |
PIPE,EXHAUST,R |
| 5 |
14184-78J11-000 |
GASKET,EXH PIPE |
| 6 |
14195-78J00-000 |
STUD BOLT |
| 7 |
14194-78J00-000 |
Bolt |
| 8 |
18213-78J10-000 |
SENSOR,OXYGEN |
| 9 |
14192-78J01-000 |
PIPE,EXHAUST,L |
| 14 |
14231-78J00-000 |
SHIELD,HEAT NO.1 |
| 14 |
14231-78J10-000 |
SHIELD,HEAT NO.1 |
| 15 |
14234-78J00-000 |
NUT,M6 |
| 16 |
14235-78J00-000 |
RIVET |
| 18 |
14232-78J00-000 |
SHIELD,HEAT NO.2 |
| 19 |
14250-78J01-000 |
PIPE,EXH CENTER |
| 20 |
14281-78J00-000 |
MOUNTING |
| 22 |
14300-78J01-000 |
MUFFLER ASSY |
| 23 |
14271-78J00-000 |
CLAMP,MUFFLER |
| OEM |
Part name |
Category |
| 11623-78J00-000 |
NUT,M10 |
Muffler (MUFFLER) |
| 14184-78J00-000 |
GASKET,EXH MANF |
Muffler (MUFFLER) |
| 14184-78J11-000 |
GASKET,EXH PIPE |
Muffler (MUFFLER) |
| 14191-78J01-000 |
PIPE,EXHAUST,R |
Muffler (MUFFLER) |
| 14192-78J01-000 |
PIPE,EXHAUST,L |
Muffler (MUFFLER) |
| 14194-78J00-000 |
Bolt |
Muffler (MUFFLER) |
| 14195-78J00-000 |
STUD BOLT |
Muffler (MUFFLER) |
| 14231-78J00-000 |
SHIELD,HEAT NO.1 |
Muffler (MUFFLER) |
| 14231-78J10-000 |
SHIELD,HEAT NO.1 |
Muffler (MUFFLER) |
| 14232-78J00-000 |
SHIELD,HEAT NO.2 |
Muffler (MUFFLER) |
| 14234-78J00-000 |
NUT,M6 |
Muffler (MUFFLER) |
| 14235-78J00-000 |
RIVET |
Muffler (MUFFLER) |
| 14250-78J01-000 |
PIPE,EXH CENTER |
Muffler (MUFFLER) |
| 14271-78J00-000 |
CLAMP,MUFFLER |
Muffler (MUFFLER) |
| 14281-78J00-000 |
MOUNTING |
Muffler (MUFFLER) |
| 14300-78J01-000 |
MUFFLER ASSY |
Muffler (MUFFLER) |
| 18213-78J00-000 |
SENSOR,OXYGEN |
Muffler (MUFFLER) |
| 18213-78J10-000 |
SENSOR,OXYGEN |
Muffler (MUFFLER) |
