JC636

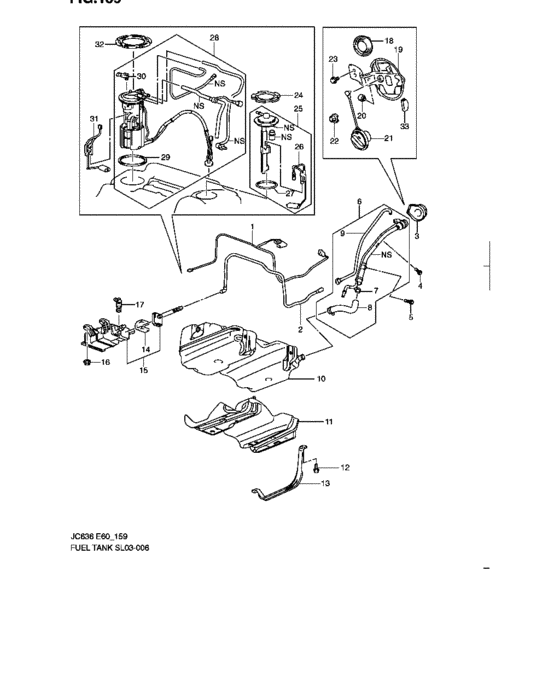

Fuel tank (FUEL TANK) 43
| # | OEM | Part name |
|---|---|---|
| 1 | 89213-78J10-000 | HARNESS,FUEL WIRING |
| 1 | 89213-78J20-000 | HARNESS,FUEL LINE |
| 2 | 89211-78J00-000 | HOSE |
| 3 | 89214-78J00-000 | HOUSING,FUEL FILLER NECK |
| 4 | 89221-78J01-000 | Bolt |
| 5 | 89222-78J00-000 | Bolt |
| 6 | 89201-78J02-000 | Pipe assy, fuel neck |
| 6 | 89201-78J03-000 | Pipe |
| 7 | 89223-78J00-000 | CLAMP |
| 7 | 89223-78J10-000 | Clamp |
| 8 | 89241-78J00-000 | HOSE |
| 9 | 89212-78J00-000 | HOSE |
| 10 | 89101-78J00-000 | TANK,FUEL |
| 11 | 89320-78J00-000 | PROTECTOR,FUEL TANK |
| 12 | 89224-78J01-000 | Bolt |
| 13 | 89360-78J01-000 | BELT,FUEL TANK FIXER |
| 14 | 18561-78J00-000 | FILTER,CANISTER |
| 15 | 18560-78J00-000 | Canister |
| 15 | 18560-78J10-000 | CANISTER,EVAP EMIS |
| 16 | 56118-78J00-000 | NUT |
| 17 | 18562-78J00-000 | Valve,canister |
| 17 | 18562-78J21-000 | VALVE,CANISTER |
| 17 | 18562-78J20-000 | Valve, canister |
| 18 | 89285-78J00-000 | INSULATOR,FILLER PIPE |
| 19 | 65950-78J00-000 | LID,FUEL INLET |
| 20 | 77192-78J00-000 | CUSHION,FUEL LID |
| 21 | 89260-78J00-000 | CAP,FUEL FILLER |
| 21 | 89260-78J10-000 | CAP,FUEL FILLER |
| 22 | 83372-78J00-000 | FEMALE,FUEL LID |
| 23 | 56119-78J00-000 | Bolt |
| 23 | 38458-78J00-000 | BOLT,M6X1X20 |
| 24 | 89486-78J00-000 | PLATE,FUEL SDR |
| 25 | 15100-78J11-000 | PUMP ASSY,FUEL |
| 26 | 34810-78J01-000 | SENSOR,FUEL LEVEL |
| 27 | 89487-78J00-000 | GASKET |
| 28 | 15100-78J30-000 | Pump assy,fuel |
| 28 | 15100-78J31-000 | PUMP ASSY,FUEL |
| 29 | 15111-78J00-000 | GASKET |
| 30 | 15131-78J00-000 | SENSOR,FUEL PUMP |
| 30 | 15131-78J10-000 | SENSOR,FUEL PUMP |
| 31 | 34810-78J20-000 | SENSOR,FUEL |
| 32 | 15121-78J00-000 | PLATE,FUEL PUMP |
| 33 | 65951-78J00-000 | STRIKER,FUEL FILLER DR LATCH |
| OEM | Part name | Category |
|---|---|---|
| 15100-78J11-000 | PUMP ASSY,FUEL | Fuel tank (FUEL TANK) |
| 15100-78J30-000 | Pump assy,fuel | Fuel tank (FUEL TANK) |
| 15100-78J31-000 | PUMP ASSY,FUEL | Fuel tank (FUEL TANK) |
| 15111-78J00-000 | GASKET | Fuel tank (FUEL TANK) |
| 15121-78J00-000 | PLATE,FUEL PUMP | Fuel tank (FUEL TANK) |
| 15131-78J00-000 | SENSOR,FUEL PUMP | Fuel tank (FUEL TANK) |
| 15131-78J10-000 | SENSOR,FUEL PUMP | Fuel tank (FUEL TANK) |
| 18560-78J00-000 | Canister | Fuel tank (FUEL TANK) |
| 18560-78J10-000 | CANISTER,EVAP EMIS | Fuel tank (FUEL TANK) |
| 18561-78J00-000 | FILTER,CANISTER | Fuel tank (FUEL TANK) |
| 18562-78J00-000 | Valve,canister | Fuel tank (FUEL TANK) |
| 18562-78J20-000 | Valve, canister | Fuel tank (FUEL TANK) |
| 18562-78J21-000 | VALVE,CANISTER | Fuel tank (FUEL TANK) |
| 34810-78J01-000 | SENSOR,FUEL LEVEL | Fuel tank (FUEL TANK) |
| 34810-78J20-000 | SENSOR,FUEL | Fuel tank (FUEL TANK) |
| 38458-78J00-000 | BOLT,M6X1X20 | Fuel tank (FUEL TANK) |
| 56118-78J00-000 | NUT | Fuel tank (FUEL TANK) |
| 56119-78J00-000 | Bolt | Fuel tank (FUEL TANK) |
| 65950-78J00-000 | LID,FUEL INLET | Fuel tank (FUEL TANK) |
| 65951-78J00-000 | STRIKER,FUEL FILLER DR LATCH | Fuel tank (FUEL TANK) |
| 77192-78J00-000 | CUSHION,FUEL LID | Fuel tank (FUEL TANK) |
| 83372-78J00-000 | FEMALE,FUEL LID | Fuel tank (FUEL TANK) |
| 89101-78J00-000 | TANK,FUEL | Fuel tank (FUEL TANK) |
| 89201-78J02-000 | Pipe assy, fuel neck | Fuel tank (FUEL TANK) |
| 89201-78J03-000 | Pipe | Fuel tank (FUEL TANK) |
| 89211-78J00-000 | HOSE | Fuel tank (FUEL TANK) |
| 89212-78J00-000 | HOSE | Fuel tank (FUEL TANK) |
| 89213-78J10-000 | HARNESS,FUEL WIRING | Fuel tank (FUEL TANK) |
| 89213-78J20-000 | HARNESS,FUEL LINE | Fuel tank (FUEL TANK) |
| 89214-78J00-000 | HOUSING,FUEL FILLER NECK | Fuel tank (FUEL TANK) |
| 89221-78J01-000 | Bolt | Fuel tank (FUEL TANK) |
| 89222-78J00-000 | Bolt | Fuel tank (FUEL TANK) |
| 89223-78J00-000 | CLAMP | Fuel tank (FUEL TANK) |
| 89223-78J10-000 | Clamp | Fuel tank (FUEL TANK) |
| 89224-78J01-000 | Bolt | Fuel tank (FUEL TANK) |
| 89241-78J00-000 | HOSE | Fuel tank (FUEL TANK) |
| 89260-78J00-000 | CAP,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89260-78J10-000 | CAP,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89285-78J00-000 | INSULATOR,FILLER PIPE | Fuel tank (FUEL TANK) |
| 89320-78J00-000 | PROTECTOR,FUEL TANK | Fuel tank (FUEL TANK) |
| 89360-78J01-000 | BELT,FUEL TANK FIXER | Fuel tank (FUEL TANK) |
| 89486-78J00-000 | PLATE,FUEL SDR | Fuel tank (FUEL TANK) |
| 89487-78J00-000 | GASKET | Fuel tank (FUEL TANK) |
