JC636

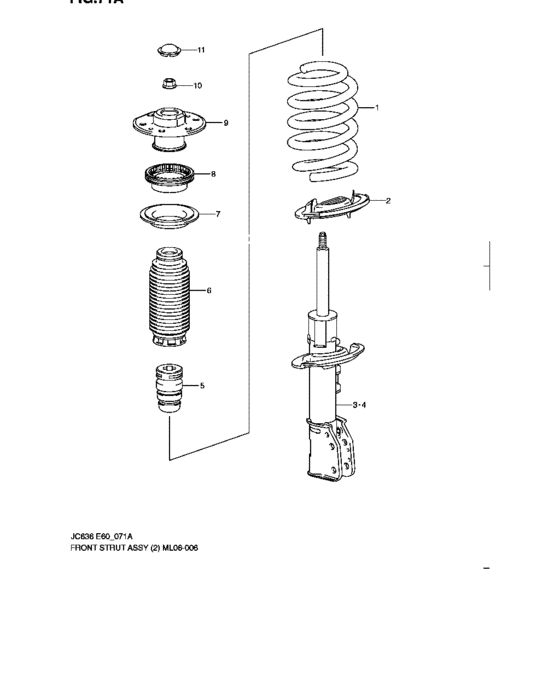

Front strut assy (08,09 MODEL) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 41111-78J00-000 | SPRING,FRONT COIL |
| 2 | 41240-78J00-000 | SEAT,COIL SPRING LOWER |
| 3 | 41602-78J20-000 | STRUT ASSY,FR SUSPENSION,L |
| 4 | 41601-78J20-000 | STRUT ASSY,FR SUSPENSION,R |
| 5 | 42111-78J00-000 | Stopper, bump |
| 5 | 42111-78J01-000 | STOPPER,BUMP |
| 6 | 41931-78J00-000 | Cover,strut dust |
| 6 | 41931-78J01-000 | COVER,STRUT DUST |
| 7 | 41230-78J00-000 | Seat, coil spring upper |
| 7 | 41230-78J02-000 | SEAT,COIL SPRING UPPER |
| 8 | 41741-78J00-000 | Bearing, front strut |
| 8 | 41741-78J01-000 | BEARING,FR STRUT |
| 9 | 41810-78J00-000 | SUPPORT,FRONT STRUT |
| 10 | 46118-78J00-000 | NUT |
| 11 | 41951-78J00-000 | CAP |
| OEM | Part name | Category |
|---|---|---|
| 41111-78J00-000 | SPRING,FRONT COIL | Front strut assy (08,09 MODEL) |
| 41230-78J00-000 | Seat, coil spring upper | Front strut assy (08,09 MODEL) |
| 41230-78J02-000 | SEAT,COIL SPRING UPPER | Front strut assy (08,09 MODEL) |
| 41240-78J00-000 | SEAT,COIL SPRING LOWER | Front strut assy (08,09 MODEL) |
| 41601-78J20-000 | STRUT ASSY,FR SUSPENSION,R | Front strut assy (08,09 MODEL) |
| 41602-78J20-000 | STRUT ASSY,FR SUSPENSION,L | Front strut assy (08,09 MODEL) |
| 41741-78J00-000 | Bearing, front strut | Front strut assy (08,09 MODEL) |
| 41741-78J01-000 | BEARING,FR STRUT | Front strut assy (08,09 MODEL) |
| 41810-78J00-000 | SUPPORT,FRONT STRUT | Front strut assy (08,09 MODEL) |
| 41931-78J00-000 | Cover,strut dust | Front strut assy (08,09 MODEL) |
| 41931-78J01-000 | COVER,STRUT DUST | Front strut assy (08,09 MODEL) |
| 41951-78J00-000 | CAP | Front strut assy (08,09 MODEL) |
| 42111-78J00-000 | Stopper, bump | Front strut assy (08,09 MODEL) |
| 42111-78J01-000 | STOPPER,BUMP | Front strut assy (08,09 MODEL) |
| 46118-78J00-000 | NUT | Front strut assy (08,09 MODEL) |
