JC636

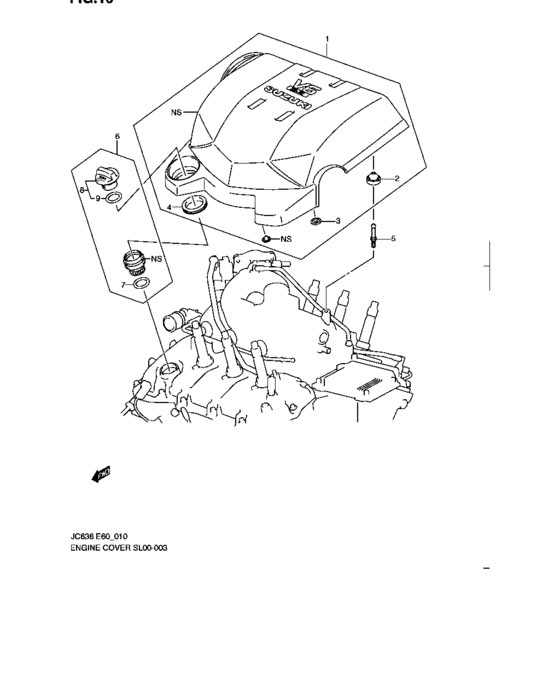

Engine cover (ENGINE COVER) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 13170-78J00-000 | COVER,ENGINE |
| 2 | 13137-78J00-000 | GROMMET |
| 3 | 13177-78J00-000 | NUT,ENG COVER |
| 4 | 16921-78J00-000 | GROMMET,OIL FILLER CAP |
| 5 | 13176-78J00-000 | BOLT,ENG COVER |
| 6 | 16920-78J00-000 | CAP ASSY,OIL FILLER |
| 7 | 16923-78J00-000 | O-RING,OIL FILLER CAP |
| 8 | 16922-78J00-000 | Cap,oil filler |
| OEM | Part name | Category |
|---|---|---|
| 13137-78J00-000 | GROMMET | Engine cover (ENGINE COVER) |
| 13170-78J00-000 | COVER,ENGINE | Engine cover (ENGINE COVER) |
| 13176-78J00-000 | BOLT,ENG COVER | Engine cover (ENGINE COVER) |
| 13177-78J00-000 | NUT,ENG COVER | Engine cover (ENGINE COVER) |
| 16920-78J00-000 | CAP ASSY,OIL FILLER | Engine cover (ENGINE COVER) |
| 16921-78J00-000 | GROMMET,OIL FILLER CAP | Engine cover (ENGINE COVER) |
| 16922-78J00-000 | Cap,oil filler | Engine cover (ENGINE COVER) |
| 16923-78J00-000 | O-RING,OIL FILLER CAP | Engine cover (ENGINE COVER) |
