JC636

Suzuki GRAND-VITARA · 2,896 parts · 191 categories
JC636 ×

← Back to categories

2,896 items

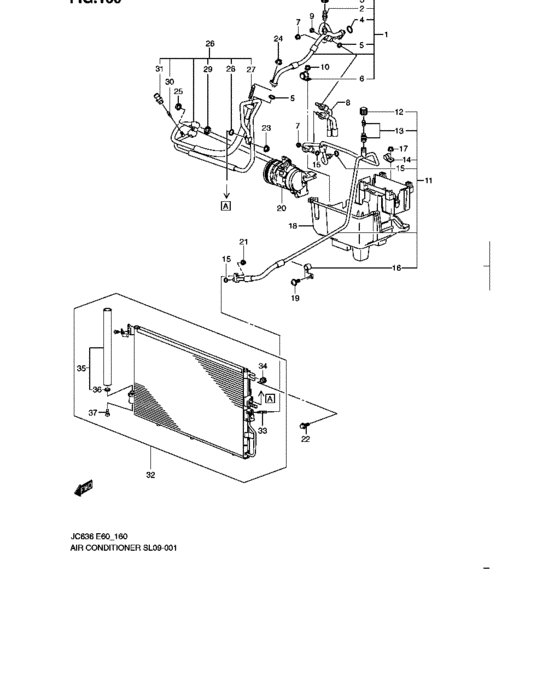

Air conditioner (AIR CONDITIONER) 31
#OEMPart name
1 95710-78J10-000 HOSE,SUCTION
2 95711-78J00-000 VALVE
3 95712-78J00-000 CAP
3 95734-78J00-000 CAP
4 95713-78J00-000 O-RING
5 95722-78J00-000 O-RING
6 95714-78J00-000 BRACKET
7 95715-78J00-000 NUT
8 74125-78J00-000 Pipe,evapo
8 74125-78J01-000 PIPE,EVAPORATOR
10 22911-78J00-000 NUT
11 95751-78J00-000 PIPE,LIQUID
13 95732-78J00-000 CORE
14 95736-78J00-000 BRACKET
15 95735-78J00-000 O-RING
16 95737-78J00-000 Clip
18 33660-78J01-000 TRAY,BATTERY
20 95200-78J01-000 COMPRESSOR ASSY
22 95738-78J00-000 Screw
26 95720-78J01-000 HOSE,DISCHARGE
27 95716-78J00-000 BOLT,STUD
30 95721-78J00-000 Sensor
30 95721-78J02-000 SENSOR
32 95310-78J01-000 Condenser
32 95310-78J02-000 CONDENSER
34 95312-78J00-000 CUSHION
35 95330-78J01-000 Receiver, dryer
35 95330-78J11-000 RECEIVER DRYER
35 95330-78J10-000 Receiver, dryer
36 95331-78J00-000 O-RING
37 95332-78J10-000 Bolt
