| 01550-0616A-000 |
Bolt |

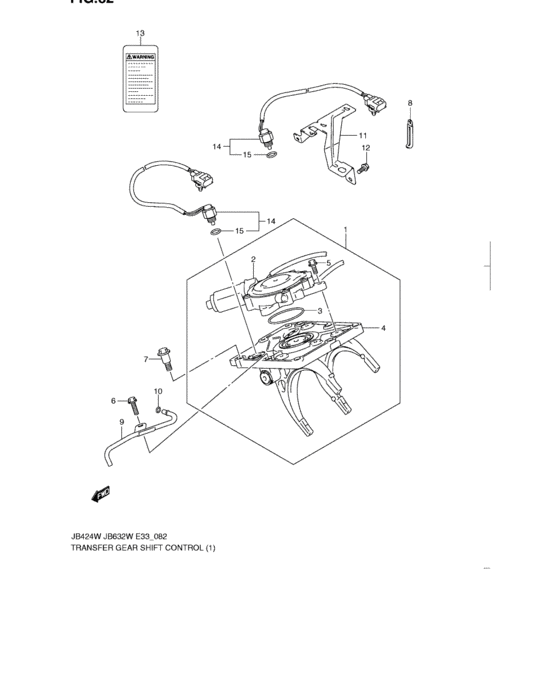

Transfer gear shift control (4WD:4 MODE) |
| 09103-08153-000 |
BOLT(8X30) - Bolt (8x30) |
Transfer gear shift control (4WD:4 MODE) |
| 09103-08193-000 |
BOLT(8X30.3) |
Transfer gear shift control (4WD:4 MODE) |
| 09280-06005-000 |
O RING(D:1.9,ID:5.7) |
Transfer gear shift control (4WD:4 MODE) |
| 09280-11002-000 |
O RING(D:1.9,ID:11.4) |
Transfer gear shift control (4WD:4 MODE) |
| 09404-08419-000 |
CLAMP(L:80) |
Transfer gear shift control (4WD:4 MODE) |
| 09404-08422-000 |
Clamp,wiring Harness |
Transfer gear shift control (4WD:4 MODE) |
| 24822-66J00-000 |
PIPE,T/F ACTUATOR BREATHER |
Transfer gear shift control (4WD:4 MODE) |
| 28381-66J10-000 |
EMBLEM,T/F GEAR SHIFT |
Transfer gear shift control (4WD:4 MODE) |
| 29300-80K00-000 |
ACTUATOR ASSY,T/F MOTOR SHIFT |
Transfer gear shift control (4WD:4 MODE) |
| 29311-80K00-000 |
ACTUATOR,MOTOR SHIFT |
Transfer gear shift control (4WD:4 MODE) |
| 29316-66J00-000 |
O-RING,ACTUATOR |
Transfer gear shift control (4WD:4 MODE) |
| 29330-80K00-000 |
FORK ASSY,MOTOR SHIFT |
Transfer gear shift control (4WD:4 MODE) |
| 29391-66J00-000 |
Bolt |
Transfer gear shift control (4WD:4 MODE) |
| 29726-66J00-000 |
BRACKET,T/F HARNESS |
Transfer gear shift control (4WD:4 MODE) |
| 37680-65J00-000 |
SWITCH ASSY,4WD |
Transfer gear shift control (4WD:4 MODE) |
