JB632W

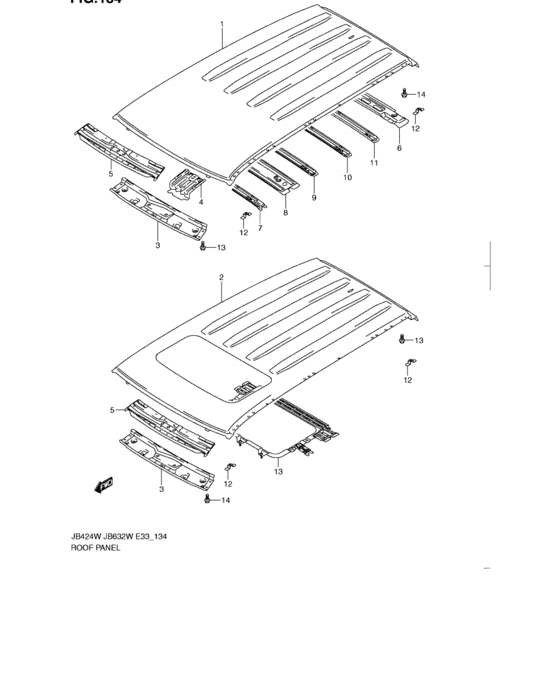

Roof panel (ROOF PANEL) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 65111-77K80-000 | PANEL,ROOF |
| 2 | 65111-65J91-000 | PANEL,ROOF |
| 3 | 65121-77K00-000 | PANEL,ROOF FRONT INNER |
| 4 | 65122-65J00-000 | BRACKET,OVER HEAD CONSOLE |
| 5 | 65123-77K00-000 | PANEL,ROOF FRONT UPPER |
| 6 | 65130-65J10-000 | PANEL,ROOF BACK INNER |
| 7 | 65141-65J00-000 | REINFORCEMENT,ROOF NO.1 |
| 8 | 65142-65J00-000 | REINFORCEMENT,ROOF NO.2 |
| 9 | 65143-65J01-000 | REINFORCEMENT,ROOF NO.3 |
| 10 | 65152-65J00-000 | REINFORCEMENT,ROOF NO.4 |
| 11 | 65161-65J00-000 | REINFORCEMENT,ROOF NO.5 |
| 12 | 65171-65J00-000 | BRACKET,ROOF RAIL CAP |
| 13 | 65180-77K00-000 | REINFORCEMENT,SLIDING ROOF |
| 14 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Roof panel (ROOF PANEL) |
| 65111-65J91-000 | PANEL,ROOF | Roof panel (ROOF PANEL) |
| 65111-77K80-000 | PANEL,ROOF | Roof panel (ROOF PANEL) |
| 65121-77K00-000 | PANEL,ROOF FRONT INNER | Roof panel (ROOF PANEL) |
| 65122-65J00-000 | BRACKET,OVER HEAD CONSOLE | Roof panel (ROOF PANEL) |
| 65123-77K00-000 | PANEL,ROOF FRONT UPPER | Roof panel (ROOF PANEL) |
| 65130-65J10-000 | PANEL,ROOF BACK INNER | Roof panel (ROOF PANEL) |
| 65141-65J00-000 | REINFORCEMENT,ROOF NO.1 | Roof panel (ROOF PANEL) |
| 65142-65J00-000 | REINFORCEMENT,ROOF NO.2 | Roof panel (ROOF PANEL) |
| 65143-65J01-000 | REINFORCEMENT,ROOF NO.3 | Roof panel (ROOF PANEL) |
| 65152-65J00-000 | REINFORCEMENT,ROOF NO.4 | Roof panel (ROOF PANEL) |
| 65161-65J00-000 | REINFORCEMENT,ROOF NO.5 | Roof panel (ROOF PANEL) |
| 65171-65J00-000 | BRACKET,ROOF RAIL CAP | Roof panel (ROOF PANEL) |
| 65180-77K00-000 | REINFORCEMENT,SLIDING ROOF | Roof panel (ROOF PANEL) |
