JB632W

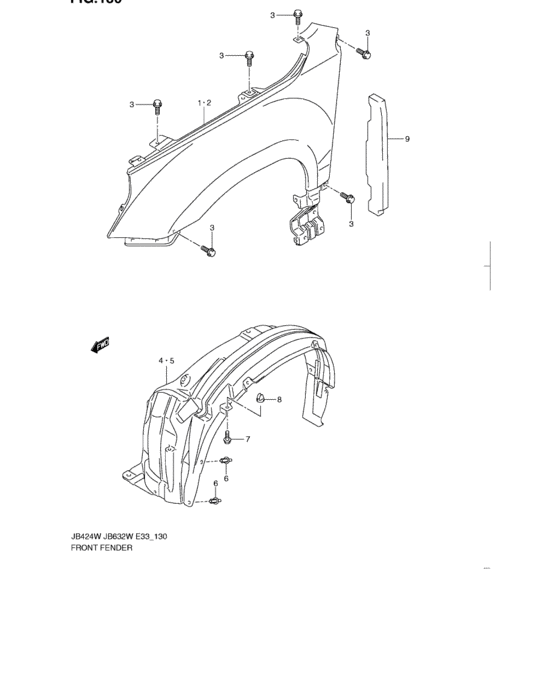

Front fender (FRONT FENDER) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 57600-65810-000 | PANEL SET,FR FNDR,R |
| 2 | 57700-65810-000 | PANEL SET,FR FNDR,L |
| 3 | 01550-0612A-000 | Bolt |
| 4 | 72481-65J00-000 | LINING,FR FENDER,R |
| 5 | 72482-65J00-000 | LINING,FR FENDER,L |
| 6 | 09409-07332-000 | CLIP |
| 7 | 09132-06025-000 | SCREW(6X16) |
| 8 | 09148-06007-000 | NUT |
| 9 | 72492-65J00-000 | PAD,FR FENDER REAR |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Front fender (FRONT FENDER) |
| 09132-06025-000 | SCREW(6X16) | Front fender (FRONT FENDER) |
| 09148-06007-000 | NUT | Front fender (FRONT FENDER) |
| 09409-07332-000 | CLIP | Front fender (FRONT FENDER) |
| 57600-65810-000 | PANEL SET,FR FNDR,R | Front fender (FRONT FENDER) |
| 57700-65810-000 | PANEL SET,FR FNDR,L | Front fender (FRONT FENDER) |
| 72481-65J00-000 | LINING,FR FENDER,R | Front fender (FRONT FENDER) |
| 72482-65J00-000 | LINING,FR FENDER,L | Front fender (FRONT FENDER) |
| 72492-65J00-000 | PAD,FR FENDER REAR | Front fender (FRONT FENDER) |
