Search › Model › JB632W
JB632W

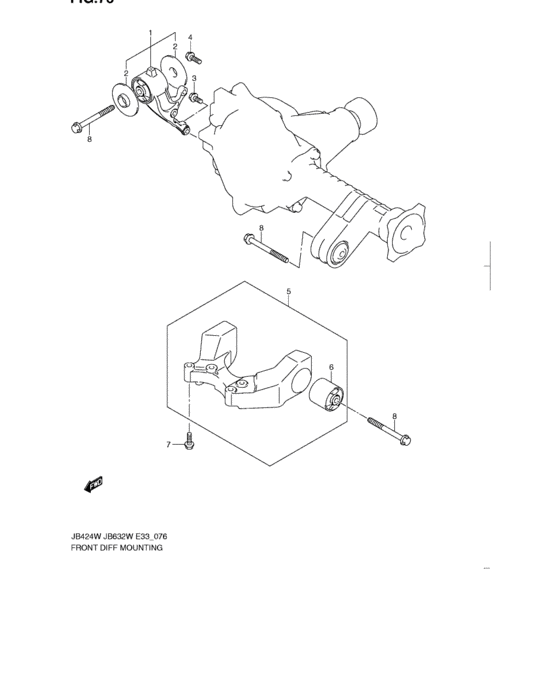

Front diff gear mounting (4WD) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 27620-66J22-000 | BRACKET,FR DIFF MTG,R |
| 2 | 27554-66J10-000 | STOPPER,DIFF MOUNT |
| 3 | 01550-1020A-000 | Bolt - Bolt, bal sprocket |
| 4 | 01550-1030A-000 | Bolt |
| 5 | 27630-80K00-000 | BRACKET,FR DIFF MTG,RR |
| 6 | 27552-66J10-000 | MOUNTING,FR DIFF NO.1 |
| 7 | 01550-1055C-000 | Bolt |
| 8 | 09103-12082-000 | BOLT(12X100) |
| OEM | Part name | Category |
|---|---|---|
| 01550-1020A-000 | Bolt - Bolt, bal sprocket | Front diff gear mounting (4WD) |
| 01550-1030A-000 | Bolt | Front diff gear mounting (4WD) |
| 01550-1055C-000 | Bolt | Front diff gear mounting (4WD) |
| 09103-12082-000 | BOLT(12X100) | Front diff gear mounting (4WD) |
| 27552-66J10-000 | MOUNTING,FR DIFF NO.1 | Front diff gear mounting (4WD) |
| 27554-66J10-000 | STOPPER,DIFF MOUNT | Front diff gear mounting (4WD) |
| 27620-66J22-000 | BRACKET,FR DIFF MTG,R | Front diff gear mounting (4WD) |
| 27630-80K00-000 | BRACKET,FR DIFF MTG,RR | Front diff gear mounting (4WD) |
