Search › Model › JB632W
JB632W

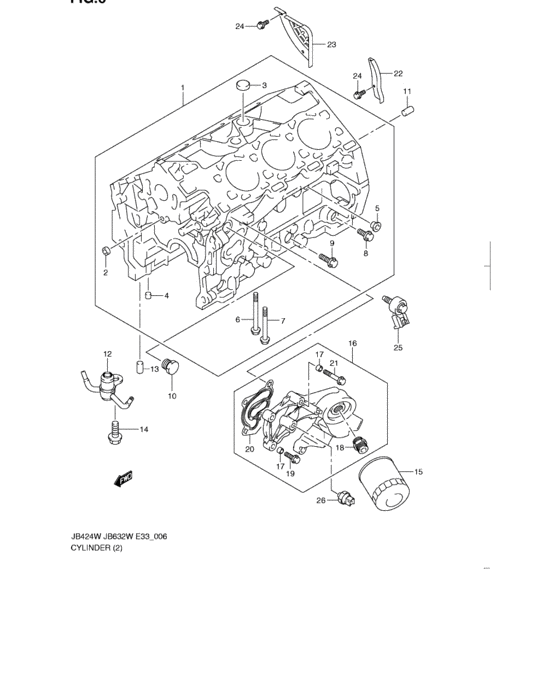

Cylinder (JB632W) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 11200-79K20-000 | Block assy,cylinder |
| 1 | 11200-79K00-X12 | BLOCK ASSY,CYLINDER N32A |
| 5 | 11214-78J00-000 | PLUG,M14 |
| 6 | 11251-78J00-000 | BOLT,CRANK BRG CAP 10X102.5 |
| 7 | 11253-78J00-000 | BOLT,CRANK BRG CAP 8X90.26 |
| 12 | 11390-78J01-000 | Jet,piston cooling |
| 12 | 11390-78J02-000 | JET,PISTON COOLING |
| 15 | 16510-78J01-000 | Filter assy,oil |
| 15 | 16510-78J02-000 | FILTER ASSY,OIL |
| 16 | 16530-79K00-000 | CASE,OIL FILTER ADAPTER |
| 18 | 12533-78J00-000 | STAND,OIL FILTER |
| 20 | 16532-78J00-000 | GASKET,OIL FILTER ADAPTER |
| 22 | 11310-79K00-000 | PLATE,CLUTCH HSG UPPER |
| 23 | 11320-79K00-000 | PLATE,CLUTCH HSG LOWER |
| 24 | 02162-0610A-000 | SCREW |
| 25 | 18640-78J20-000 | SENSOR ASSY,KNOCK |
| 26 | 37820-73H10-000 | Switch assy,oil pressure |
| 26 | 37820-73HP0-000 | SWITCH ASSY,OIL PRESS |
| OEM | Part name | Category |
|---|---|---|
| 02162-0610A-000 | SCREW | Cylinder (JB632W) |
| 11200-79K00-X12 | BLOCK ASSY,CYLINDER N32A | Cylinder (JB632W) |
| 11200-79K20-000 | Block assy,cylinder | Cylinder (JB632W) |
| 11214-78J00-000 | PLUG,M14 | Cylinder (JB632W) |
| 11251-78J00-000 | BOLT,CRANK BRG CAP 10X102.5 | Cylinder (JB632W) |
| 11253-78J00-000 | BOLT,CRANK BRG CAP 8X90.26 | Cylinder (JB632W) |
| 11310-79K00-000 | PLATE,CLUTCH HSG UPPER | Cylinder (JB632W) |
| 11320-79K00-000 | PLATE,CLUTCH HSG LOWER | Cylinder (JB632W) |
| 11390-78J01-000 | Jet,piston cooling | Cylinder (JB632W) |
| 11390-78J02-000 | JET,PISTON COOLING | Cylinder (JB632W) |
| 12533-78J00-000 | STAND,OIL FILTER | Cylinder (JB632W) |
| 16510-78J01-000 | Filter assy,oil | Cylinder (JB632W) |
| 16510-78J02-000 | FILTER ASSY,OIL | Cylinder (JB632W) |
| 16530-79K00-000 | CASE,OIL FILTER ADAPTER | Cylinder (JB632W) |
| 16532-78J00-000 | GASKET,OIL FILTER ADAPTER | Cylinder (JB632W) |
| 18640-78J20-000 | SENSOR ASSY,KNOCK | Cylinder (JB632W) |
| 37820-73H10-000 | Switch assy,oil pressure | Cylinder (JB632W) |
| 37820-73HP0-000 | SWITCH ASSY,OIL PRESS | Cylinder (JB632W) |
