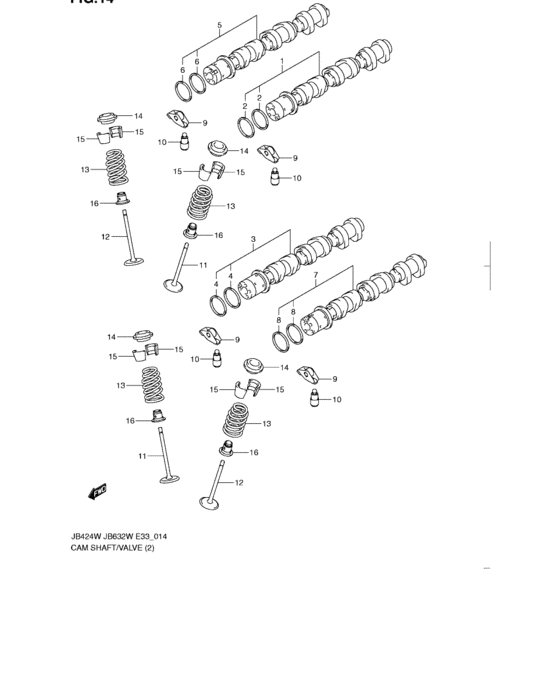

Cam shaft/valve (JB632W)
17
| # | OEM | Part name |
|---|
| 1 |
12710-78J00-000 |
Camshaft,intk rh |
| 1 |
12710-78J20-000 |
CAMSHAFT,INTK,R |
| 2 |
12712-78J00-000 |
RING,CAMSHAFT SEAL |
| 3 |
12710-78J10-000 |
Camshaft,intk lh |
| 3 |
12710-78J30-000 |
CAMSHAFT,INTK,R |
| 5 |
12720-78J00-000 |
Camshaft,exh rh |
| 5 |
12720-78J20-000 |
CAMSHAFT,EXH,R |
| 7 |
12720-78J10-000 |
Camshaft,exh lh |
| 7 |
12720-78J30-000 |
CAMSHAFT,EXH,R |
| 9 |
12840-78J00-000 |
ARM,VALVE ROCKER |
| 10 |
12860-78J00-000 |
ADJUSTER,HYDR VALVE LASH |
| 11 |
12911-79K00-000 |
Valve,intake |
| 12 |
12915-78J10-000 |
Valve,exhaust |
| 13 |
12921-78J00-000 |
SPRING,VALVE |
| 14 |
12931-78J00-000 |
RETAINER,VALVE SPRING |
| 15 |
12932-78J00-000 |
COTTER,VALVE |
| 16 |
12933-78J00-000 |
SEAL,VALVE STEM |
| OEM |
Part name |
Category |
| 12710-78J00-000 |
Camshaft,intk rh |
Cam shaft/valve (JB632W) |
| 12710-78J10-000 |
Camshaft,intk lh |
Cam shaft/valve (JB632W) |
| 12710-78J20-000 |
CAMSHAFT,INTK,R |
Cam shaft/valve (JB632W) |
| 12710-78J30-000 |
CAMSHAFT,INTK,R |
Cam shaft/valve (JB632W) |
| 12712-78J00-000 |
RING,CAMSHAFT SEAL |
Cam shaft/valve (JB632W) |
| 12720-78J00-000 |
Camshaft,exh rh |
Cam shaft/valve (JB632W) |
| 12720-78J10-000 |
Camshaft,exh lh |
Cam shaft/valve (JB632W) |
| 12720-78J20-000 |
CAMSHAFT,EXH,R |
Cam shaft/valve (JB632W) |
| 12720-78J30-000 |
CAMSHAFT,EXH,R |
Cam shaft/valve (JB632W) |
| 12840-78J00-000 |
ARM,VALVE ROCKER |
Cam shaft/valve (JB632W) |
| 12860-78J00-000 |
ADJUSTER,HYDR VALVE LASH |
Cam shaft/valve (JB632W) |
| 12911-79K00-000 |
Valve,intake |
Cam shaft/valve (JB632W) |
| 12915-78J10-000 |
Valve,exhaust |
Cam shaft/valve (JB632W) |
| 12921-78J00-000 |
SPRING,VALVE |
Cam shaft/valve (JB632W) |
| 12931-78J00-000 |
RETAINER,VALVE SPRING |
Cam shaft/valve (JB632W) |
| 12932-78J00-000 |
COTTER,VALVE |
Cam shaft/valve (JB632W) |
| 12933-78J00-000 |
SEAL,VALVE STEM |
Cam shaft/valve (JB632W) |
