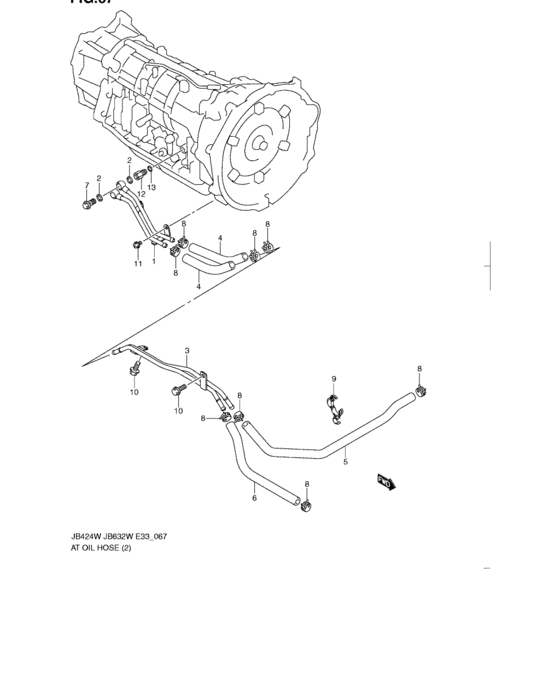

At oil hose (AT:JB632W)
13
| # | OEM | Part name |
|---|
| 1 |
22910-79K10-000 |
PIPE,OIL NO.1 |
| 2 |
22913-59J10-000 |
GASKET,14X20X0.9 |
| 3 |
22920-79K10-000 |
PIPE,OIL NO.2 |
| 4 |
22931-66H10-000 |
HOSE,OIL OUTLET NO.1 |
| 5 |
22933-64J30-000 |
HOSE,OIL NO.3 |
| 6 |
22934-64J30-000 |
HOSE,OIL NO.4 |
| 7 |
22935-79J10-000 |
BOLT,OIL PIPE UNION |
| 8 |
09401-15410-000 |
CLIP |
| 9 |
09408-00210-000 |
CLAMP |
| 10 |
01550-0816A-000 |
Bolt - Bolt, rear |
| 11 |
02162-0610A-000 |
SCREW |
| 12 |
24732-53J10-000 |
UNION,OIL PIPE |
| 13 |
24733-53J10-000 |
O-RING,OIL PIPE UNION |
| OEM |
Part name |
Category |
| 01550-0816A-000 |
Bolt - Bolt, rear |
At oil hose (AT:JB632W) |
| 02162-0610A-000 |
SCREW |
At oil hose (AT:JB632W) |
| 09401-15410-000 |
CLIP |
At oil hose (AT:JB632W) |
| 09408-00210-000 |
CLAMP |
At oil hose (AT:JB632W) |
| 22910-79K10-000 |
PIPE,OIL NO.1 |
At oil hose (AT:JB632W) |
| 22913-59J10-000 |
GASKET,14X20X0.9 |
At oil hose (AT:JB632W) |
| 22920-79K10-000 |
PIPE,OIL NO.2 |
At oil hose (AT:JB632W) |
| 22931-66H10-000 |
HOSE,OIL OUTLET NO.1 |
At oil hose (AT:JB632W) |
| 22933-64J30-000 |
HOSE,OIL NO.3 |
At oil hose (AT:JB632W) |
| 22934-64J30-000 |
HOSE,OIL NO.4 |
At oil hose (AT:JB632W) |
| 22935-79J10-000 |
BOLT,OIL PIPE UNION |
At oil hose (AT:JB632W) |
| 24732-53J10-000 |
UNION,OIL PIPE |
At oil hose (AT:JB632W) |
| 24733-53J10-000 |
O-RING,OIL PIPE UNION |
At oil hose (AT:JB632W) |
