Search › Model › JB632W
JB632W

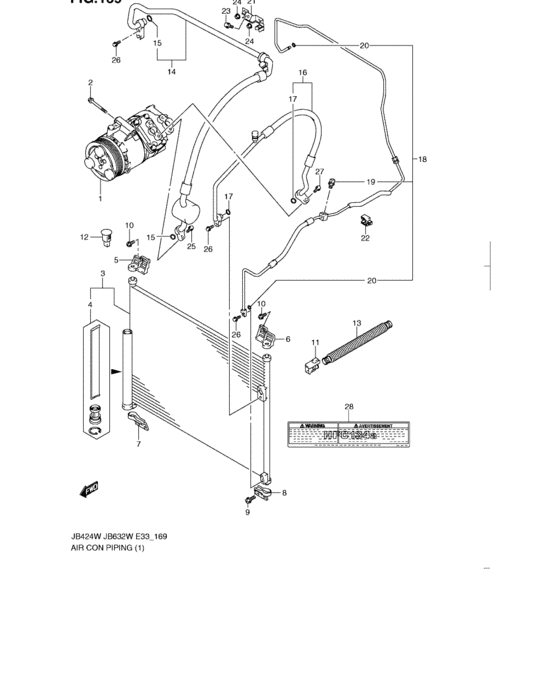

Air conditioner (JB424W) 30
| # | OEM | Part name |
|---|---|---|
| 1 | 95200-76KA0-000 | Compressor assy |
| 1 | 95200-76KA1-000 | COMPRESSOR ASSY |
| 2 | 01550-0875A-000 | Bolt |
| 3 | 95310-64J01-000 | Condenser assy |
| 3 | 95310-64JA0-000 | CONDENSER ASSY |
| 4 | 95339-58J10-000 | DRYER KIT |
| 5 | 95851-64J00-000 | BUSH |
| 6 | 95391-64J00-000 | BRACKET,COND UPPER,R |
| 7 | 95391-64J10-000 | BRACKET,COND UPPER,L |
| 8 | 95392-64J00-000 | BRACKET,COND LOWER,R |
| 9 | 95392-64J10-000 | BRACKET,COND LOWER,L |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 11 | 02162-0616A-000 | SCREW |
| 11 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 12 | 95641-59J00-000 | SENSOR,ROOM TEMP |
| 13 | 95642-54J01-000 | SENSOR,SUN LIGHT |
| 14 | 95647-64J00-000 | DUCT,ROOM TEMP SNSR |
| 15 | 95710-76K10-000 | HOSE,SUCTION |
| 16 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
| 17 | 95720-76K00-000 | HOSE,DISCHARGE |
| 18 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 |
| 19 | 95731-64J10-000 | HOSE,LIQUID |
| 20 | 95546-58J00-000 | SENSOR,PRESSURE |
| 21 | 95891-50G00-000 | O-RING,D:1.8 ID:6.7 |
| 22 | 95781-64J10-000 | STAY,SUCT HOSE |
| 23 | 09403-08331-000 | CLAMP |
| 24 | 09136-06141-000 | SCREW(6X25) |
| 25 | 09159-06076-000 | NUT |
| 26 | 01550-0620A-000 | Bolt |
| 29 | 95951-76K00-000 | PLATE,WARNING A/C |
| OEM | Part name | Category |
|---|---|---|
| 01550-0620A-000 | Bolt | Air conditioner (JB424W) |
| 01550-0875A-000 | Bolt | Air conditioner (JB424W) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Air conditioner (JB424W) |
| 02162-0616A-000 | SCREW | Air conditioner (JB424W) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Air conditioner (JB424W) |
| 09136-06141-000 | SCREW(6X25) | Air conditioner (JB424W) |
| 09159-06076-000 | NUT | Air conditioner (JB424W) |
| 09403-08331-000 | CLAMP | Air conditioner (JB424W) |
| 95200-76KA0-000 | Compressor assy | Air conditioner (JB424W) |
| 95200-76KA1-000 | COMPRESSOR ASSY | Air conditioner (JB424W) |
| 95310-64J01-000 | Condenser assy | Air conditioner (JB424W) |
| 95310-64JA0-000 | CONDENSER ASSY | Air conditioner (JB424W) |
| 95339-58J10-000 | DRYER KIT | Air conditioner (JB424W) |
| 95391-64J00-000 | BRACKET,COND UPPER,R | Air conditioner (JB424W) |
| 95391-64J10-000 | BRACKET,COND UPPER,L | Air conditioner (JB424W) |
| 95392-64J00-000 | BRACKET,COND LOWER,R | Air conditioner (JB424W) |
| 95392-64J10-000 | BRACKET,COND LOWER,L | Air conditioner (JB424W) |
| 95546-58J00-000 | SENSOR,PRESSURE | Air conditioner (JB424W) |
| 95641-59J00-000 | SENSOR,ROOM TEMP | Air conditioner (JB424W) |
| 95642-54J01-000 | SENSOR,SUN LIGHT | Air conditioner (JB424W) |
| 95647-64J00-000 | DUCT,ROOM TEMP SNSR | Air conditioner (JB424W) |
| 95710-76K10-000 | HOSE,SUCTION | Air conditioner (JB424W) |
| 95720-76K00-000 | HOSE,DISCHARGE | Air conditioner (JB424W) |
| 95731-64J10-000 | HOSE,LIQUID | Air conditioner (JB424W) |
| 95781-64J10-000 | STAY,SUCT HOSE | Air conditioner (JB424W) |
| 95851-64J00-000 | BUSH | Air conditioner (JB424W) |
| 95891-50G00-000 | O-RING,D:1.8 ID:6.7 | Air conditioner (JB424W) |
| 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | Air conditioner (JB424W) |
| 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | Air conditioner (JB424W) |
| 95951-76K00-000 | PLATE,WARNING A/C | Air conditioner (JB424W) |
