JB632W

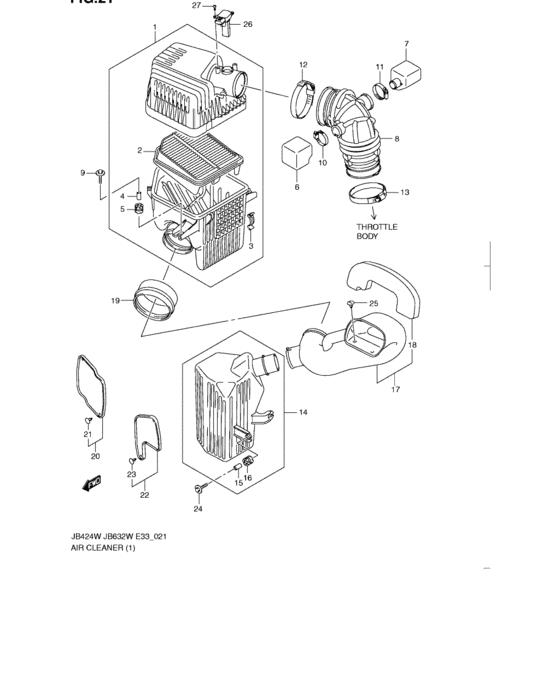

Air cleaner (JB424W) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-78K00-000 | CLEANER ASSY,AIR |
| 2 | 13780-78K00-000 | ELEMENT,AIR CLEANER |
| 3 | 13755-79K00-000 | CLIP,AIR CLEANER |
| 4 | 13877-65D00-000 | COLLAR,7.6X10X19.3 |
| 5 | 13878-65D00-000 | CUSHION,12.5X22X19.5 |
| 6 | 13761-78K10-000 | RESONATOR,NO.2 |
| 7 | 13761-78K20-000 | RESONATOR,NO.3 |
| 8 | 13881-78K00-000 | HOSE,AIR CLEANER OUTLET |
| 9 | 09116-06172-000 | BOLT(6X30) - Bolt (6x30) |
| 10 | 09402-28511-000 | CLAMP |
| 11 | 09402-38511-000 | CLAMP |
| 12 | 09402-82511-000 | CLAMP |
| 14 | 13761-78K00-000 | RESONATOR |
| 17 | 13820-78K00-000 | PIPE,AIR CLNR SUCTION |
| 18 | 13822-78K00-000 | SEAL |
| 19 | 13825-79K00-000 | JOINT,SUCTION PIPE |
| 20 | 13840-65J00-000 | COVER,LAMP SUPPORT HOLE,R |
| 21 | 09409-04304-000 | CLIP |
| 22 | 13850-65J00-000 | COVER,LAMP SUPPORT HOLE,L |
| 25 | 09409-06330-000 | CLIP |
| 26 | 13800-54L00-000 | SENSOR ASSY, MAF |
| 27 | 03511-0412A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03511-0412A-000 | SCREW | Air cleaner (JB424W) |
| 09116-06172-000 | BOLT(6X30) - Bolt (6x30) | Air cleaner (JB424W) |
| 09402-28511-000 | CLAMP | Air cleaner (JB424W) |
| 09402-38511-000 | CLAMP | Air cleaner (JB424W) |
| 09402-82511-000 | CLAMP | Air cleaner (JB424W) |
| 09409-04304-000 | CLIP | Air cleaner (JB424W) |
| 09409-06330-000 | CLIP | Air cleaner (JB424W) |
| 13700-78K00-000 | CLEANER ASSY,AIR | Air cleaner (JB424W) |
| 13755-79K00-000 | CLIP,AIR CLEANER | Air cleaner (JB424W) |
| 13761-78K00-000 | RESONATOR | Air cleaner (JB424W) |
| 13761-78K10-000 | RESONATOR,NO.2 | Air cleaner (JB424W) |
| 13761-78K20-000 | RESONATOR,NO.3 | Air cleaner (JB424W) |
| 13780-78K00-000 | ELEMENT,AIR CLEANER | Air cleaner (JB424W) |
| 13800-54L00-000 | SENSOR ASSY, MAF | Air cleaner (JB424W) |
| 13820-78K00-000 | PIPE,AIR CLNR SUCTION | Air cleaner (JB424W) |
| 13822-78K00-000 | SEAL | Air cleaner (JB424W) |
| 13825-79K00-000 | JOINT,SUCTION PIPE | Air cleaner (JB424W) |
| 13840-65J00-000 | COVER,LAMP SUPPORT HOLE,R | Air cleaner (JB424W) |
| 13850-65J00-000 | COVER,LAMP SUPPORT HOLE,L | Air cleaner (JB424W) |
| 13877-65D00-000 | COLLAR,7.6X10X19.3 | Air cleaner (JB424W) |
| 13878-65D00-000 | CUSHION,12.5X22X19.5 | Air cleaner (JB424W) |
| 13881-78K00-000 | HOSE,AIR CLEANER OUTLET | Air cleaner (JB424W) |
