| 08113-63070-000 |
Bearing |

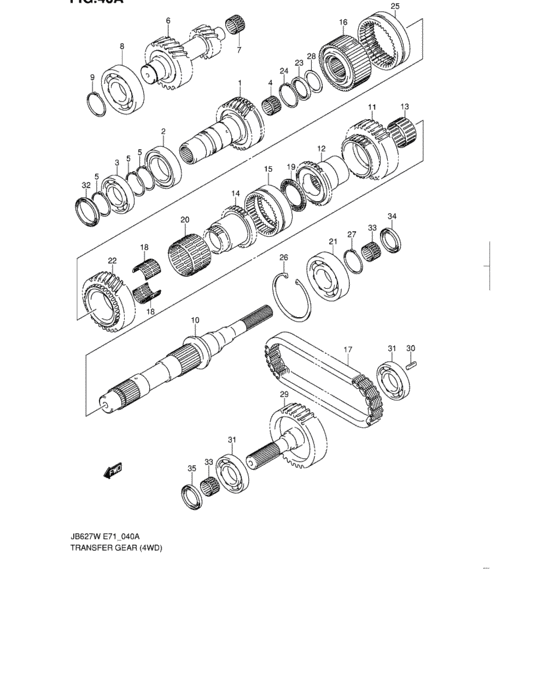

Transfer gear (4WD) |
| 08331-31359-000 |
CIRCLIP |
Transfer gear (4WD) |
| 08331-3135A-000 |
Circlip |
Transfer gear (4WD) |
| 08331-31383-000 |
CIRCLIP |
Transfer gear (4WD) |
| 08331-31406-000 |
Circlip |
Transfer gear (4WD) |
| 08331-31409-000 |
CIRCLIP |
Transfer gear (4WD) |
| 08331-31506-000 |
Circlip |
Transfer gear (4WD) |
| 08331-31509-000 |
CIRCLIP |
Transfer gear (4WD) |
| 09262-30077-000 |
BEARING(30X72X19) - Bearing, sub t/m output, r |
Transfer gear (4WD) |
| 09263-40006-000 |
BEARING(40X47X30) |
Transfer gear (4WD) |
| 09283-40037-000 |
SEAL,OIL(40X54X7.3) |
Transfer gear (4WD) |
| 09283-48015-000 |
SEAL,OIL(48X62X7) |
Transfer gear (4WD) |
| 29110-66J01-000 |
Gear comp,t/f input |
Transfer gear (4WD) |
| 29110-66J02-000 |
GEAR,T/F INPUT |
Transfer gear (4WD) |
| 29121-66J00-000 |
GEAR,T/F COUNTER |
Transfer gear (4WD) |
| 29141-66J00-000 |
SHAFT,REAR OUTPUT |
Transfer gear (4WD) |
| 29151-66J00-000 |
SHAFT,FRONT OUTPUT |
Transfer gear (4WD) |
| 29152-66J00-000 |
PIN,OIL PUMP DRIVE |
Transfer gear (4WD) |
| 29211-66J00-000 |
GEAR,LOW |
Transfer gear (4WD) |
| 29221-66J00-000 |
SPROCKET,FRONT DRIVE |
Transfer gear (4WD) |
| 29222-66J00-000 |
BUSH,FR DRIVE SPROCKET |
Transfer gear (4WD) |
| 29223-66J00-000 |
SHAFT,FRONT DRIVE |
Transfer gear (4WD) |
| 29225-66J00-000 |
Chain,front drive |
Transfer gear (4WD) |
| 29225-66J01-000 |
CHAIN,FR DRIVE |
Transfer gear (4WD) |
| 29241-66J01-000 |
SLEEVE,REDUCTION SHIFT |
Transfer gear (4WD) |
| 29262-66J00-000 |
SLEEVE,DIFF LOCK CLUTCH |
Transfer gear (4WD) |
| 29283-66J20-000 |
Seal,front output shaft |
Transfer gear (4WD) |
| 29283-66J30-000 |
SEAL,RR OUTPUT SHAFT |
Transfer gear (4WD) |
| 29283-66J40-000 |
Seal,input gear |
Transfer gear (4WD) |
| 29380-66J00-000 |
CIRCLIP,RR OUTPUT BRG NO.2 |
Transfer gear (4WD) |
| 29710-66J00-000 |
DIFFERENTIAL ASSY,CENTER LSD |
Transfer gear (4WD) |
| 29722-66J00-000 |
WASHER,CTR DIFF CAM |
Transfer gear (4WD) |
| 29724-66J00-040 |
SHIM,CTR DIFF CAM T:0.40 |
Transfer gear (4WD) |
| 29724-66J00-060 |
SHIM,CTR DIFF CAM T:0.60 |
Transfer gear (4WD) |
| 29724-66J00-080 |
SHIM,CTR DIFF CAM T:0.80 |
Transfer gear (4WD) |
| 29724-66J00-100 |
SHIM,CTR DIFF CAM T:1.00 |
Transfer gear (4WD) |
| 29724-66J00-120 |
SHIM,CTR DIFF CAM T:1.20 |
Transfer gear (4WD) |
| 29724-66J00-140 |
SHIM,CTR DIFF CAM T:1.40 |
Transfer gear (4WD) |
| 29724-66J00-160 |
SHIM,CTR DIFF CAM T:1.60 |
Transfer gear (4WD) |
| 29724-66J00-180 |
SHIM,CTR DIFF CAM T:1.80 |
Transfer gear (4WD) |
| 29724-66J00-200 |
SHIM,CTR DIFF CAM T:2.00 |
Transfer gear (4WD) |
| 29724-66J00-220 |
SHIM,CTR DIFF CAM T:2.20 |
Transfer gear (4WD) |
| 29724-66J00-240 |
SHIM,CTR DIFF CAM T:2.40 |
Transfer gear (4WD) |
| 29921-66J00-000 |
BEARING,T/F INPUT GEAR RR |
Transfer gear (4WD) |
| 29922-66J00-000 |
BEARING,T/F INPUT GEAR NDL |
Transfer gear (4WD) |
| 29923-66J00-000 |
BEARING,T/F COUNTER GEAR NDL |
Transfer gear (4WD) |
| 29924-66J00-000 |
BEARING,FR DR SPRKT NDL |
Transfer gear (4WD) |
| 29925-66J00-000 |
BEARING,FR DR SFT NDL |
Transfer gear (4WD) |
| 29927-66J00-000 |
BEARING,FR DR SFT THR NDL |
Transfer gear (4WD) |
| 29928-66J00-000 |
BEARING,LOW GEAR NDL |
Transfer gear (4WD) |
| 29931-66J00-000 |
BEARING,T/F INPUT GEAR FR |
Transfer gear (4WD) |
| 29932-66J00-000 |
BEARING,RR OUTPUT SFT |
Transfer gear (4WD) |
