Search › Model › JB627W
JB627W

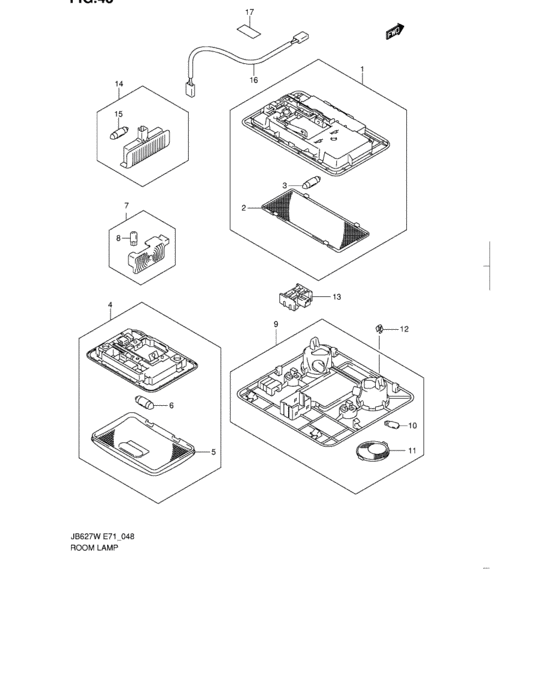

Room lamp (ROOM LAMP) 28
| # | OEM | Part name |
|---|---|---|
| 1 | 36210-65J02-6GS | LAMP ASSY,ROOM |
| 1 | 36210-65J03-6GS | Lamp Assy,room |
| 1 | 36210-65J02-R8H | LAMP ASSY,ROOM |
| 2 | 36212-65J00-000 | レンズ |
| 2 | 36212-65J01-000 | LENS |
| 3 | 09471-12181-000 | BULB(12V10W) |
| 4 | 36210-58J00-6GS | Lamp assy,rr room |
| 4 | 36210-58J03-6GS | LAMP ASSY,RR ROOM |
| 4 | 36210-58J00-R8H | LAMP ASSY,RR ROOM |
| 4 | 36210-58J03-R8H | LAMP ASSY,RR ROOM |
| 5 | 36212-58J00-000 | LENS |
| 7 | 36210-54G20-000 | LAMP ASSY,LUGGAGE ROOM |
| 8 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 8 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 9 | 36230-65J00-6GS | ランプアッシ,スポット(グレー) |
| 9 | 36230-65J01-6GS | LAMP ASSY,ROOM |
| 9 | 36230-65J00-R8H | LAMP ASSY,SPOT |
| 10 | 09471-12113-000 | BULB(12V8W) |
| 11 | 36232-65J00-000 | レンズ |
| 11 | 36232-65J01-000 | LENS |
| 12 | 09409-08325-000 | CLIP |
| 13 | 37880-64J00-6GS | SWITCH ASSY,SUN ROOF |
| 13 | 37880-64J00-R8H | SWITCH ASSY,SUN ROOF |
| 14 | 36550-65J50-000 | LAMP ASSY,DR ILLUM |
| 15 | 09471-12073-000 | BULB(12V,5W) |
| 16 | 36826-65J00-000 | ワイヤ,ドアランプ |
| 16 | 36826-65J01-000 | WIRE,DR LAMP |
| 17 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire |
| OEM | Part name | Category |
|---|---|---|
| 09409-08325-000 | CLIP | Room lamp (ROOM LAMP) |
| 09471-12073-000 | BULB(12V,5W) | Room lamp (ROOM LAMP) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Room lamp (ROOM LAMP) |
| 09471-12113-000 | BULB(12V8W) | Room lamp (ROOM LAMP) |
| 09471-12181-000 | BULB(12V10W) | Room lamp (ROOM LAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Room lamp (ROOM LAMP) |
| 36210-54G20-000 | LAMP ASSY,LUGGAGE ROOM | Room lamp (ROOM LAMP) |
| 36210-58J00-6GS | Lamp assy,rr room | Room lamp (ROOM LAMP) |
| 36210-58J00-R8H | LAMP ASSY,RR ROOM | Room lamp (ROOM LAMP) |
| 36210-58J03-6GS | LAMP ASSY,RR ROOM | Room lamp (ROOM LAMP) |
| 36210-58J03-R8H | LAMP ASSY,RR ROOM | Room lamp (ROOM LAMP) |
| 36210-65J02-6GS | LAMP ASSY,ROOM | Room lamp (ROOM LAMP) |
| 36210-65J02-R8H | LAMP ASSY,ROOM | Room lamp (ROOM LAMP) |
| 36210-65J03-6GS | Lamp Assy,room | Room lamp (ROOM LAMP) |
| 36212-58J00-000 | LENS | Room lamp (ROOM LAMP) |
| 36212-65J00-000 | レンズ | Room lamp (ROOM LAMP) |
| 36212-65J01-000 | LENS | Room lamp (ROOM LAMP) |
| 36230-65J00-6GS | ランプアッシ,スポット(グレー) | Room lamp (ROOM LAMP) |
| 36230-65J00-R8H | LAMP ASSY,SPOT | Room lamp (ROOM LAMP) |
| 36230-65J01-6GS | LAMP ASSY,ROOM | Room lamp (ROOM LAMP) |
| 36232-65J00-000 | レンズ | Room lamp (ROOM LAMP) |
| 36232-65J01-000 | LENS | Room lamp (ROOM LAMP) |
| 36550-65J50-000 | LAMP ASSY,DR ILLUM | Room lamp (ROOM LAMP) |
| 36826-65J00-000 | ワイヤ,ドアランプ | Room lamp (ROOM LAMP) |
| 36826-65J01-000 | WIRE,DR LAMP | Room lamp (ROOM LAMP) |
| 36930-82010-000 | COVER,HARNESS - Cover, roof wire | Room lamp (ROOM LAMP) |
| 37880-64J00-6GS | SWITCH ASSY,SUN ROOF | Room lamp (ROOM LAMP) |
| 37880-64J00-R8H | SWITCH ASSY,SUN ROOF | Room lamp (ROOM LAMP) |
