JB627W

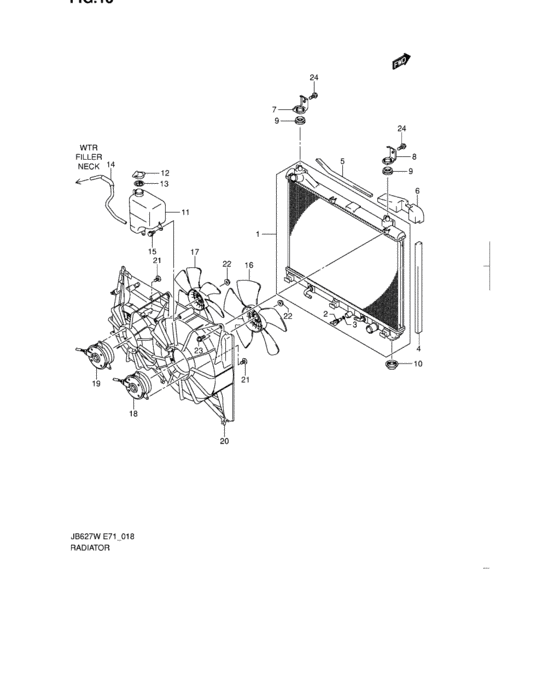

Radiator (RADIATOR) 27
| # | OEM | Part name |
|---|---|---|
| 1 | 17700-66J10-000 | RADIATOR ASSY |
| 2 | 17751-61A00-000 | PLUG,DRAIN |
| 3 | 17759-72010-000 | O-RING |
| 4 | 17791-65J00-000 | SEAL,RADIATOR NO.1 |
| 5 | 17792-65J00-000 | SEAL,RADIATOR NO.2 |
| 6 | 17793-65J00-000 | SEAL,RADIATOR NO.3 |
| 7 | 17811-65J00-000 | BRACKET,RDTR SPRT,R |
| 8 | 17811-65J10-000 | BRACKET,RDTR SPRT,L |
| 9 | 17812-54G00-000 | MOUNT,RDTR SUPPORT UPR |
| 10 | 17813-54G01-000 | MOUNT LWR |
| 11 | 17931-65J00-000 | TANK,WATER RESERVE |
| 12 | 17932-63J00-000 | CAP,WATER RESERVE TANK |
| 13 | 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
| 14 | 17938-66J00-000 | HOSE,RDTR TO RSV TANK |
| 15 | 09111-06085-000 | BOLT(6X12) |
| 16 | 17111-66J00-000 | FAN,COOLING 5 BLADES |
| 17 | 17111-66J10-000 | FAN,COOLING 7 BLADES |
| 18 | 17120-66J00-000 | MOTOR ASSY,FAN MAIN |
| 19 | 17120-66J10-000 | MOTOR ASSY,FAN SUB |
| 20 | 17760-65J00-000 | SHROUD |
| 21 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate |
| 21 | 02142-0510B-000 | SCREW - Bolt |
| 22 | 08316-20053-000 | Nut |
| 22 | 08316-2005A-000 | NUT |
| 23 | 02162-0616A-000 | SCREW |
| 23 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 24 | 02162-0612A-000 | SCREW - Bolt, bracket |
| OEM | Part name | Category |
|---|---|---|
| 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | Radiator (RADIATOR) |
| 02142-0510B-000 | SCREW - Bolt | Radiator (RADIATOR) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Radiator (RADIATOR) |
| 02162-0616A-000 | SCREW | Radiator (RADIATOR) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Radiator (RADIATOR) |
| 08316-20053-000 | Nut | Radiator (RADIATOR) |
| 08316-2005A-000 | NUT | Radiator (RADIATOR) |
| 09111-06085-000 | BOLT(6X12) | Radiator (RADIATOR) |
| 17111-66J00-000 | FAN,COOLING 5 BLADES | Radiator (RADIATOR) |
| 17111-66J10-000 | FAN,COOLING 7 BLADES | Radiator (RADIATOR) |
| 17120-66J00-000 | MOTOR ASSY,FAN MAIN | Radiator (RADIATOR) |
| 17120-66J10-000 | MOTOR ASSY,FAN SUB | Radiator (RADIATOR) |
| 17700-66J10-000 | RADIATOR ASSY | Radiator (RADIATOR) |
| 17751-61A00-000 | PLUG,DRAIN | Radiator (RADIATOR) |
| 17759-72010-000 | O-RING | Radiator (RADIATOR) |
| 17760-65J00-000 | SHROUD | Radiator (RADIATOR) |
| 17791-65J00-000 | SEAL,RADIATOR NO.1 | Radiator (RADIATOR) |
| 17792-65J00-000 | SEAL,RADIATOR NO.2 | Radiator (RADIATOR) |
| 17793-65J00-000 | SEAL,RADIATOR NO.3 | Radiator (RADIATOR) |
| 17811-65J00-000 | BRACKET,RDTR SPRT,R | Radiator (RADIATOR) |
| 17811-65J10-000 | BRACKET,RDTR SPRT,L | Radiator (RADIATOR) |
| 17812-54G00-000 | MOUNT,RDTR SUPPORT UPR | Radiator (RADIATOR) |
| 17813-54G01-000 | MOUNT LWR | Radiator (RADIATOR) |
| 17931-65J00-000 | TANK,WATER RESERVE | Radiator (RADIATOR) |
| 17932-63J00-000 | CAP,WATER RESERVE TANK | Radiator (RADIATOR) |
| 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap | Radiator (RADIATOR) |
| 17938-66J00-000 | HOSE,RDTR TO RSV TANK | Radiator (RADIATOR) |
