JB627W

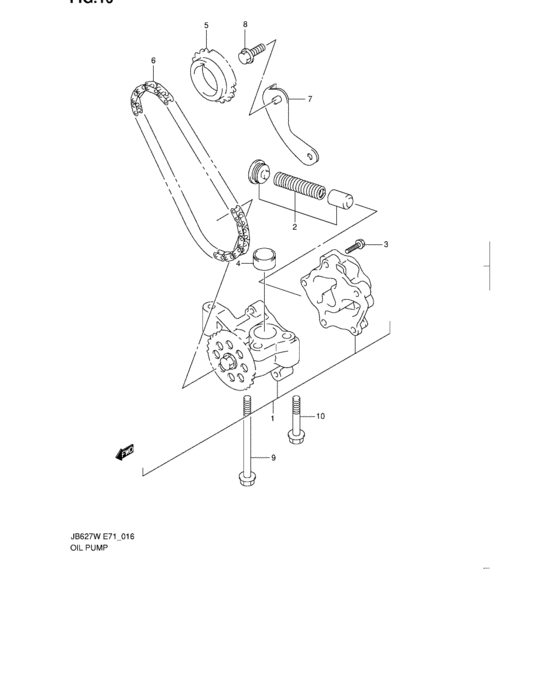

Oil pump (OIL PUMP) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 16100-85FA2-000 | PUMP ASSY,OIL |
| 2 | 16150-85FA0-000 | VALVE SET,OIL PUMP RELIEF |
| 3 | 07120-0625A-000 | Bolt - Bolt, cylinder head (l25) |
| 4 | 16114-85FA2-000 | PIN,OIL PUMP CASE |
| 5 | 12632-67D00-000 | SPROCKET,OIL PUMP DRIVE |
| 6 | 16760-85FA0-000 | CHAIN,OIL PUMP DRIVE |
| 7 | 16781-85FA0-000 | GUIDE,OIL PUMP CHAIN |
| 8 | 01550-0612A-000 | Bolt |
| 9 | 09103-08230-000 | BOLT(8X100) - Bolt (8x100) |
| 10 | 01550-0850A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Oil pump (OIL PUMP) |
| 01550-0850A-000 | Bolt | Oil pump (OIL PUMP) |
| 07120-0625A-000 | Bolt - Bolt, cylinder head (l25) | Oil pump (OIL PUMP) |
| 09103-08230-000 | BOLT(8X100) - Bolt (8x100) | Oil pump (OIL PUMP) |
| 12632-67D00-000 | SPROCKET,OIL PUMP DRIVE | Oil pump (OIL PUMP) |
| 16100-85FA2-000 | PUMP ASSY,OIL | Oil pump (OIL PUMP) |
| 16114-85FA2-000 | PIN,OIL PUMP CASE | Oil pump (OIL PUMP) |
| 16150-85FA0-000 | VALVE SET,OIL PUMP RELIEF | Oil pump (OIL PUMP) |
| 16760-85FA0-000 | CHAIN,OIL PUMP DRIVE | Oil pump (OIL PUMP) |
| 16781-85FA0-000 | GUIDE,OIL PUMP CHAIN | Oil pump (OIL PUMP) |
