Search › Model › JB627W
JB627W

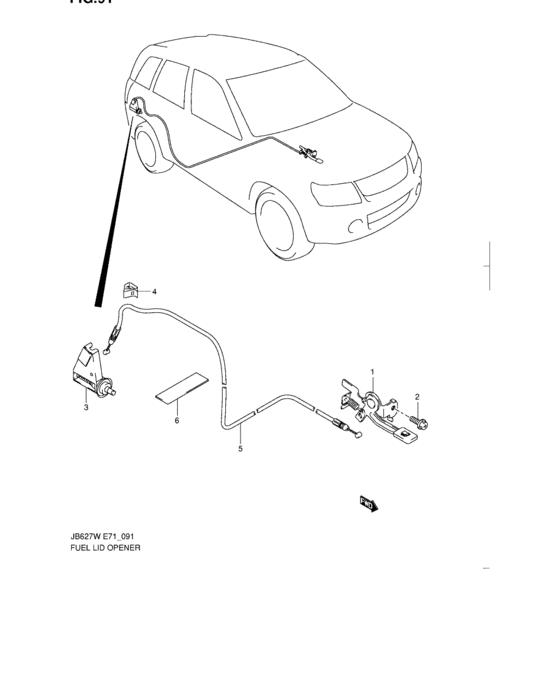

Fuel lid opener (FUEL LID OPENER) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 76510-65J00-000 | HANDLE ASSY,FUEL OPENER |
| 2 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 3 | 76520-76G00-000 | Opener assy, fuel lid |
| 3 | 76520-76G01-000 | OPENER ASSY,FUEL LID |
| 4 | 77121-63J00-000 | SPRING,FUEL FILLER DOOR |
| 5 | 76430-65J00-000 | CABLE,FUEL LID OPENER,L |
| 6 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire |
| OEM | Part name | Category |
|---|---|---|
| 02162-0612A-000 | SCREW - Bolt, bracket | Fuel lid opener (FUEL LID OPENER) |
| 36930-82010-000 | COVER,HARNESS - Cover, roof wire | Fuel lid opener (FUEL LID OPENER) |
| 76430-65J00-000 | CABLE,FUEL LID OPENER,L | Fuel lid opener (FUEL LID OPENER) |
| 76510-65J00-000 | HANDLE ASSY,FUEL OPENER | Fuel lid opener (FUEL LID OPENER) |
| 76520-76G00-000 | Opener assy, fuel lid | Fuel lid opener (FUEL LID OPENER) |
| 76520-76G01-000 | OPENER ASSY,FUEL LID | Fuel lid opener (FUEL LID OPENER) |
| 77121-63J00-000 | SPRING,FUEL FILLER DOOR | Fuel lid opener (FUEL LID OPENER) |
