JB627W

Suzuki GRAND-VITARA · 3,278 parts · 124 categories

3,278 items

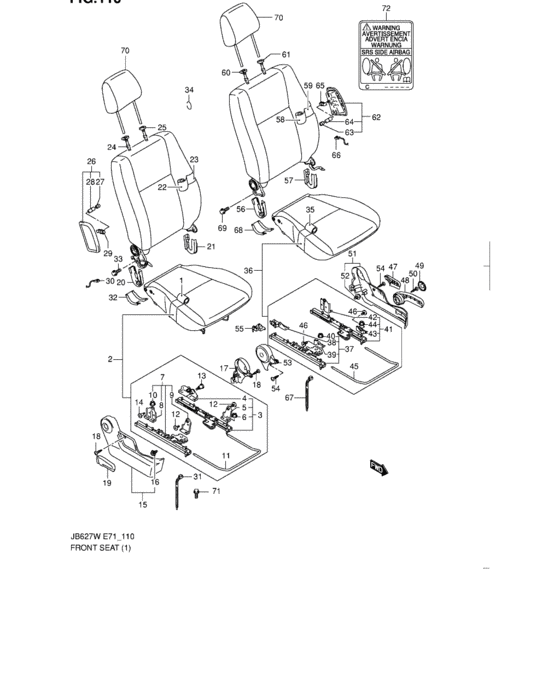

Front seat (FRONT SEAT) 108

#	OEM	Part name
1	85180-63J00-DBS	Trim,fr cush(black)
1	85180-65JV3-DBS	TRIM,FR CUSHION
1	85180-63J00-BFK	TRIM,FR CUSHION
1	85180-63J00-BFN	Trim,fr cush(beige)
2	85105-65J40-000	CUSHION S/ASSY,FR,R
3	86601-63J00-000	ADJUSTER S/ASSY,FR INSIDE,R
4	86712-63J00-000	RISER,RR INS,R
5	86720-63J00-000	RISER,FR INS,R
6	08316-1010A-000	NUT - Nut, kick starter
7	86603-65J00-000	ADJUSTER S/ASSY,FR OUTSIDE,R
8	86641-65J00-000	RISER,RR OUT
9	86710-65J00-000	RISER,FR OUT,R
11	86691-65J00-000	HANDLE,FR SEAT ADJ
12	01550-0816A-000	Bolt - Bolt, rear
13	86717-63J10-000	BOLT,RR RISER INSIDE
14	86719-63J10-000	BOLT,RR RISER OUTSIDE
15	85220-65J00-5PK	COVER,RCLNG OUTSIDE,R
15	85220-65J00-R8H	COVER,RCLNG OUTSIDE,R
16	85225-74G00-P4Z	CLIP,
17	85241-63J00-5PK	COVER,FR RCLNG INSIDE,R
17	85241-63J00-R8H	COVER,FR RCLNG INSIDE,R
18	03241-0512A-000	SCREW
19	85211-63J00-5PK	KNOB,RCLNG,R
19	85211-63J00-R8H	KNOB,RCLNG,R
20	85222-63J00-5PK	COVER,FR BACK FRAME,R
20	85222-63J00-R8H	COVER,FR BACK FRAME,R
21	85242-63J00-5PK	COVER,FR BACK FRAME,L
21	85242-63J00-R8H	COVER,FR BACK FRAME,L
22	85380-63J60-DBS	Trim,front back
22	85380-65JV2-DBS	TRIM,FR BACK,R
22	85380-63JG0-BFK	Trim,front back,r
22	85380-76KG0-BFK	TRIM,FR BACK,R
22	85380-63JG0-BFN	Trim,front back,r
22	85380-76KG0-BFN	TRIM,FR BACK,R
23	85305-63JG0-000	BACK S/ASSY,FR,R
23	85305-63JN0-000	BACK S/ASSY,FR,R
24	85341-63J00-P4Z	ガイド,ヘッドレストレイント(グレー)
24	85341-63J11-P4Z	GUIDE,HEADRESTRAINT
24	85341-63J12-P4Z	Guide,headrestraint
24	85341-63J00-R8H	Guide,headrestraint
24	85341-63J11-R8H	GUIDE,HEADRESTRAINT
24	85341-63J12-R8H	Guide,headrestraint
25	85840-63J00-P4Z	ガイド,ヘッドレストレイント(グレー)
25	85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT
25	85840-63J12-P4Z	Guide Comp,headrestraint
25	85840-63J00-R8H	Guide comp,headrestraint
25	85840-63J10-R8H	GUIDE,HEADRESTRAINT
25	85840-63J11-R8H	GUIDE,HEADRESTRAINT
25	85840-63J12-R8H	Guide,headrestraint
26	85350-65J00-5PK	MODULE ASSY,SIDE A/B,R
26	85350-65J00-R8H	MODULE ASSY,A/B,R
27	85352-65J00-000	NUT
28	85353-65J00-000	SLEEVE
29	85351-62J00-000	FASTENER,SIDE AIR BAG MTG
30	85355-62J00-000	HARNESS ASSY,SIDE AIRBAG
31	09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap
32	86658-58J80-S9K	トリム,フロントクッション,リヤ
32	86658-58J90-S9K	TRIM,FR CUSHION RR
32	86658-58J80-S3R	Trim,fr cush rr(beige)
32	86658-58JA0-S3R	TRIM,FR CUSHION RR
33	01550-1016A-000	Bolt - Plug, oil gallery
34	09387-19001-000	RING
35	85680-63J20-DBS	Trim,fr cush,l(black)
35	85680-65JV4-DBS	TRIM,FR CUSHION,L
35	85680-65JV5-DBS	Trim,fr Cushion,l
35	85680-63J20-BFK	TRIM,FR CUSHION,L
35	85680-63J20-BFN	Trim,fr cush,l(beige)
36	85106-65J10-000	CUSHION S/ASSY,FR,L
37	86602-63J20-000	ADJUSTER S/ASSY,FR INSIDE,L
38	86762-63J20-000	RISER,LIFTER RR INS,L
39	86771-63J20-000	RISER,LIFTER FR INS,L
41	86604-65J10-000	ADJUSTER S/ASSY,FR OUTSIDE,L
42	86641-65J10-000	RISER,RR OUT
43	86760-65J10-000	RISER,LIFTER FR OUT,L
45	86692-65J00-000	HANDLE,FR SEAT ADJ,L
46	86717-63J30-000	BOLT,RISER
47	85711-63J00-5PK	KNOB,RCLNG,L
47	85711-63J00-R8H	KNOB,RCLNG,L
48	85713-63J20-5PK	Lever, seat lifter - Black
48	85713-65J00-5PK	LEVER,SEAT LIFTER,L
48	85713-63J20-R8H	Lever, seat lifter - Beige
48	85713-65J00-R8H	LEVER,SEAT LIFTER,L
49	85214-63J20-5PK	CAP,LIFTER LEVER
49	85214-63J20-R8H	CAP,LIFTER LEVER
50	09132-05043-000	SCREW(5X10)
51	85720-65J00-5PK	COVER,RCLNG OUTSIDE,L
51	85720-65J00-R8H	COVER,OUTSIDE,L
53	85741-63J00-5PK	COVER,FR RCLNG INSIDE,L
53	85741-63J00-R8H	COVER,RCLNG INSIDE,L
55	85743-63J20-000	COVER,RR RISER INSIDE,L
58	85880-63JG0-BFK	Trim,front back,l
58	85880-76KG0-BFK	TRIM,FR BACK,L
58	85880-63JG0-BFN	Trim,front back,l
58	85880-76KG0-BFN	TRIM,FR BACK,L
59	85306-63JG0-000	BACK S/ASSY,FR,L
59	85306-63JN0-000	BACK S/ASSY,FR,L
62	85850-65J00-5PK	MODULE ASSY,SIDE A/B,L
62	85850-65J00-R8H	MODULE ASSY,A/B,L
70	86401-65J00-NL5	Headrestraint assy
70	86401-65J01-NL5	HEADRESTRAINT ASSY
70	86401-65J02-NL5	Headrestraint Assy
70	86401-65J00-T6U	Headrestraint assy(black)
70	86401-76K00-T6U	HEADRESTRAINT ASSY
70	86401-65J00-S1K	Headrestraint assy(beige)
70	86401-76K00-S1K	HEADRESTRAINT ASSY
71	09119-08094-000	BOLT(8X25)
71	09119-08097-000	BOLT(8X25)
72	85354-59JC1-000	LABEL,SIDE AIRBAG

OEM	Part name	Category
01550-0816A-000	Bolt - Bolt, rear	Front seat (FRONT SEAT)
01550-1016A-000	Bolt - Plug, oil gallery	Front seat (FRONT SEAT)
03241-0512A-000	SCREW	Front seat (FRONT SEAT)
08316-1010A-000	NUT - Nut, kick starter	Front seat (FRONT SEAT)
09119-08094-000	BOLT(8X25)	Front seat (FRONT SEAT)
09119-08097-000	BOLT(8X25)	Front seat (FRONT SEAT)
09132-05043-000	SCREW(5X10)	Front seat (FRONT SEAT)
09387-19001-000	RING	Front seat (FRONT SEAT)
09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap	Front seat (FRONT SEAT)
85105-65J40-000	CUSHION S/ASSY,FR,R	Front seat (FRONT SEAT)
85106-65J10-000	CUSHION S/ASSY,FR,L	Front seat (FRONT SEAT)
85180-63J00-BFK	TRIM,FR CUSHION	Front seat (FRONT SEAT)
85180-63J00-BFN	Trim,fr cush(beige)	Front seat (FRONT SEAT)
85180-63J00-DBS	Trim,fr cush(black)	Front seat (FRONT SEAT)
85180-65JV3-DBS	TRIM,FR CUSHION	Front seat (FRONT SEAT)
85211-63J00-5PK	KNOB,RCLNG,R	Front seat (FRONT SEAT)
85211-63J00-R8H	KNOB,RCLNG,R	Front seat (FRONT SEAT)
85214-63J20-5PK	CAP,LIFTER LEVER	Front seat (FRONT SEAT)
85214-63J20-R8H	CAP,LIFTER LEVER	Front seat (FRONT SEAT)
85220-65J00-5PK	COVER,RCLNG OUTSIDE,R	Front seat (FRONT SEAT)
85220-65J00-R8H	COVER,RCLNG OUTSIDE,R	Front seat (FRONT SEAT)
85222-63J00-5PK	COVER,FR BACK FRAME,R	Front seat (FRONT SEAT)
85222-63J00-R8H	COVER,FR BACK FRAME,R	Front seat (FRONT SEAT)
85225-74G00-P4Z	CLIP,	Front seat (FRONT SEAT)
85241-63J00-5PK	COVER,FR RCLNG INSIDE,R	Front seat (FRONT SEAT)
85241-63J00-R8H	COVER,FR RCLNG INSIDE,R	Front seat (FRONT SEAT)
85242-63J00-5PK	COVER,FR BACK FRAME,L	Front seat (FRONT SEAT)
85242-63J00-R8H	COVER,FR BACK FRAME,L	Front seat (FRONT SEAT)
85305-63JG0-000	BACK S/ASSY,FR,R	Front seat (FRONT SEAT)
85305-63JN0-000	BACK S/ASSY,FR,R	Front seat (FRONT SEAT)
85306-63JG0-000	BACK S/ASSY,FR,L	Front seat (FRONT SEAT)
85306-63JN0-000	BACK S/ASSY,FR,L	Front seat (FRONT SEAT)
85341-63J00-P4Z	ガイド,ヘッドレストレイント(グレー)	Front seat (FRONT SEAT)
85341-63J00-R8H	Guide,headrestraint	Front seat (FRONT SEAT)
85341-63J11-P4Z	GUIDE,HEADRESTRAINT	Front seat (FRONT SEAT)
85341-63J11-R8H	GUIDE,HEADRESTRAINT	Front seat (FRONT SEAT)
85341-63J12-P4Z	Guide,headrestraint	Front seat (FRONT SEAT)
85341-63J12-R8H	Guide,headrestraint	Front seat (FRONT SEAT)
85350-65J00-5PK	MODULE ASSY,SIDE A/B,R	Front seat (FRONT SEAT)
85350-65J00-R8H	MODULE ASSY,A/B,R	Front seat (FRONT SEAT)
85351-62J00-000	FASTENER,SIDE AIR BAG MTG	Front seat (FRONT SEAT)
85352-65J00-000	NUT	Front seat (FRONT SEAT)
85353-65J00-000	SLEEVE	Front seat (FRONT SEAT)
85354-59JC1-000	LABEL,SIDE AIRBAG	Front seat (FRONT SEAT)
85355-62J00-000	HARNESS ASSY,SIDE AIRBAG	Front seat (FRONT SEAT)
85380-63J60-DBS	Trim,front back	Front seat (FRONT SEAT)
85380-63JG0-BFK	Trim,front back,r	Front seat (FRONT SEAT)
85380-63JG0-BFN	Trim,front back,r	Front seat (FRONT SEAT)
85380-65JV2-DBS	TRIM,FR BACK,R	Front seat (FRONT SEAT)
85380-76KG0-BFK	TRIM,FR BACK,R	Front seat (FRONT SEAT)
85380-76KG0-BFN	TRIM,FR BACK,R	Front seat (FRONT SEAT)
85680-63J20-BFK	TRIM,FR CUSHION,L	Front seat (FRONT SEAT)
85680-63J20-BFN	Trim,fr cush,l(beige)	Front seat (FRONT SEAT)
85680-63J20-DBS	Trim,fr cush,l(black)	Front seat (FRONT SEAT)
85680-65JV4-DBS	TRIM,FR CUSHION,L	Front seat (FRONT SEAT)
85680-65JV5-DBS	Trim,fr Cushion,l	Front seat (FRONT SEAT)
85711-63J00-5PK	KNOB,RCLNG,L	Front seat (FRONT SEAT)
85711-63J00-R8H	KNOB,RCLNG,L	Front seat (FRONT SEAT)
85713-63J20-5PK	Lever, seat lifter - Black	Front seat (FRONT SEAT)
85713-63J20-R8H	Lever, seat lifter - Beige	Front seat (FRONT SEAT)
85713-65J00-5PK	LEVER,SEAT LIFTER,L	Front seat (FRONT SEAT)
85713-65J00-R8H	LEVER,SEAT LIFTER,L	Front seat (FRONT SEAT)
85720-65J00-5PK	COVER,RCLNG OUTSIDE,L	Front seat (FRONT SEAT)
85720-65J00-R8H	COVER,OUTSIDE,L	Front seat (FRONT SEAT)
85741-63J00-5PK	COVER,FR RCLNG INSIDE,L	Front seat (FRONT SEAT)
85741-63J00-R8H	COVER,RCLNG INSIDE,L	Front seat (FRONT SEAT)
85743-63J20-000	COVER,RR RISER INSIDE,L	Front seat (FRONT SEAT)
85840-63J00-P4Z	ガイド,ヘッドレストレイント(グレー)	Front seat (FRONT SEAT)
85840-63J00-R8H	Guide comp,headrestraint	Front seat (FRONT SEAT)
85840-63J10-R8H	GUIDE,HEADRESTRAINT	Front seat (FRONT SEAT)
85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT	Front seat (FRONT SEAT)
85840-63J11-R8H	GUIDE,HEADRESTRAINT	Front seat (FRONT SEAT)
85840-63J12-P4Z	Guide Comp,headrestraint	Front seat (FRONT SEAT)
85840-63J12-R8H	Guide,headrestraint	Front seat (FRONT SEAT)
85850-65J00-5PK	MODULE ASSY,SIDE A/B,L	Front seat (FRONT SEAT)
85850-65J00-R8H	MODULE ASSY,A/B,L	Front seat (FRONT SEAT)
85880-63JG0-BFK	Trim,front back,l	Front seat (FRONT SEAT)
85880-63JG0-BFN	Trim,front back,l	Front seat (FRONT SEAT)
85880-76KG0-BFK	TRIM,FR BACK,L	Front seat (FRONT SEAT)
85880-76KG0-BFN	TRIM,FR BACK,L	Front seat (FRONT SEAT)
86401-65J00-NL5	Headrestraint assy	Front seat (FRONT SEAT)
86401-65J00-S1K	Headrestraint assy(beige)	Front seat (FRONT SEAT)
86401-65J00-T6U	Headrestraint assy(black)	Front seat (FRONT SEAT)
86401-65J01-NL5	HEADRESTRAINT ASSY	Front seat (FRONT SEAT)
86401-65J02-NL5	Headrestraint Assy	Front seat (FRONT SEAT)
86401-76K00-S1K	HEADRESTRAINT ASSY	Front seat (FRONT SEAT)
86401-76K00-T6U	HEADRESTRAINT ASSY	Front seat (FRONT SEAT)
86601-63J00-000	ADJUSTER S/ASSY,FR INSIDE,R	Front seat (FRONT SEAT)
86602-63J20-000	ADJUSTER S/ASSY,FR INSIDE,L	Front seat (FRONT SEAT)
86603-65J00-000	ADJUSTER S/ASSY,FR OUTSIDE,R	Front seat (FRONT SEAT)
86604-65J10-000	ADJUSTER S/ASSY,FR OUTSIDE,L	Front seat (FRONT SEAT)
86641-65J00-000	RISER,RR OUT	Front seat (FRONT SEAT)
86641-65J10-000	RISER,RR OUT	Front seat (FRONT SEAT)
86658-58J80-S3R	Trim,fr cush rr(beige)	Front seat (FRONT SEAT)
86658-58J80-S9K	トリム,フロントクッション,リヤ	Front seat (FRONT SEAT)
86658-58J90-S9K	TRIM,FR CUSHION RR	Front seat (FRONT SEAT)
86658-58JA0-S3R	TRIM,FR CUSHION RR	Front seat (FRONT SEAT)
86691-65J00-000	HANDLE,FR SEAT ADJ	Front seat (FRONT SEAT)
86692-65J00-000	HANDLE,FR SEAT ADJ,L	Front seat (FRONT SEAT)
86710-65J00-000	RISER,FR OUT,R	Front seat (FRONT SEAT)
86712-63J00-000	RISER,RR INS,R	Front seat (FRONT SEAT)
86717-63J10-000	BOLT,RR RISER INSIDE	Front seat (FRONT SEAT)
86717-63J30-000	BOLT,RISER	Front seat (FRONT SEAT)
86719-63J10-000	BOLT,RR RISER OUTSIDE	Front seat (FRONT SEAT)
86720-63J00-000	RISER,FR INS,R	Front seat (FRONT SEAT)
86760-65J10-000	RISER,LIFTER FR OUT,L	Front seat (FRONT SEAT)
86762-63J20-000	RISER,LIFTER RR INS,L	Front seat (FRONT SEAT)
86771-63J20-000	RISER,LIFTER FR INS,L	Front seat (FRONT SEAT)
