JB627W

Suzuki GRAND-VITARA · 3,278 parts · 124 categories
JB627W ×

← Back to categories

3,278 items

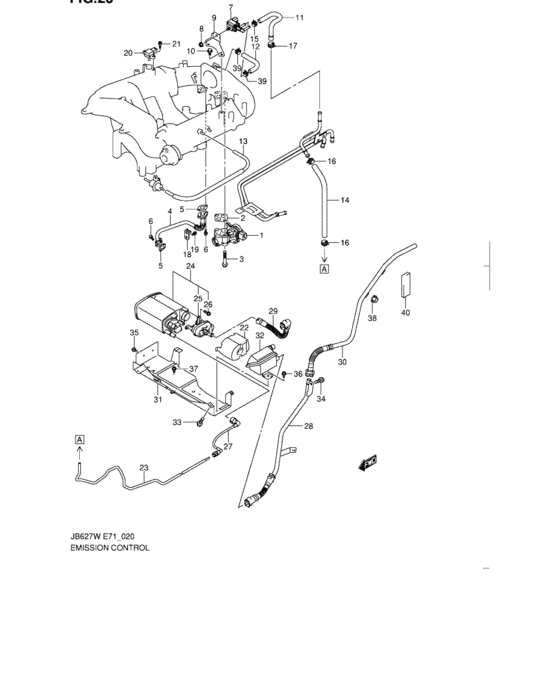

Emission control (EMISSION CONTROL) 45
#OEMPart name
1 18111-77E02-000 VALVE,EGR
2 18529-77E01-000 GASKET,EGR VALVE
3 01550-0850A-000 Bolt
4 18530-67D10-000 PIPE,EGR
5 18533-77E00-000 GASKET,EGR PIPE
6 01550-0616A-000 Bolt
7 18117-65J00-000 VALVE,EVAP CSTR PURGE
8 08316-1006A-000 NUT
9 18417-66J00-000 BRACKET,PURGE VALVE
10 01550-0612A-000 Bolt
11 18562-66J00-000 HOSE,PURGE PIPE TO VSV
12 09355-54115-600 HOSE(5.4X11.4X600) - Hose, vacuum
12 09355-54128-600 Hose,5.4x12.2x600
12 09355-56128-600 HOSE(5.6X12.4X600)
13 18419-52D00-000 HOSE,VAC RGLTR TO PIPE
14 09355-70129-600 HOSE(7X12X600) - Hose, fuel (pump to separator)
15 09401-10409-000 CLIP
16 09401-11419-000 CLIP
17 09401-12404-000 CLIP
18 18536-77EA0-000 CLAMP,EGR PIPE
20 18590-72F21-000 SENSOR,PRESSURE
20 18590-68H00-000 SENSOR,PRESSURE - Sensor, pressure
21 07130-05163-000 Bolt - Screw
21 07130-0516A-000 Bolt
22 18220-52D00-000 COVER,EVAP LEAK VALVE
23 18351-65J10-000 Pipe, purge
23 18351-65J12-000 PIPE,PURGE
23 18351-65J11-000 Pipe, purge
24 18560-66J00-000 CANISTER ASSY
25 18210-52D00-000 VALVE ASSY,EVAP LEAK
26 02162-0620A-000 Bolt
26 02162-0620C-000 SCREW
27 18561-65J10-000 PIPE,PURGE(CSTR TO PIPE)
28 18566-65J10-000 PIPE,CSTR AIR SUCTION
29 18567-65J10-000 PIPE,SUCTION CSTR OUTLET
30 18569-66J00-000 Pipe, cstr air suction
30 18565-65J20-000 CLAMP,SUCTION PIPE
30 18569-66J01-000 PIPE,CSTR AIR SUCTION
31 18570-65J10-000 BRACKET,CANISTER
32 18581-65J10-000 FILTER,CSTR AIR SUCTION
33 01550-0816A-000 Bolt - Bolt, rear
35 02162-0612A-000 SCREW - Bolt, bracket
36 02162-0616A-000 SCREW
36 02162-0616B-000 SCREW - Bolt, adjust
40 18568-65J20-000 PACKING,EVAP SUCTION PIPE
