| 02162-0612A-000 |
SCREW - Bolt, bracket |

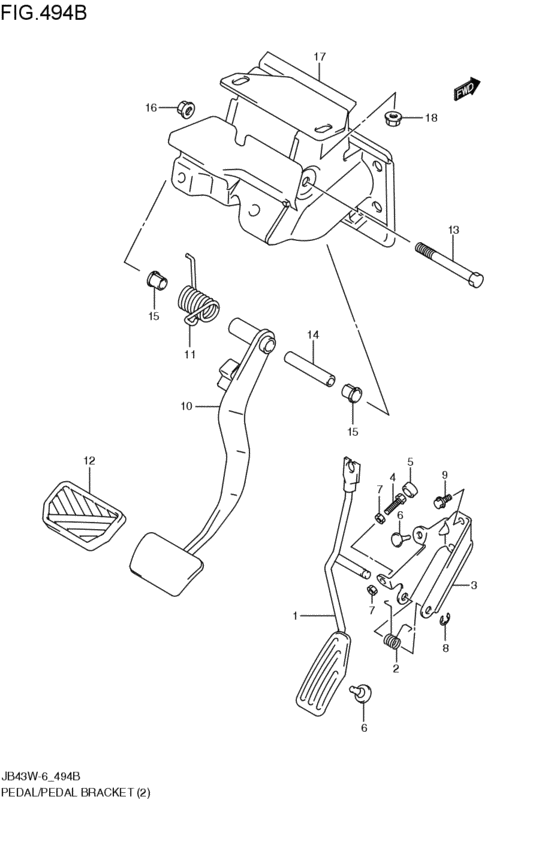

pedal / pedal bracket (AT; 2008-03-01~) |
| 08310-0006A-000 |
NUT |
pedal / pedal bracket (AT; 2008-03-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
pedal / pedal bracket (AT; 2008-03-01~) |
| 08332-1107A-000 |
E RING |
pedal / pedal bracket (AT; 2008-03-01~) |
| 09100-06055-000 |
BOLT(6X25) |
pedal / pedal bracket (AT; 2008-03-01~) |
| 09100-10226-000 |
BOLT(10X85) |
pedal / pedal bracket (AT; 2008-03-01~) |
| 09159-08135-000 |
NUT |
pedal / pedal bracket (AT; 2008-03-01~) |
| 09180-10121-000 |
SPACER(10.1X13X73.8) |
pedal / pedal bracket (AT; 2008-03-01~) |
| 09251-09002-000 |
CAP(OD:13.6) |
pedal / pedal bracket (AT; 2008-03-01~) |
| 09251-09008-000 |
Cap(Od:13.6) |
pedal / pedal bracket (AT; 2008-03-01~) |
| 09307-13005-000 |
BUSH - Bushing |
pedal / pedal bracket (AT; 2008-03-01~) |
| 09321-06026-000 |
CUSHION |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49410-81A00-000 |
PEDAL,ACCELERATOR |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49491-81A01-000 |
Spring,accelerator pedal |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49491-81A02-000 |
SPRING,ACCELERATOR PEDAL |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49511-81A00-000 |
BRACKET,ACCELERATOR |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49610-81AB0-000 |
Pedal,brake |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49610-81AB1-000 |
PEDAL,BRAKE |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49671-57M00-000 |
SPACER,BRAKE PEDAL SHAFT |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49691-81A00-000 |
SPRING,BRAKE PEDAL |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49710-81AA0-000 |
Bracket,pedal |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49710-81AA1-000 |
BRACKET,PEDAL |
pedal / pedal bracket (AT; 2008-03-01~) |
| 49751-58J10-000 |
PAD,PEDAL |
pedal / pedal bracket (AT; 2008-03-01~) |
