Search › Model › JB43W
JB43W

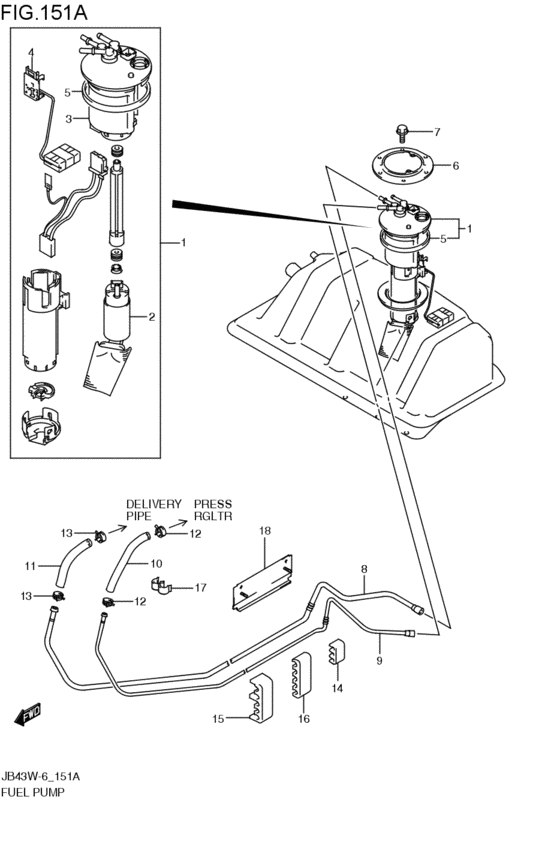

Fuel Pump (2008-03-01~) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 15100-81813-000 | PUMP SET,FUEL |
| 2 | 15110-81A00-000 | PUMP ASSY,FUEL |
| 3 | 15310-81A02-000 | FILTER ASSY,FUEL |
| 4 | 34810-81A00-000 | GAUGE ASSY,FUEL LEVEL |
| 5 | 15111-50G01-000 | GASKET,FUEL PUMP |
| 6 | 15121-50G00-000 | PLATE,FUEL PUMP |
| 7 | 01550-0610A-000 | Bolt |
| 8 | 15820-76J00-000 | PIPE,FUEL FEED |
| 9 | 15860-76J00-000 | PIPE,FUEL RTN |
| 10 | 09356-55117-600 | HOSE(5.5X11.5X600) - Hose, fuel rtn (body side) |
| 11 | 09356-75147-600 | HOSE(7.5X14.3X600) - Hose, fuel (body side) |
| 12 | 09401-10409-000 | CLIP |
| 13 | 09401-13419-000 | CLIP |
| 14 | 15893-60A11-000 | CLAMP,FUEL PIPE |
| 15 | 15895-56B11-000 | CLAMP,FUEL PIPE |
| 16 | 15895-60A11-000 | CLAMP,FUEL PIPE |
| 17 | 09408-00083-000 | CLAMP |
| 18 | 15873-76J00-000 | PROTECTOR,FUEL PIPE |
| OEM | Part name | Category |
|---|---|---|
| 01550-0610A-000 | Bolt | Fuel Pump (2008-03-01~) |
| 09356-55117-600 | HOSE(5.5X11.5X600) - Hose, fuel rtn (body side) | Fuel Pump (2008-03-01~) |
| 09356-75147-600 | HOSE(7.5X14.3X600) - Hose, fuel (body side) | Fuel Pump (2008-03-01~) |
| 09401-10409-000 | CLIP | Fuel Pump (2008-03-01~) |
| 09401-13419-000 | CLIP | Fuel Pump (2008-03-01~) |
| 09408-00083-000 | CLAMP | Fuel Pump (2008-03-01~) |
| 15100-81813-000 | PUMP SET,FUEL | Fuel Pump (2008-03-01~) |
| 15110-81A00-000 | PUMP ASSY,FUEL | Fuel Pump (2008-03-01~) |
| 15111-50G01-000 | GASKET,FUEL PUMP | Fuel Pump (2008-03-01~) |
| 15121-50G00-000 | PLATE,FUEL PUMP | Fuel Pump (2008-03-01~) |
| 15310-81A02-000 | FILTER ASSY,FUEL | Fuel Pump (2008-03-01~) |
| 15820-76J00-000 | PIPE,FUEL FEED | Fuel Pump (2008-03-01~) |
| 15860-76J00-000 | PIPE,FUEL RTN | Fuel Pump (2008-03-01~) |
| 15873-76J00-000 | PROTECTOR,FUEL PIPE | Fuel Pump (2008-03-01~) |
| 15893-60A11-000 | CLAMP,FUEL PIPE | Fuel Pump (2008-03-01~) |
| 15895-56B11-000 | CLAMP,FUEL PIPE | Fuel Pump (2008-03-01~) |
| 15895-60A11-000 | CLAMP,FUEL PIPE | Fuel Pump (2008-03-01~) |
| 34810-81A00-000 | GAUGE ASSY,FUEL LEVEL | Fuel Pump (2008-03-01~) |
