JB43W

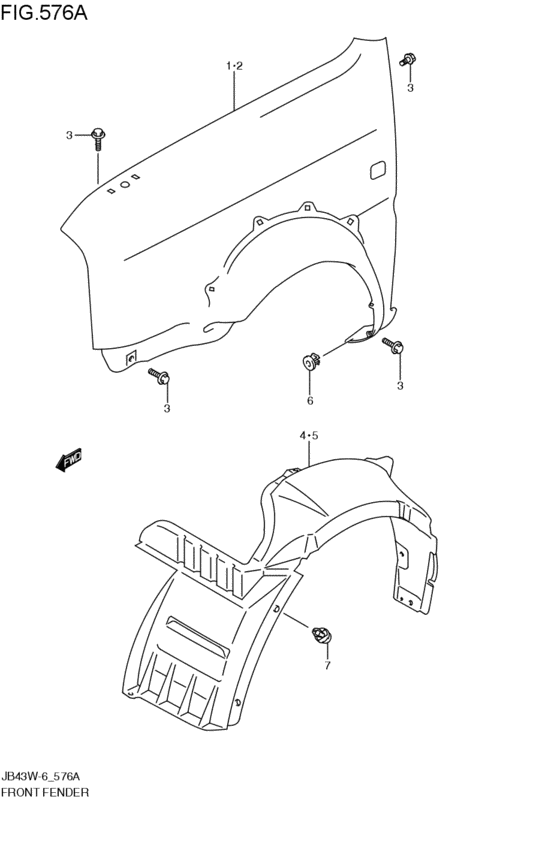

front fender (2008-03-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 58611-81A00-000 | PANEL,FR FENDER,R |
| 2 | 58811-81A00-000 | PANEL,FR FENDER,L |
| 3 | 01550-0612A-000 | Bolt |
| 4 | 72481-84A00-000 | LINING,FR FENDER,R |
| 5 | 72482-84A00-000 | LINING,FR FENDER,L |
| 6 | 09148-06007-000 | NUT |
| 7 | 09409-07340-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | front fender (2008-03-01~) |
| 09148-06007-000 | NUT | front fender (2008-03-01~) |
| 09409-07340-000 | CLIP | front fender (2008-03-01~) |
| 58611-81A00-000 | PANEL,FR FENDER,R | front fender (2008-03-01~) |
| 58811-81A00-000 | PANEL,FR FENDER,L | front fender (2008-03-01~) |
| 72481-84A00-000 | LINING,FR FENDER,R | front fender (2008-03-01~) |
| 72482-84A00-000 | LINING,FR FENDER,L | front fender (2008-03-01~) |
