JB43W

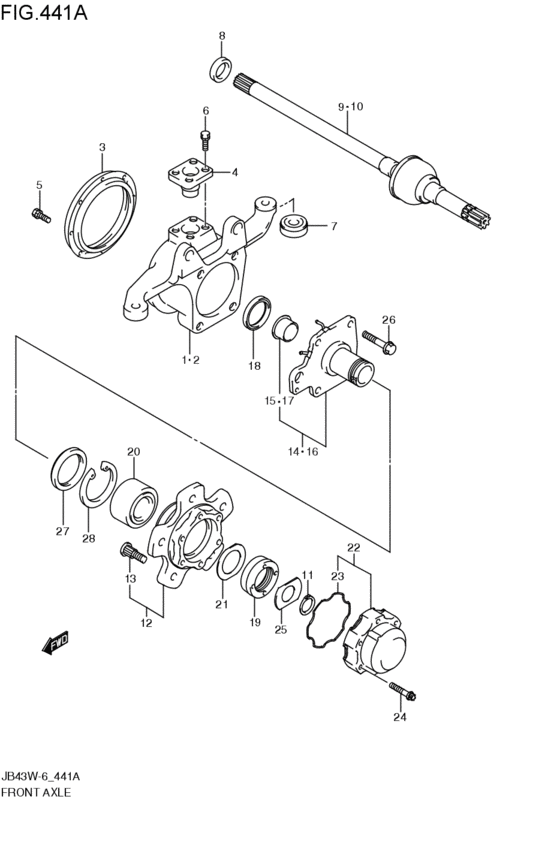

front axle (2008-03-01~) 31
| # | OEM | Part name |
|---|---|---|
| 1 | 45111-81A20-000 | KNUCKLE,STEERING,R |
| 2 | 45151-81A20-000 | KNUCKLE,STEERING,L |
| 3 | 45120-81A02-000 | Seal assy,knuckle |
| 3 | 45120-81A04-000 | SEAL ASSY,KNUCKLE |
| 4 | 45610-63002-000 | PIN ASSY,KING |
| 5 | 45626-81A00-000 | BOLT,KNUCKLE SEAL |
| 6 | 09117-08050-000 | BOLT(8X20) |
| 7 | 09265-15006-000 | BEARING(15X42X14.25) |
| 8 | 09283-26016-000 | SEAL,OIL(26X38X8) |
| 9 | 44101-84A00-000 | JOINT ASSY,FR AXLE SHAFT,R |
| 10 | 44102-84A00-000 | JOINT ASSY,FR AXLE SHAFT,L |
| 11 | 09380-26004-000 | CIRCLIP |
| 11 | 94412-31J01-YMC | Cowling,body Lower |
| 12 | 43420-76840-000 | HUB SET,FR WHL |
| 12 | 43420-77830-000 | HUB SETFR WHEEL |
| 13 | 09119-12012-000 | BOLT(12X38) |
| 14 | 43440-81A20-000 | SPINDLE,FR WHEEL,R |
| 15 | 43445-60A11-000 | BUSHING,FR SPINDLE |
| 16 | 43440-81A30-000 | SPINDLE,FR WHEEL,L |
| 18 | 43446-82CB0-000 | SEAL,FR WHEEL SPINDLE |
| 19 | 43461-82CB0-000 | NUT,FR WHL BRG LOCK |
| 20 | 43462-84A00-000 | BEARING,FR WHEEL |
| 21 | 43465-60A00-000 | WASHER,FR WHEEL BRG |
| 22 | 43810-76J01-000 | Hub assy,air locking |
| 22 | 43810-76J02-000 | HUB ASSY,AIR LOCKING |
| 23 | 43838-82CB1-000 | GASKET,AIR LOCKING HUB |
| 24 | 43811-81A00-000 | BOLT,AIR LOCKING HUB |
| 25 | 44182-82CB0-000 | WASHER,FR SPINDLE THRUST |
| 26 | 09117-10057-000 | BOLT(10X25) |
| 27 | 09283-54001-000 | SEAL,OIL(54X69X7) |
| 28 | 09381-68001-000 | CIRCLIP |
| OEM | Part name | Category |
|---|---|---|
| 09117-08050-000 | BOLT(8X20) | front axle (2008-03-01~) |
| 09117-10057-000 | BOLT(10X25) | front axle (2008-03-01~) |
| 09119-12012-000 | BOLT(12X38) | front axle (2008-03-01~) |
| 09265-15006-000 | BEARING(15X42X14.25) | front axle (2008-03-01~) |
| 09283-26016-000 | SEAL,OIL(26X38X8) | front axle (2008-03-01~) |
| 09283-54001-000 | SEAL,OIL(54X69X7) | front axle (2008-03-01~) |
| 09380-26004-000 | CIRCLIP | front axle (2008-03-01~) |
| 09381-68001-000 | CIRCLIP | front axle (2008-03-01~) |
| 43420-76840-000 | HUB SET,FR WHL | front axle (2008-03-01~) |
| 43420-77830-000 | HUB SETFR WHEEL | front axle (2008-03-01~) |
| 43440-81A20-000 | SPINDLE,FR WHEEL,R | front axle (2008-03-01~) |
| 43440-81A30-000 | SPINDLE,FR WHEEL,L | front axle (2008-03-01~) |
| 43445-60A11-000 | BUSHING,FR SPINDLE | front axle (2008-03-01~) |
| 43446-82CB0-000 | SEAL,FR WHEEL SPINDLE | front axle (2008-03-01~) |
| 43461-82CB0-000 | NUT,FR WHL BRG LOCK | front axle (2008-03-01~) |
| 43462-84A00-000 | BEARING,FR WHEEL | front axle (2008-03-01~) |
| 43465-60A00-000 | WASHER,FR WHEEL BRG | front axle (2008-03-01~) |
| 43810-76J01-000 | Hub assy,air locking | front axle (2008-03-01~) |
| 43810-76J02-000 | HUB ASSY,AIR LOCKING | front axle (2008-03-01~) |
| 43811-81A00-000 | BOLT,AIR LOCKING HUB | front axle (2008-03-01~) |
| 43838-82CB1-000 | GASKET,AIR LOCKING HUB | front axle (2008-03-01~) |
| 44101-84A00-000 | JOINT ASSY,FR AXLE SHAFT,R | front axle (2008-03-01~) |
| 44102-84A00-000 | JOINT ASSY,FR AXLE SHAFT,L | front axle (2008-03-01~) |
| 44182-82CB0-000 | WASHER,FR SPINDLE THRUST | front axle (2008-03-01~) |
| 45111-81A20-000 | KNUCKLE,STEERING,R | front axle (2008-03-01~) |
| 45120-81A02-000 | Seal assy,knuckle | front axle (2008-03-01~) |
| 45120-81A04-000 | SEAL ASSY,KNUCKLE | front axle (2008-03-01~) |
| 45151-81A20-000 | KNUCKLE,STEERING,L | front axle (2008-03-01~) |
| 45610-63002-000 | PIN ASSY,KING | front axle (2008-03-01~) |
| 45626-81A00-000 | BOLT,KNUCKLE SEAL | front axle (2008-03-01~) |
| 94412-31J01-YMC | Cowling,body Lower | front axle (2008-03-01~) |
